Radiator Cooling Fan Control Module: Testing and Inspection

FAN CONTROL MODULE INSPECTION [L3, AJ]
1. Remove the two bolts from the fan control module with the connectors still connected.
2. Start and warm up the engine.
3. Monitor the engine coolant temperature with the M-MDS.

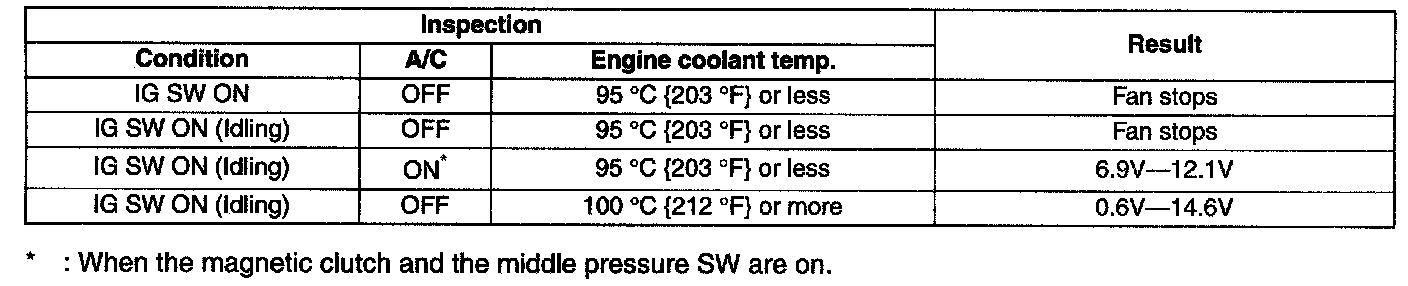

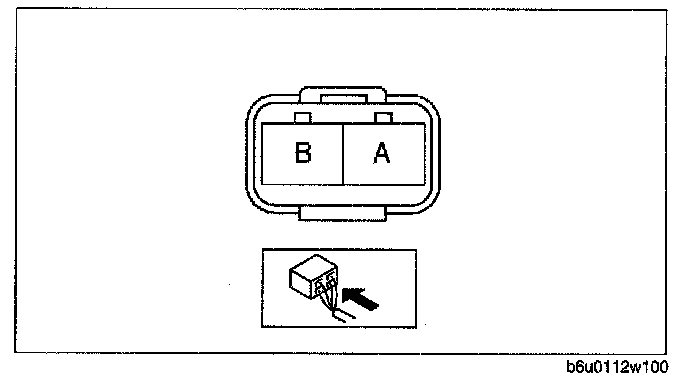

4. Measure the voltage at the terminal B of fan control module connector (2 terminals) as shown in the table.
^ If there is any malfunction, replace the fan control module.
