Oil Pump, Engine

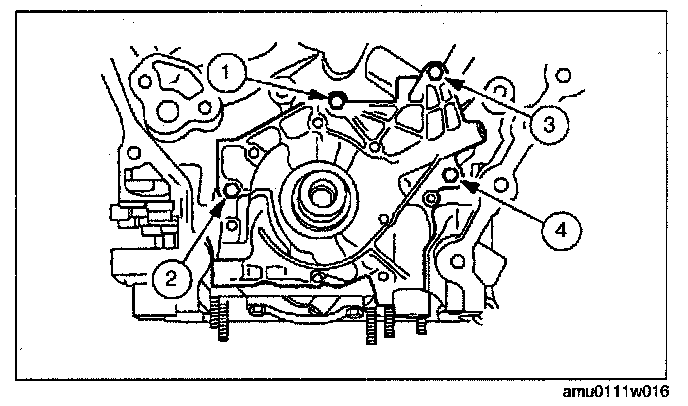

Oil Pump (AJ)





Tighten the oil pump bolts in the order shown in the figure.
Tightening torque 8 - 12 Nm (82 - 122 kgf.cm, 71 - 106 in. lbf)

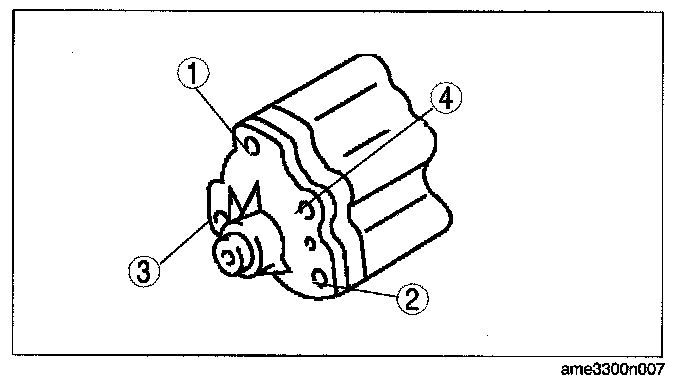

Oil Pump (L3)





Tighten the oil pump bolts in two steps in the order shown in the figure.
Tightening torque
Step 1 8 - 12 Nm (82 - 122 kgf.cm, 71 - 105 in. lbf)
Step 2 17 - 23 Nm (1.8 - 2.3 kgf.m, 12.6 - 16.9 ft. lbf)
