Water Pump

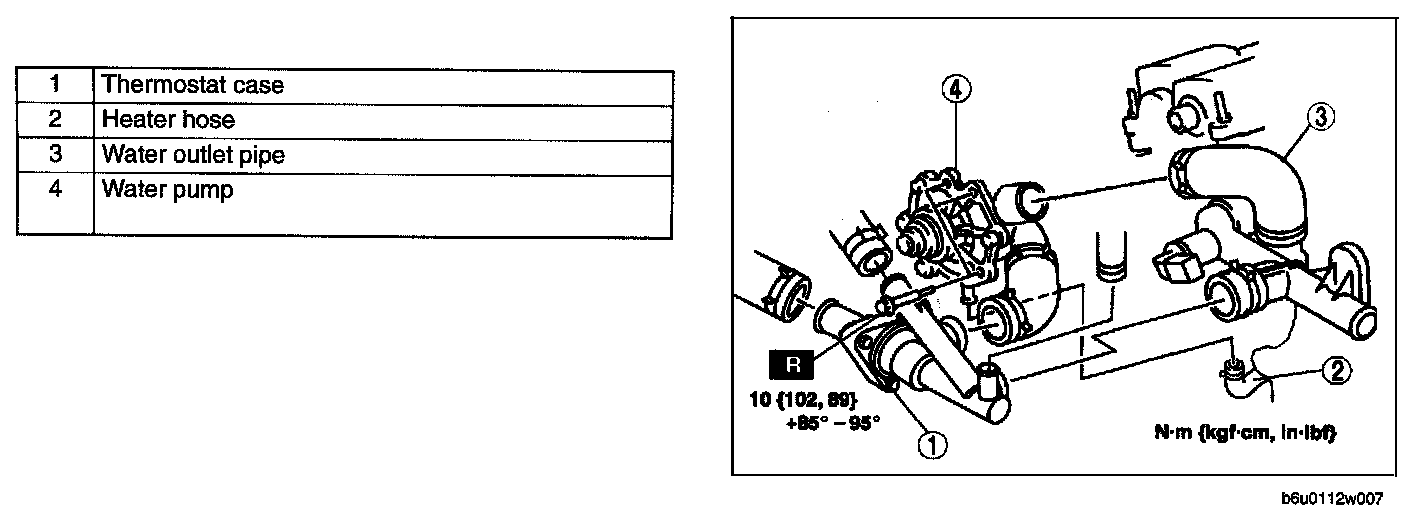

Water Pump (L3)





Water Pump (AJ)





Tighten the bolts to the specified torque, then tighten them further 85° - 95°.
Tightening torque 10 Nm (102 kgf.cm, 89 in.lbf)
