System Specifications

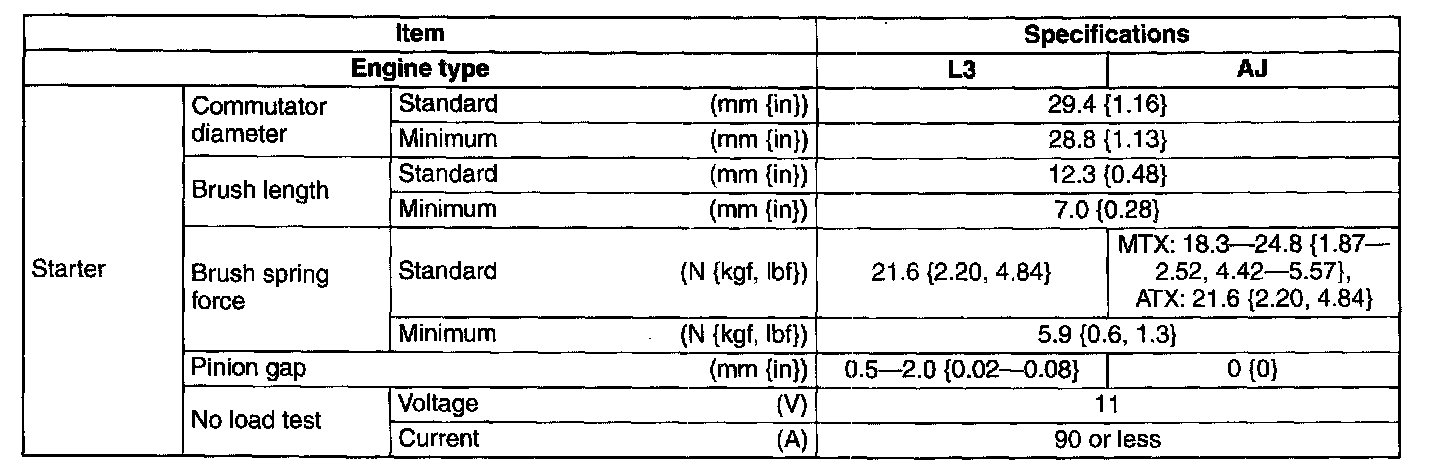

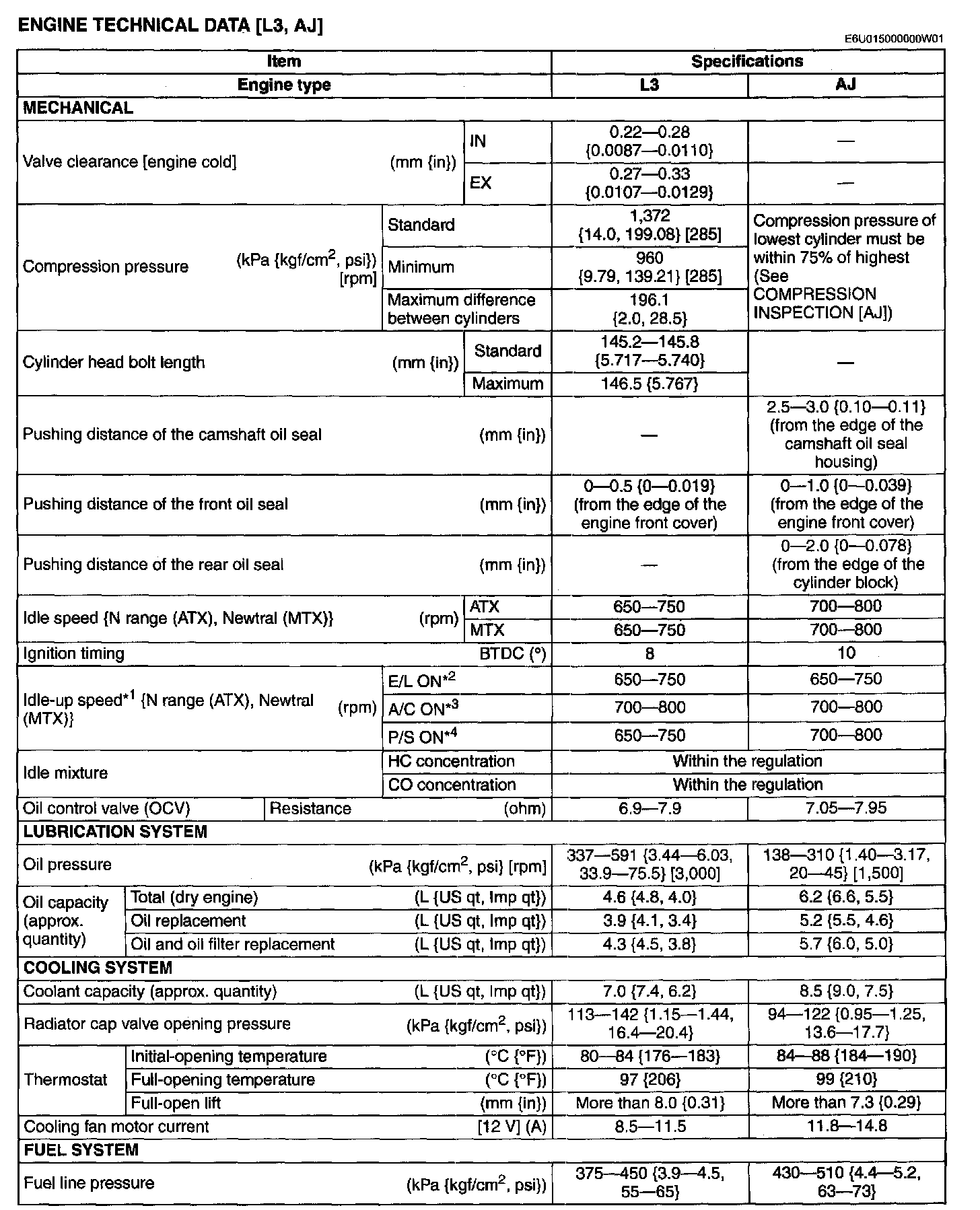

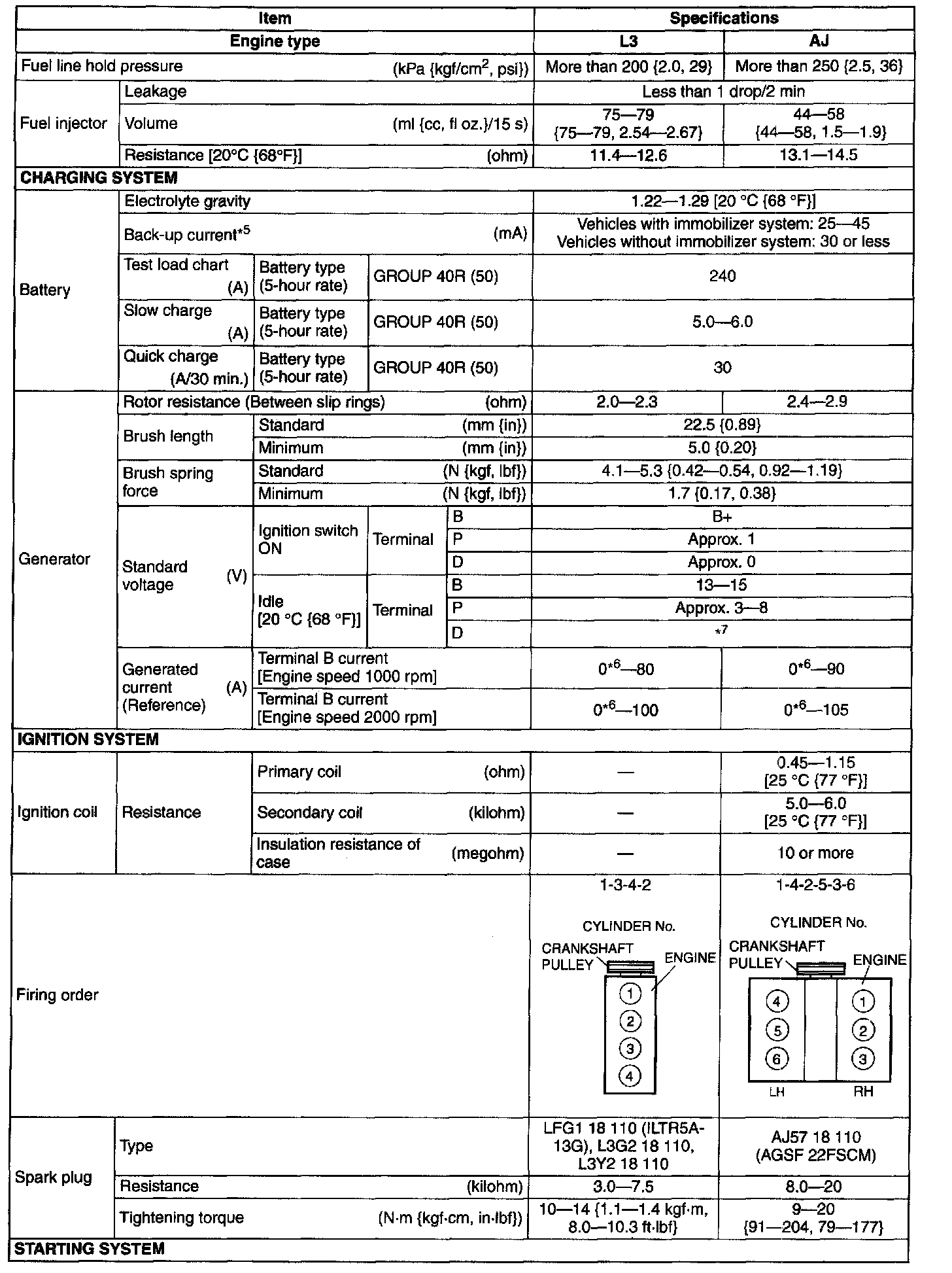

ENGINE TECHNICAL DATA [L3, AJ]

ENGINE TECHNICAL DATA [L3, AJ]:




ENGINE TECHNICAL DATA [L3, AJ]:




ENGINE TECHNICAL DATA [L3, AJ]:
