[FS5A-EL]

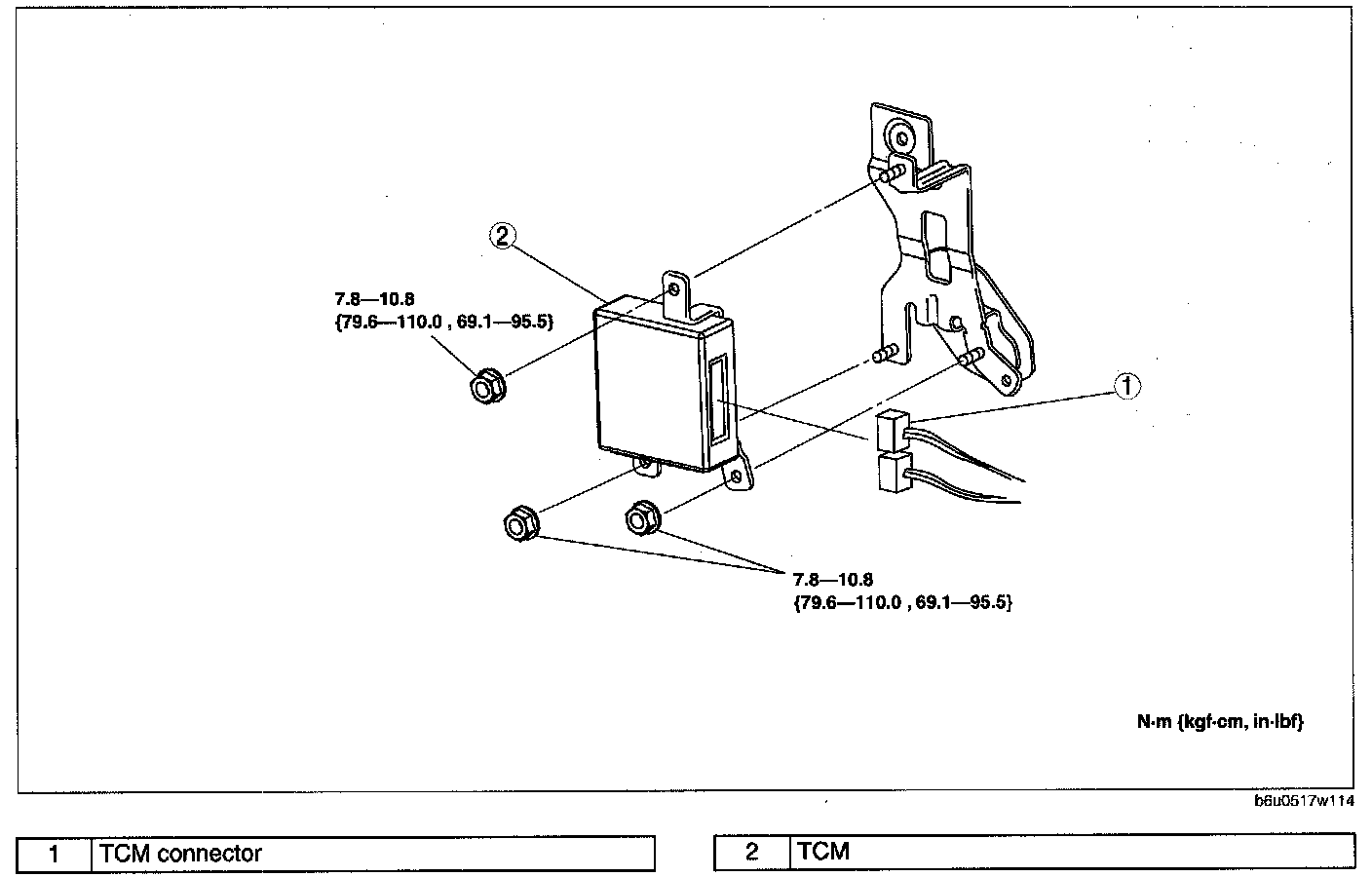

TCM REMOVAL/INSTALLATION [FS5A-EL]
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
