Components

Components

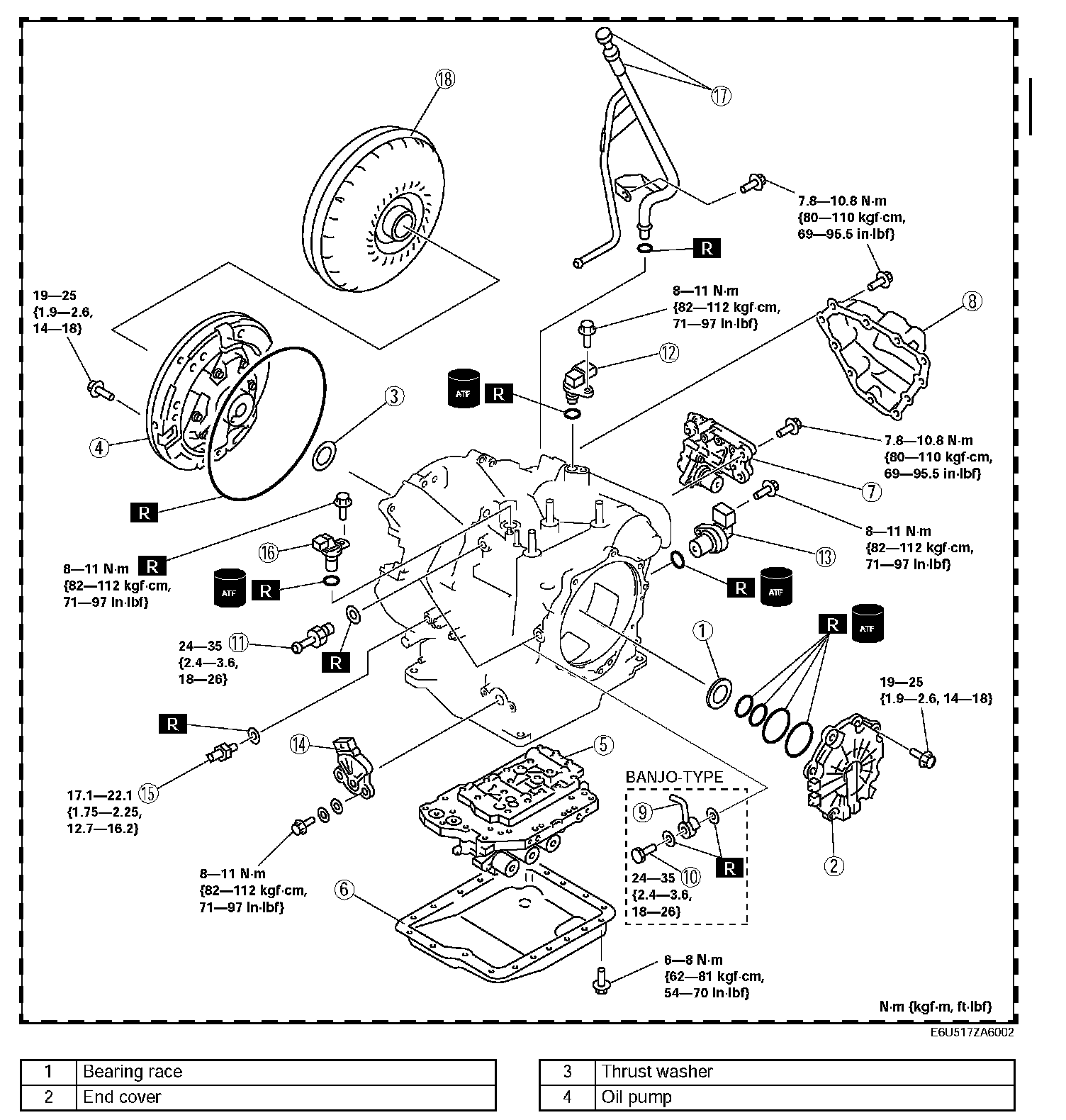

Automatic Transaxle (Part 1):

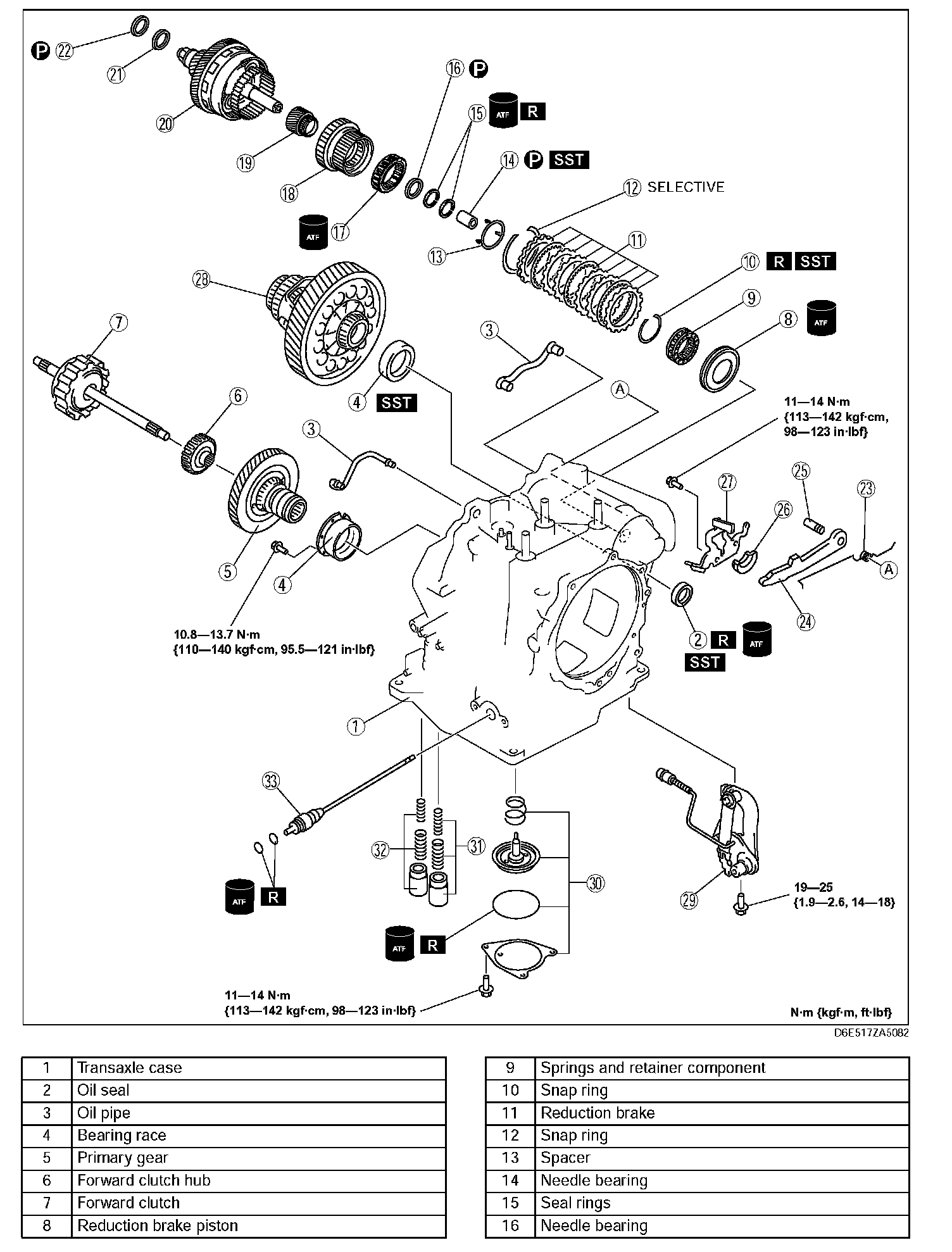

Automatic Transaxle (Part 2):

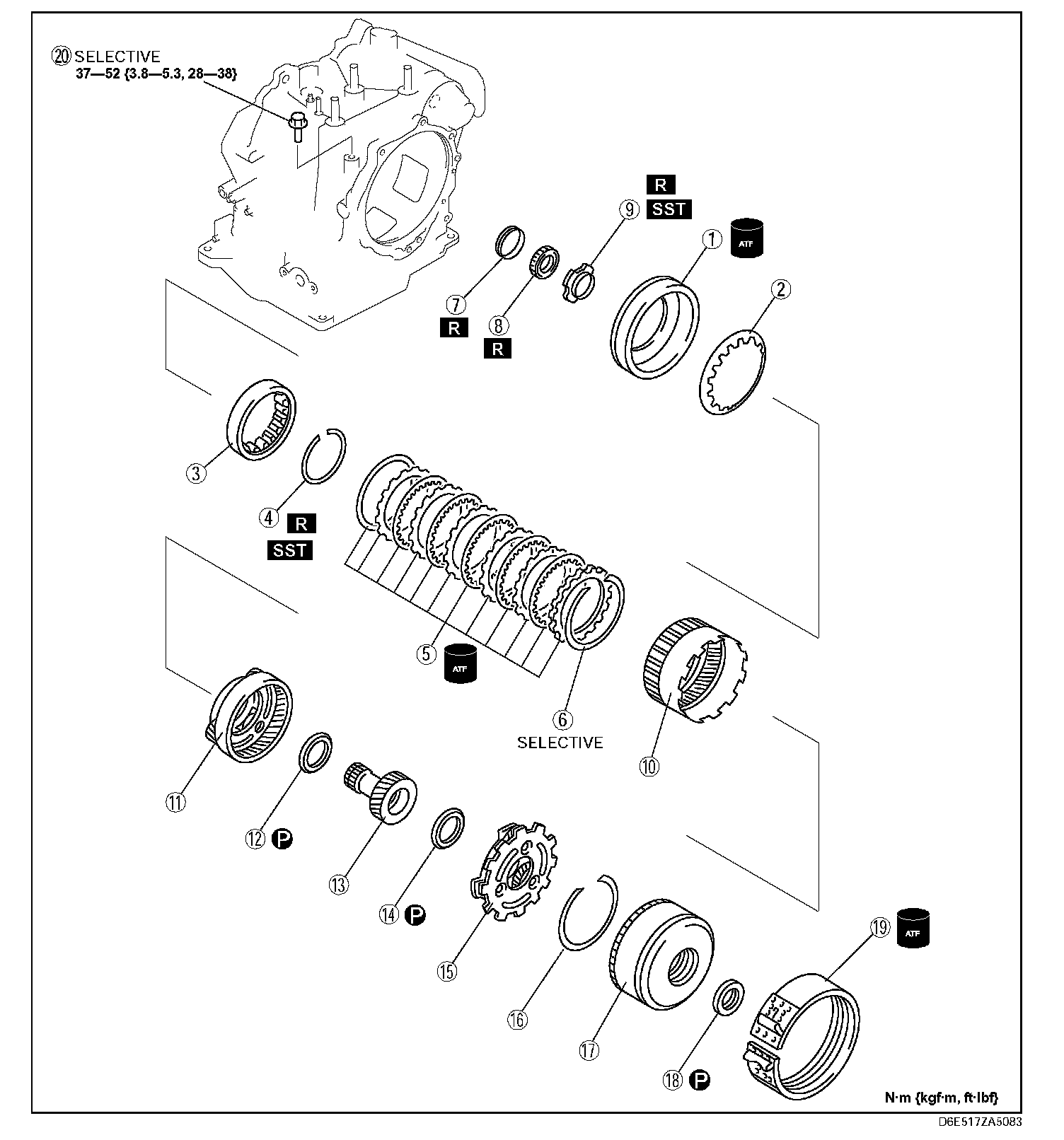

Automatic Transaxle (Part 3):




Automatic Transaxle (Part 3):




Automatic Transaxle (Part 4):




Automatic Transaxle (Part 5):




Automatic Transaxle (Part 6):
