[G35M-R, A65M-R]

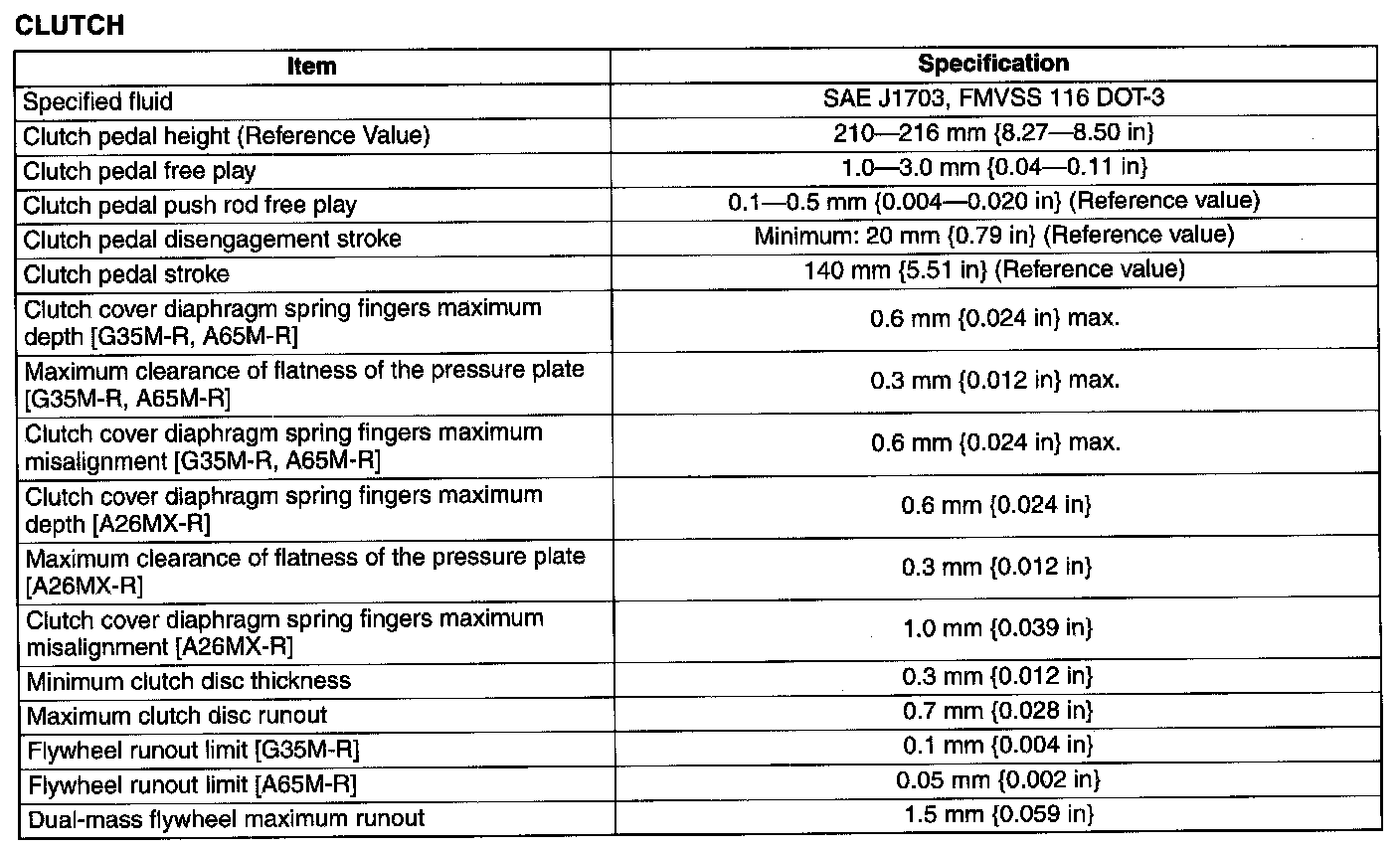

Service Specifications

Clutch:

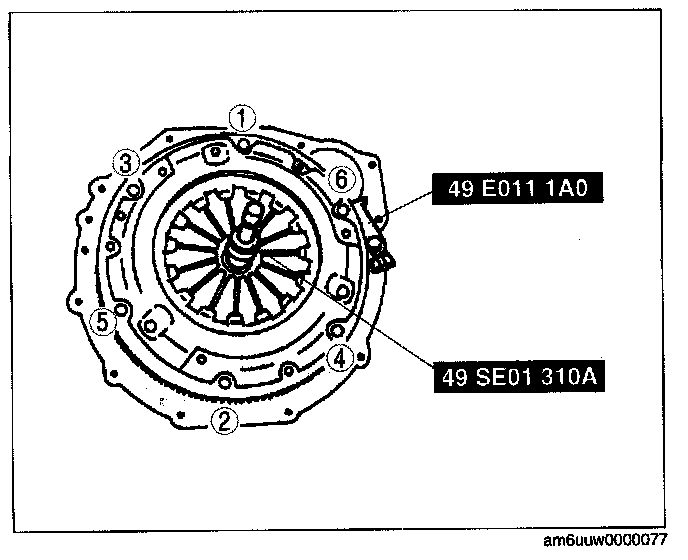

Torque and Sequence

G35M-R manual transaxle models






Tighten the bolts evenly and gradually in a crisscross pattern.

Tightening torque
25 - 33 N-m (2.6 - 3.3 kgf-m, 19 - 24 ft-lbf)

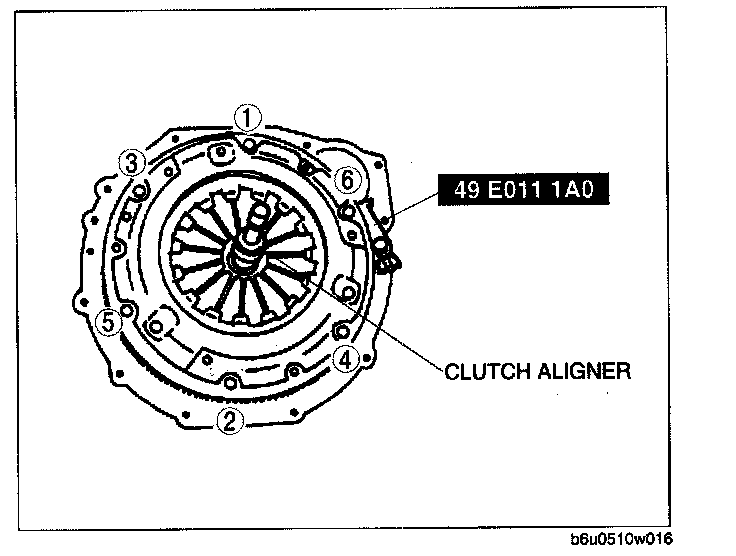

A65M-R manual transaxle models






Tighten the bolts evenly and gradually in a crisscross pattern.

Tightening torque
25 - 33 N-m (2.6 - 3.3 kgf-m, 19 - 24 ft-lbf)
