Ring Gear Assembly Note

Ring Gear Assembly Note

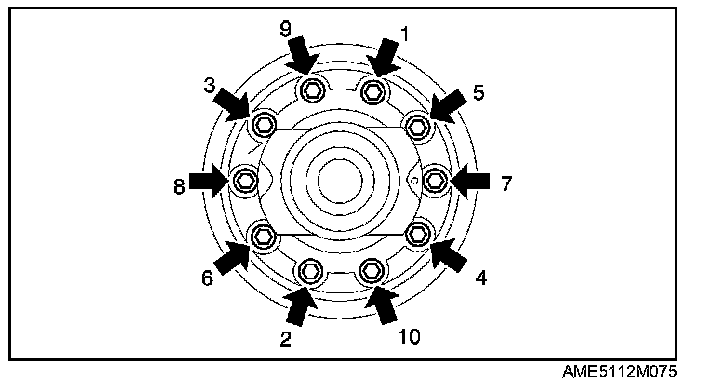

1. Install the gear case component, and tighten the bolt in the order shown in the figure.

Tightening torque:
112.7 - 127.4 N-m (11.5 - 13.0 kgf-m, 83 - 94 ft-lbf)
