Differential Disassembly

DIFFERENTIAL DISASSEMBLY
1. Disassemble in the order shown in the figure.

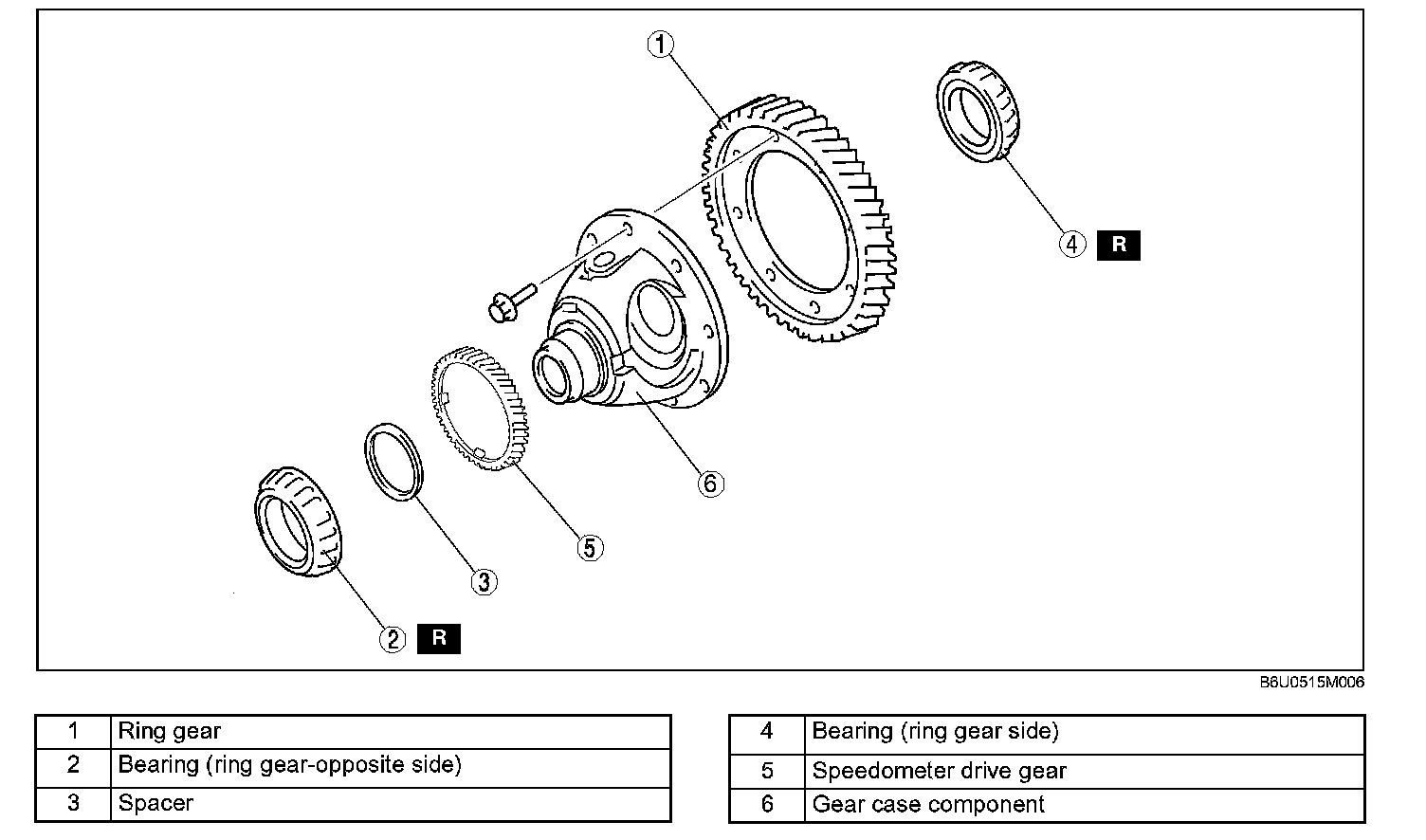

Differential Disassembly:
