Power Window Subswitch

POWER WINDOW SUBSWITCH INSPECTION

Passenger's Side
1. Measure the voltage at each terminal (other than terminals I and H).
- If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under "Inspection item(s)" and related wiring harnesses.

2. Disconnect the negative battery cable.
3. Inspect the power window subswitch connector for continuity at terminals I and H.

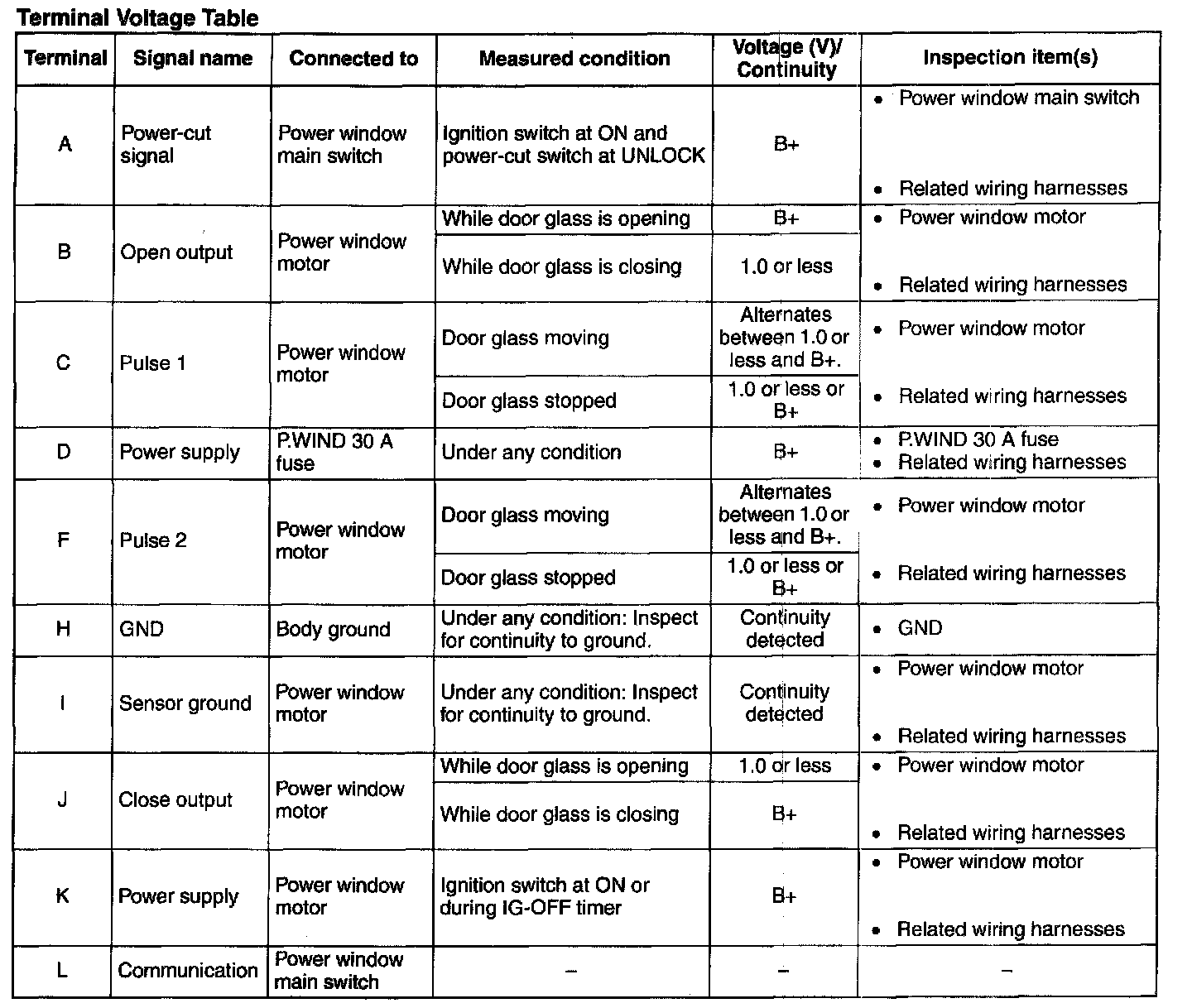

Terminal Voltage Table - Terminals (A - L):

4. If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window subswitch.

Rear Side

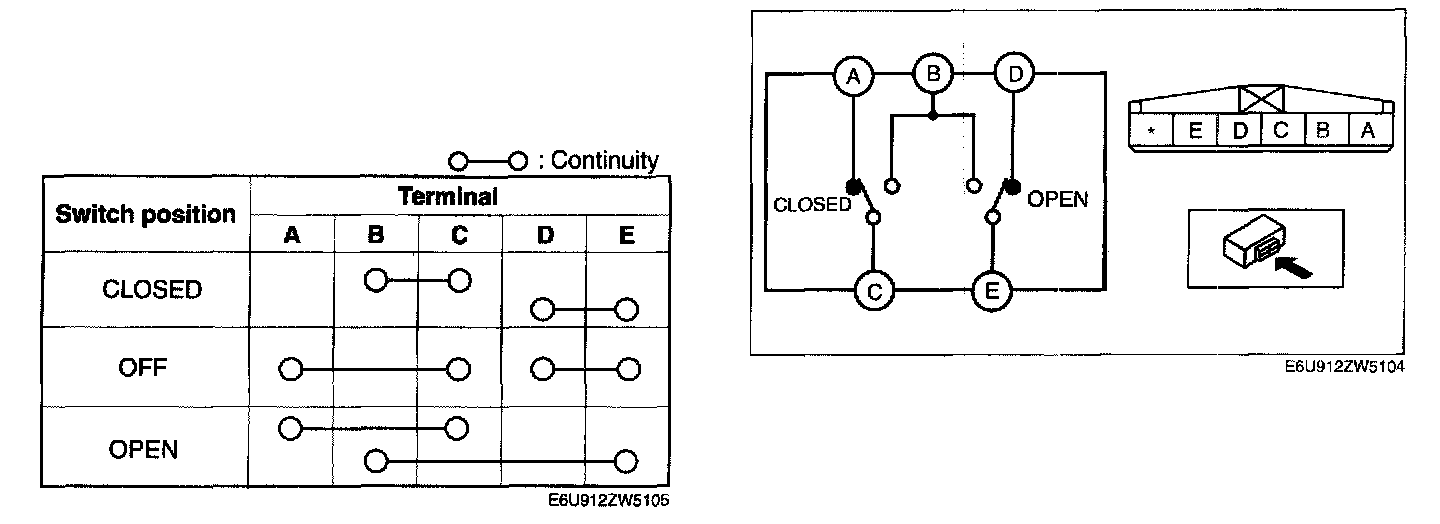

1. Inspect for continuity between the power window subswitch terminals.
- If not as specified, replace the power window subswitch.
