Fuse Block Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the left-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION. )
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

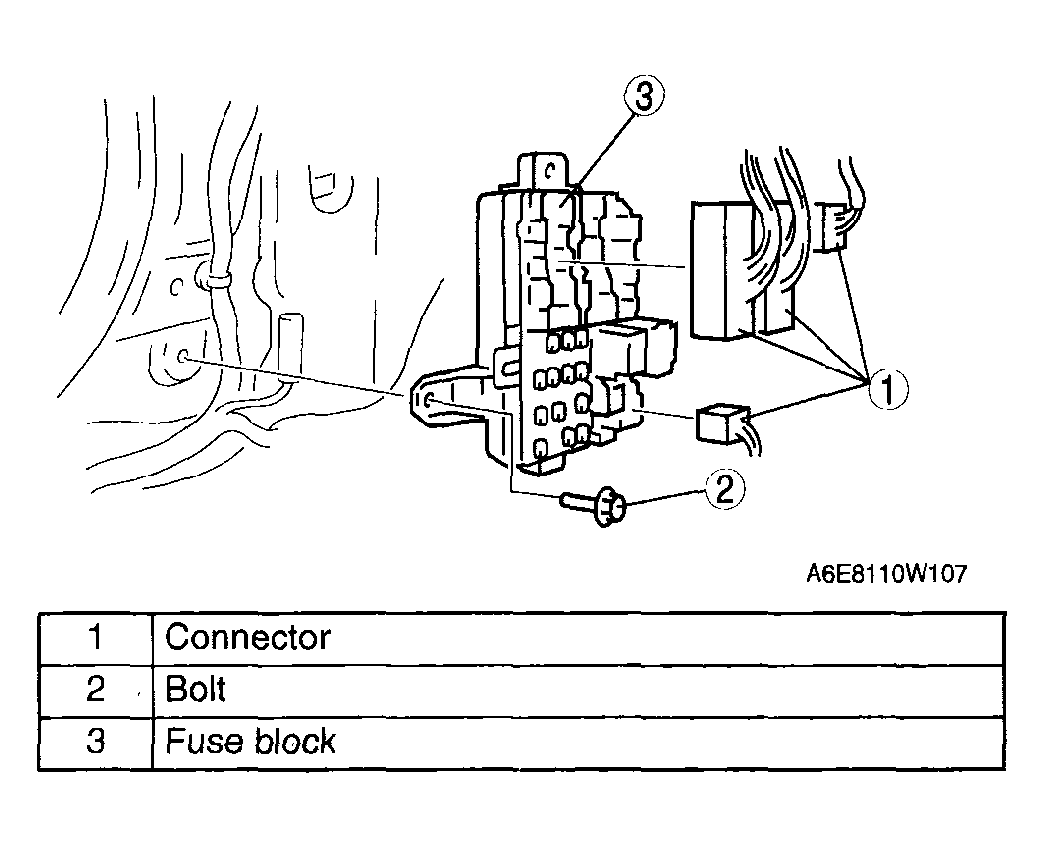

    Fig 1: View Of Fuse Block
    G04327705Courtesy of MAZDA MOTORS CORP.
