Key Reminder Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Disconnect the key reminder switch connector.
  4. Remove the key reminder switch.
  5. Install in the reverse order of removal.

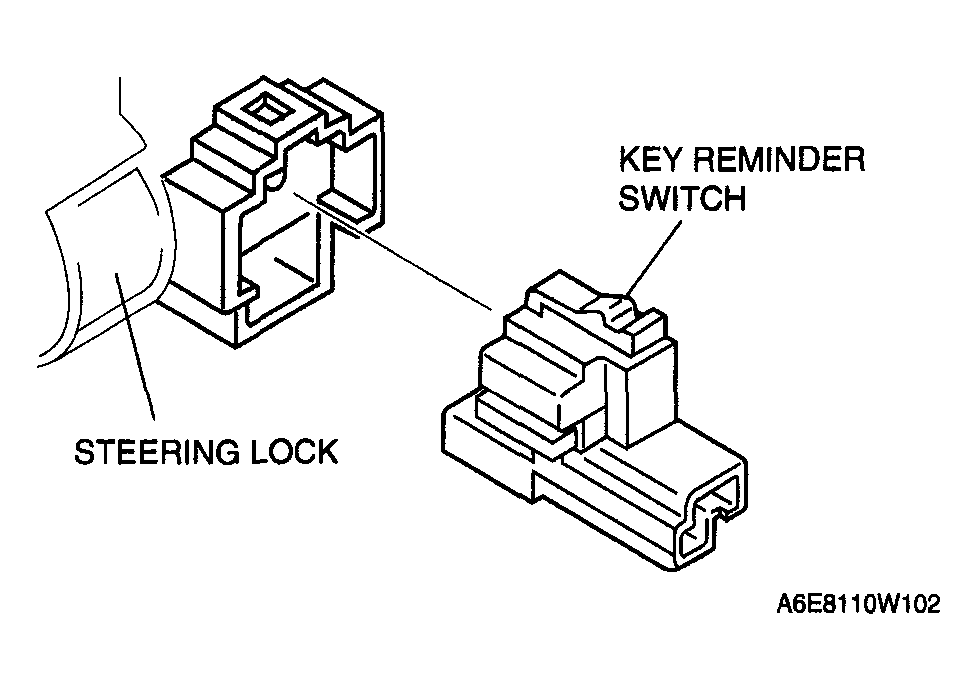

    Fig 1: View Of Key Reminder Switch
    G04327709Courtesy of MAZDA MOTORS CORP.
