Outer Mirror Glass Disassembly Note

  1. Press area A of the glass so that area B moves outward.
  2. Insert a screwdriver into the notch and remove the glass from the mirror base.

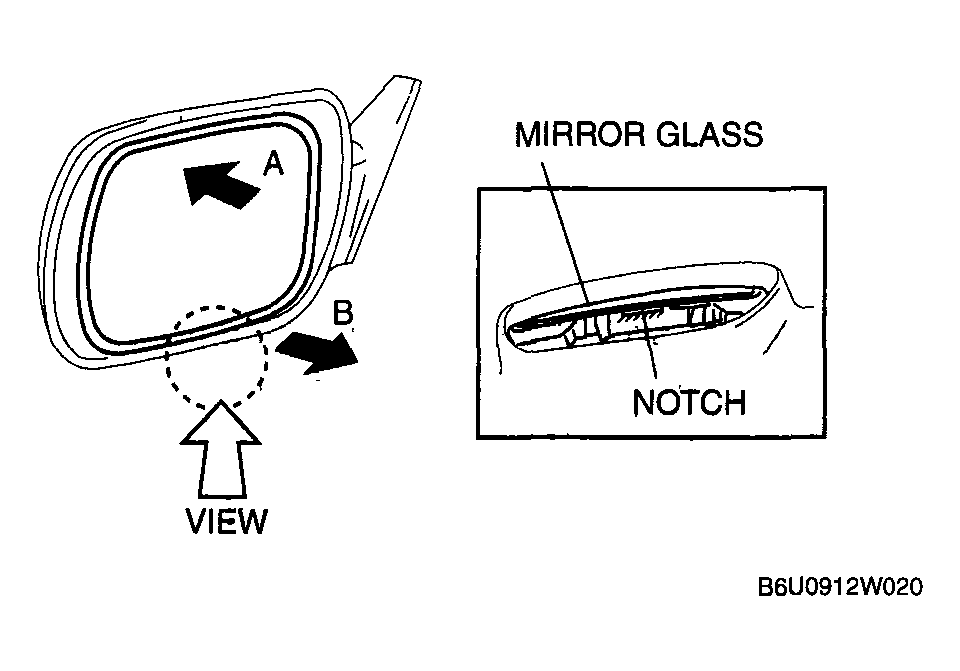

    Fig 1: Disassembling Outer Mirror Glass
    G04327225Courtesy of MAZDA MOTORS CORP.
