Power Outer Mirror Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the inner garnish.
  3. Remove the front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION )
  4. Disconnect the power outer mirror connector.
  5. Remove the nuts.
  6. Remove the power outer mirror.
  7. Install in the reverse order of removal.

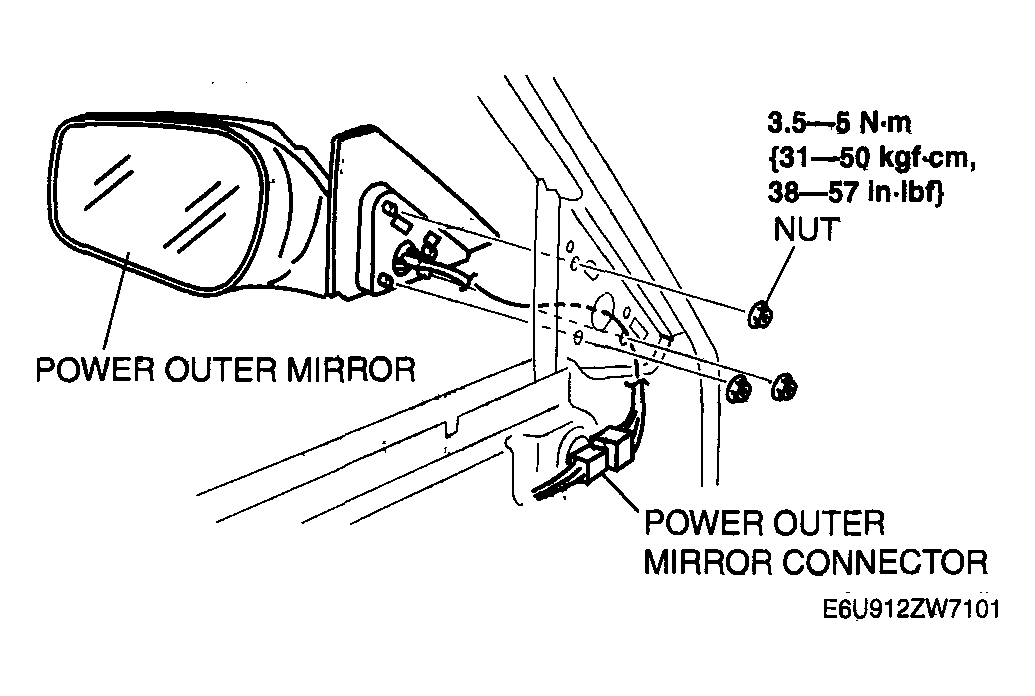

    Fig 1: Power Outer Mirror & Torque Specification
    G04327223Courtesy of MAZDA MOTORS CORP.
