Power Outer Mirror Switch Removal/Installation

NOTE:
  • The power outer mirror integrating the power window main switch.
  1. Disconnect the negative battery cable.
  2. Remove the driver-side front door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION )
  3. Remove the screws and the power outer mirror switch.
  4. Install in the reverse order of removal.

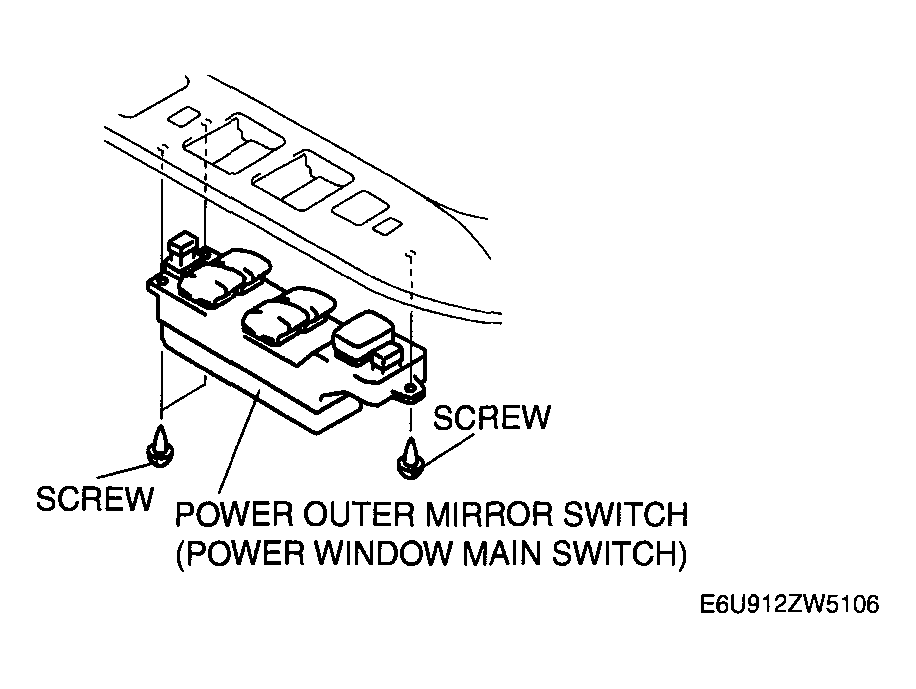

    Fig 1: Removing & Installing Power Outer Mirror Switch
    G04327231Courtesy of MAZDA MOTORS CORP.
