Driver's Side

  1. Measure the voltage at each terminal (other than terminals 1M and 2A).
    • If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under "Inspection item(s)" and related wiring harnesses.
  2. Disconnect the negative battery cable.
  3. Inspect the power window main switch connector for continuity at terminal 1M and 2A.
  4. If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch.

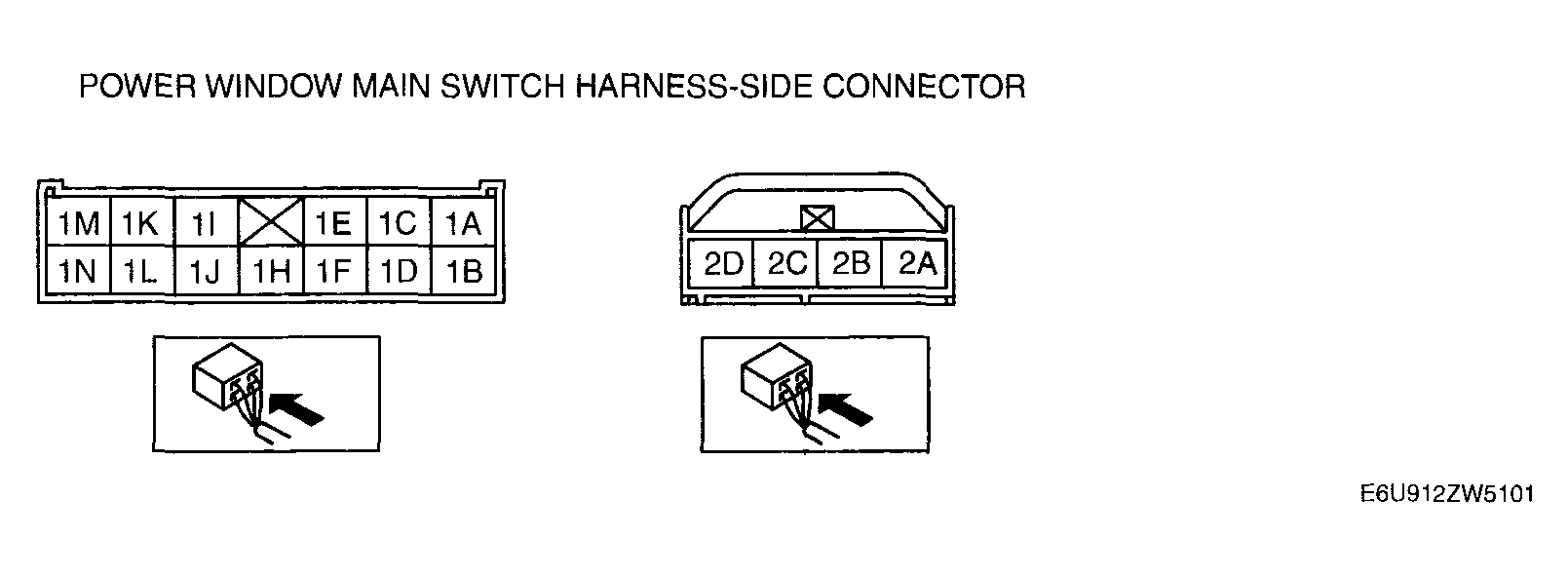

    Fig 1: Identifying Power Window Main Switch Connector Terminal
    G04327182Courtesy of MAZDA MOTORS CORP.

Terminal voltage list

TERMINAL VOLTAGE LIST

Terminal Signal name Connected to Measured condition Voltage (V)/Continuity Inspection item(s)
1C ACC MIRR 5A Ignition switch is at ACC position B+
  • Inspect MIRR 5A fuse
  • Related wiring harnesses
Ignition switch is at LOCK position Below 1.0
1E IG1 IG KEY1 30 A fuse Ignition switch is at ON position B+
  • Inspect IG KEY1 30 A fuse
  • Related wiring harnesses
Ignition switch is at LOCK position Below 1.0
1F Power-cut signal Power window subswitch Ignition switch at ON and power-cut switch at UNLOCK B+
1G Communication Power window subswitch passenger's side) - - -
1H Communication BCM - - -
1I Close output Power window motor While door glass is opening Below 1.0
While door glass is closing B+
1K Open output Power window motor While door glass is opening B+
While door glass is closing Below 1.0
1M GND Body Ground Under any condition: inspect for continuity to ground Continuity detected
  • GND
1N Power supply P.WIND 30 A fuse Under any condition B+
  • WIND 30 A fuse
  • Related wiring harnesses
2A Sensor ground Power window motor Under any condition: inspect for continuity to ground Continuity detected
2B Power supply Power window motor While IG ON or IG OFF timer works B+
2C Pulse 1 Power window motor Door glass is in motion Alternates between 0 and B+
Door glass is not in motion 0 or B+
2D Pulse 2 Power window motor Door glass is in motion Alternates between 0 and B+
Door glass is not in motion 0 or B+
