Rear Side

  1. Remove the power window main switch. See POWER WINDOW SWITCH REMOVAL/INSTALLATION .
  2. When inspecting the rear, turn the power-cut switch UNLOCK.
  3. Inspect for continuity between the power window main switch terminals.
    • If not as specified, replace the power window main switch.

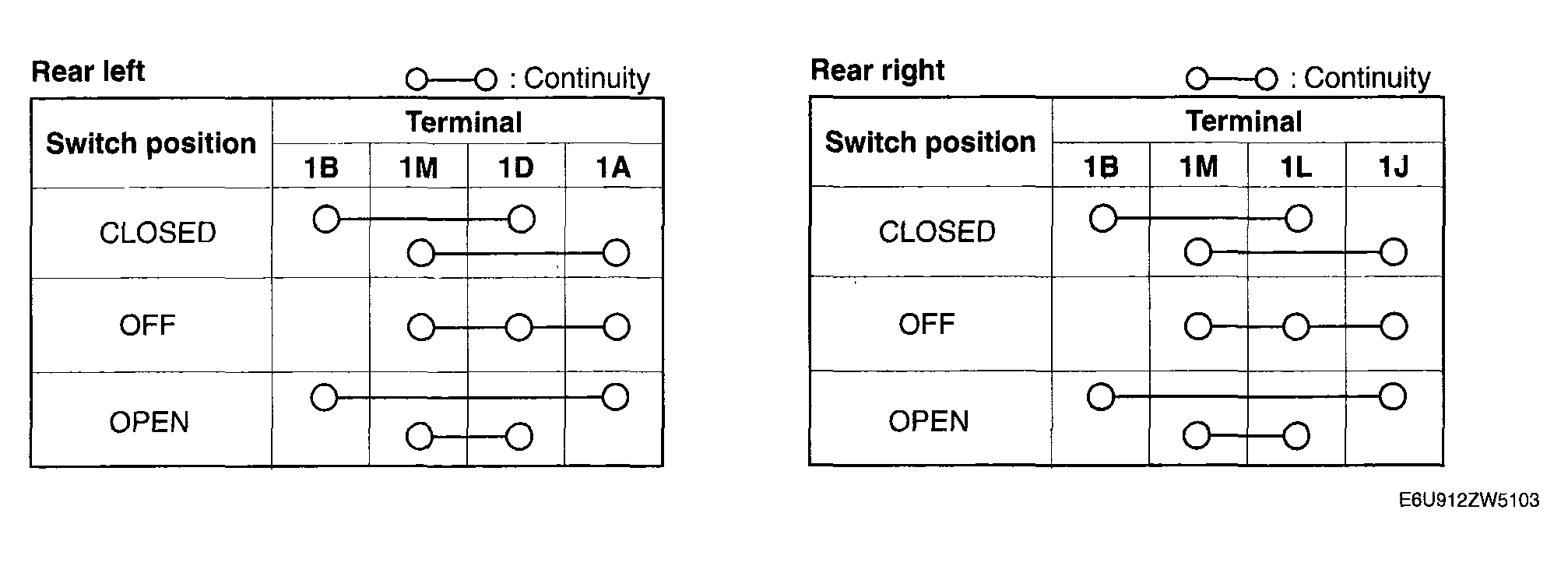

      Fig 1: Switch Continuity Reference Chart
      G04327183Courtesy of MAZDA MOTORS CORP.

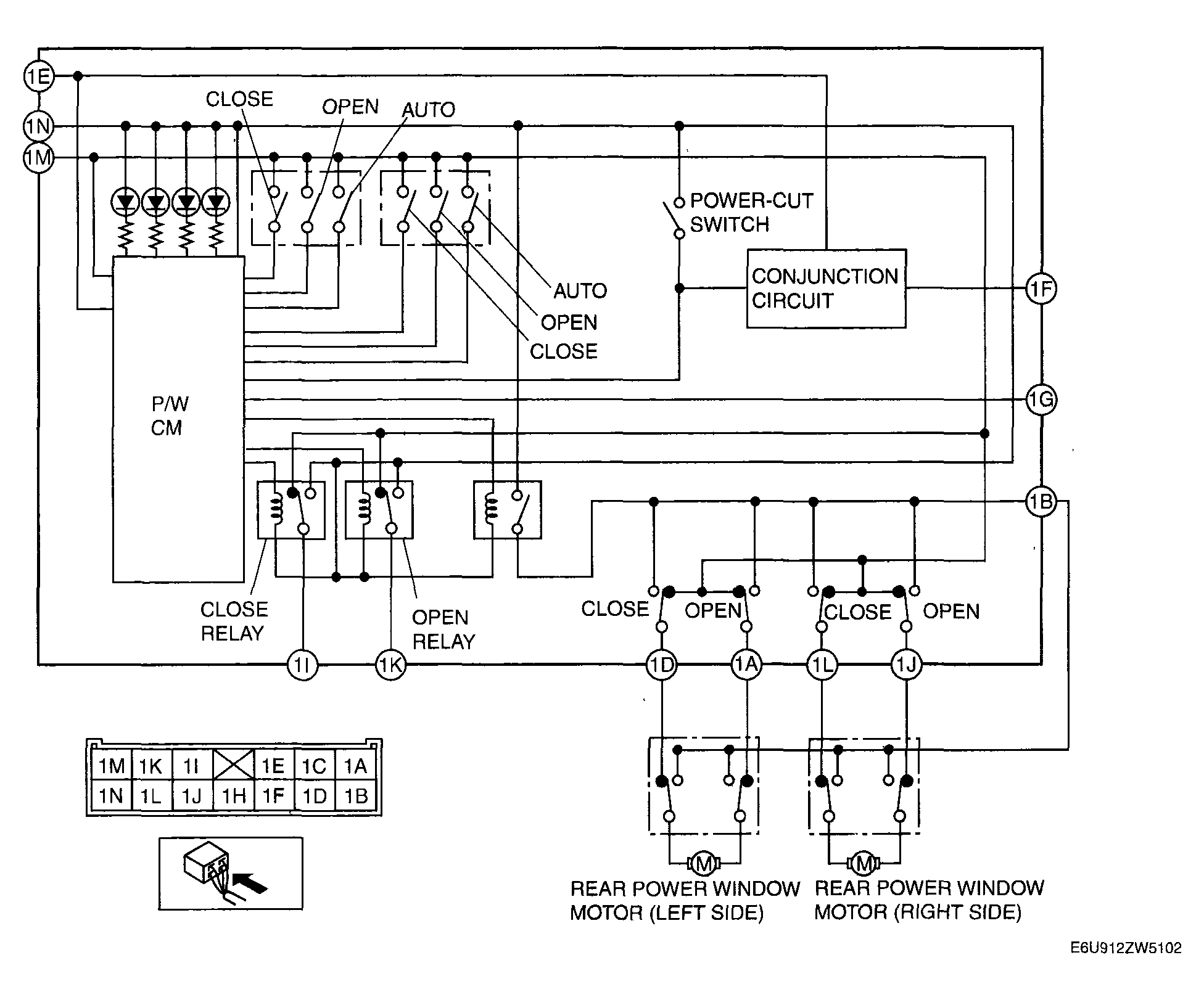

      Fig 2: Power Window Subswitch - Circuit Diagram
      G04327184Courtesy of MAZDA MOTORS CORP.
