Rear Side

  1. Apply battery positive voltage to the power window motor terminals and inspect the power window motor operation.
    • If there is any malfunction, replace the power window motor.
      MOTOR OPERATION REFERENCE

      Motor operation Terminal
      F E
      UP GND B+
      DOWN B+ GND

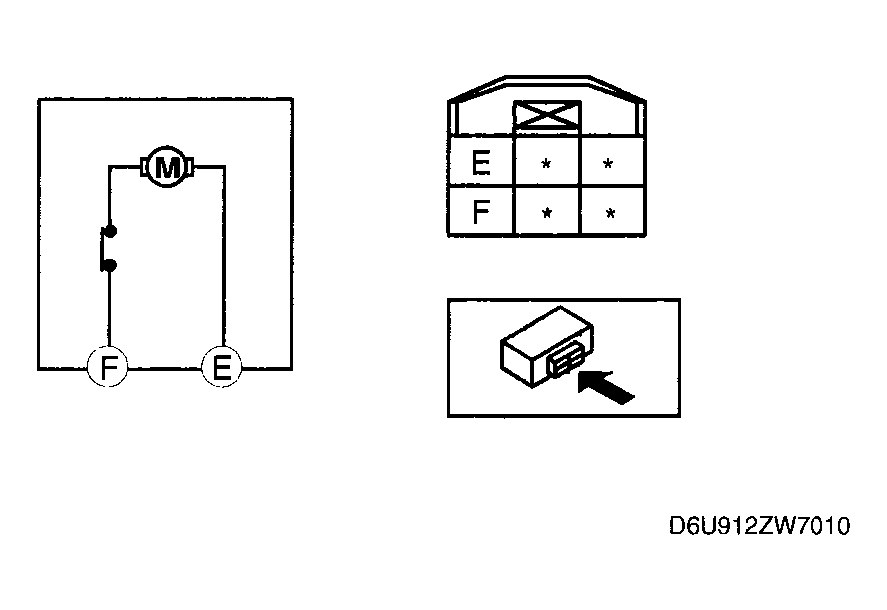

      Fig 1: Applying Battery Positive Voltage To Power Window Motor Terminals
      G04327180Courtesy of MAZDA MOTORS CORP.
