Power Window Switch Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the front door trim or rear door trim. See FRONT DOOR TRIM REMOVAL/INSTALLATION ) See REAR DOOR TRIM REMOVAL/INSTALLATION )
  3. Remove the screws, then the power window switch.
  4. Install in the reverse order of removal.

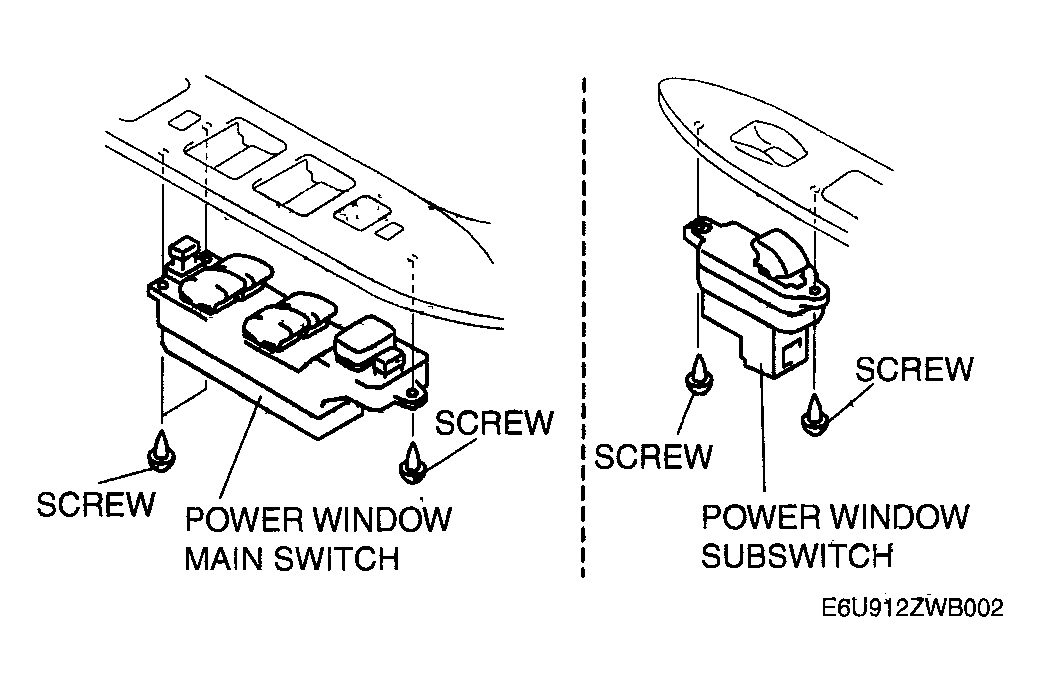

    Fig 1: Removing & Installing Power Window Switch
    G04327181Courtesy of MAZDA MOTORS CORP.
