Two-Step Down Function Operative/Non-Operative Switching Procedure

NOTE:
  • By following the procedure below, the two-step down function is switched to non-operative when it is operative, and to operative when it is non-operative.

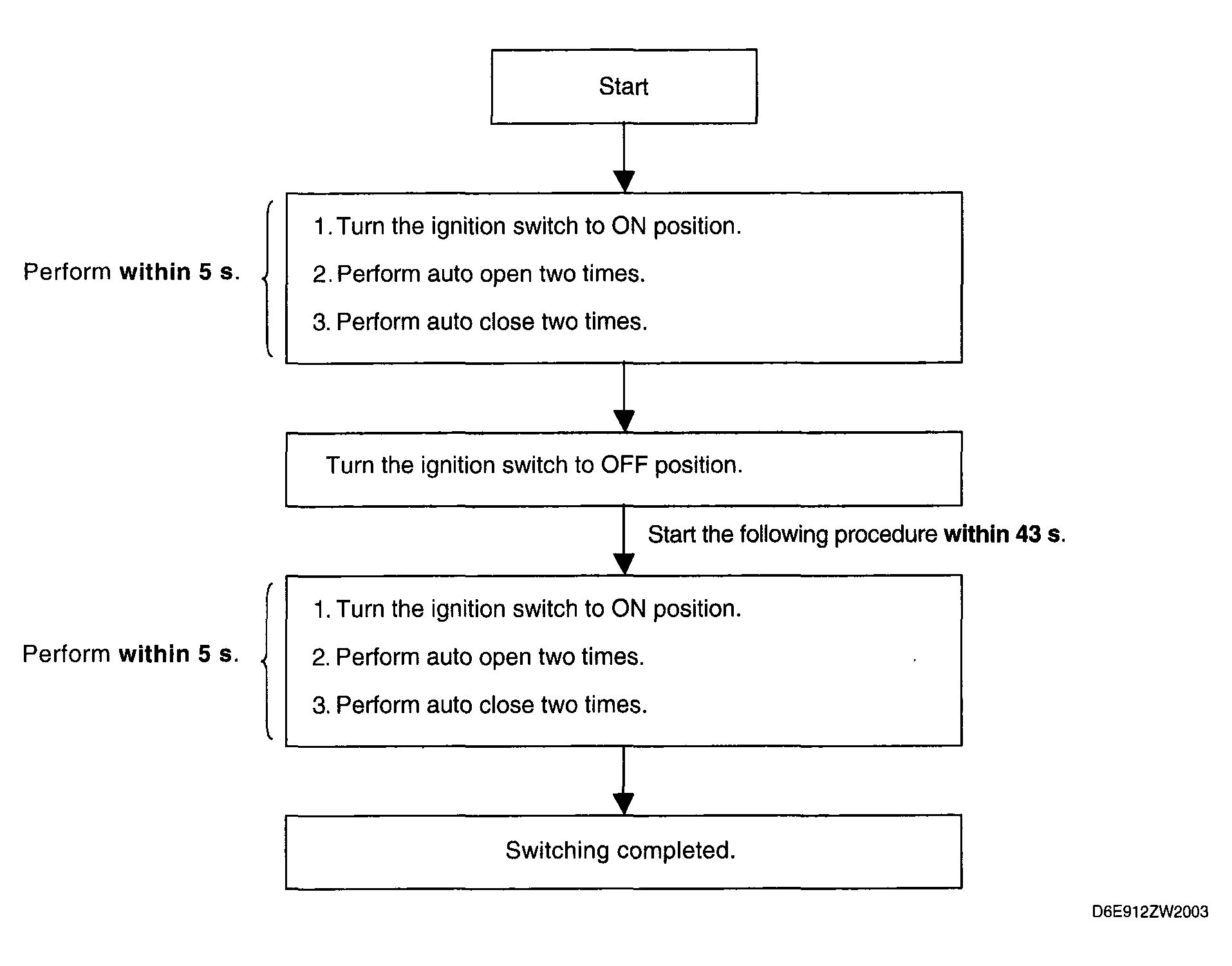

Fig 1: Two-Step Down Function Operative/Non-Operative Switching Procedure - Flow Chart
G04327187Courtesy of MAZDA MOTORS CORP.
