Windshield Installation

CAUTION:

To prevent the sealant from cracking or the glass from being pushed out by air pressure if a door is closed, open all of the windows and leave them open until the sealant has hardened.

Cut away the old sealant using a razor so that 1-2 mm {0.04-0.07 in} thickness of sealant remains along the perimeter of the frame.
WARNING:
- Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
If the sealant has come off completely in any one place, apply some primer after degreasing, and allow it approx. 30 min to dry. Then put on new sealant to create a 2 mm {0.08 In} layer.
Clean and degrease an approx. 50.0 mm {1.97 in} wide strip along the perimeter of the glass and the bonding area on the body.

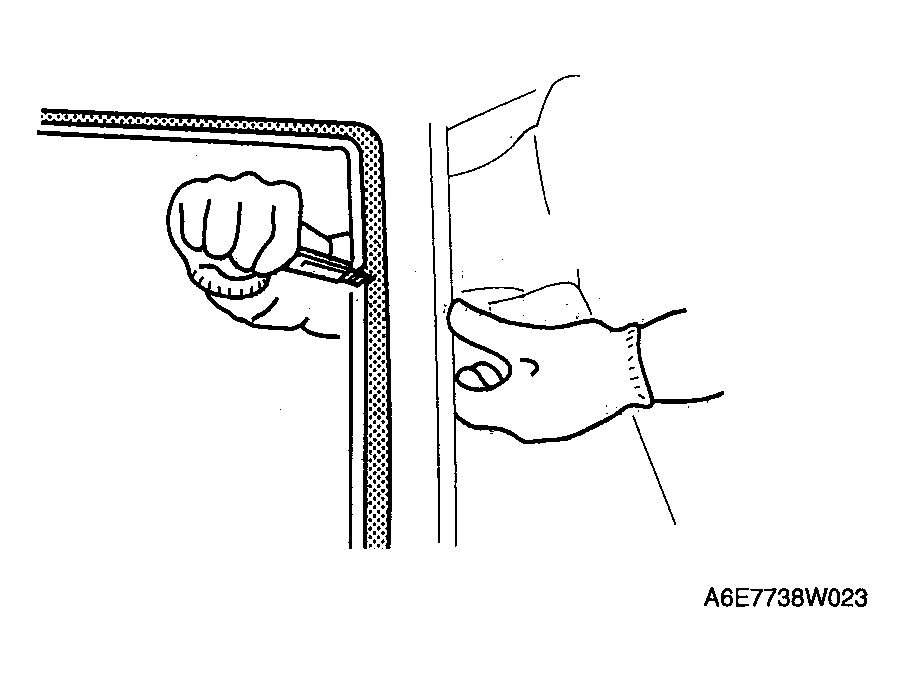

Fig 1: Precaution For Always Wear Gloves When Using A Razor
Courtesy of MAZDA MOTORS CORP.
If installing reused glass, install pins at the ceramic void on the upper part of the windshield.
If installing reused glass, align the windshield molding marking and the center of the upper section of the windshield, then install the molding to the windshield.

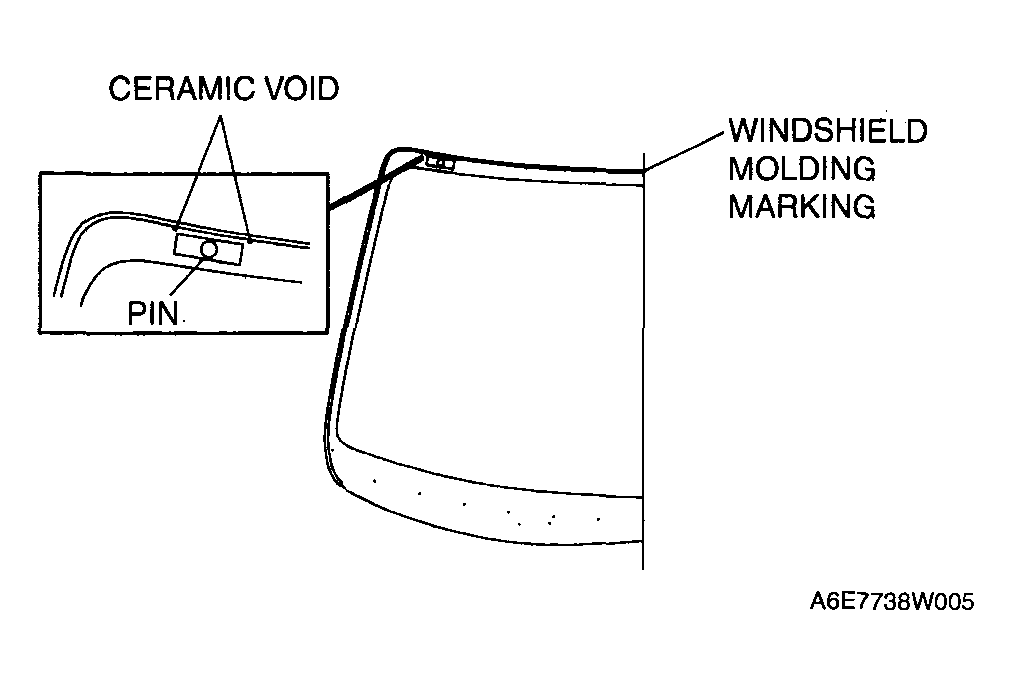

Fig 2: Installing Pins At Ceramic Void On Upper Part Of Windshield
Courtesy of MAZDA MOTORS CORP.
Use only glass primer on the glass. Allow it to dry for approx. 30 min .
CAUTION:
- Keep the area free of dirt and grease, and do not touch the surface. Otherwise, the primer may not properly bond to the surface of the glass and body, which may cause leaks to occur.

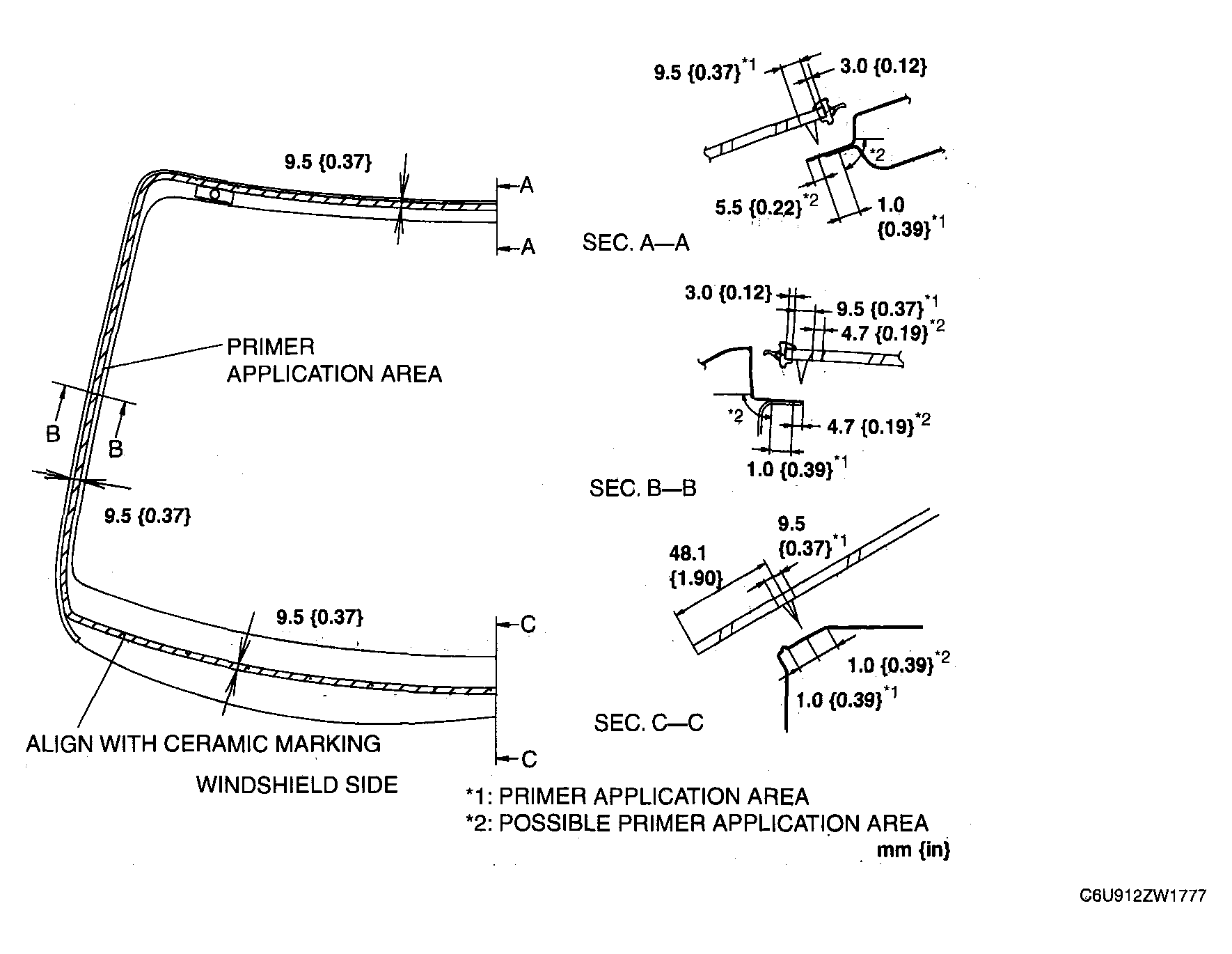

Fig 3: Identifying Primer Application Area
Courtesy of MAZDA MOTORS CORP.
Apply sealant to the area of the glass surface as shown in the figure.
Set the windshield in place and insert the pins into the body. Install the windshield.

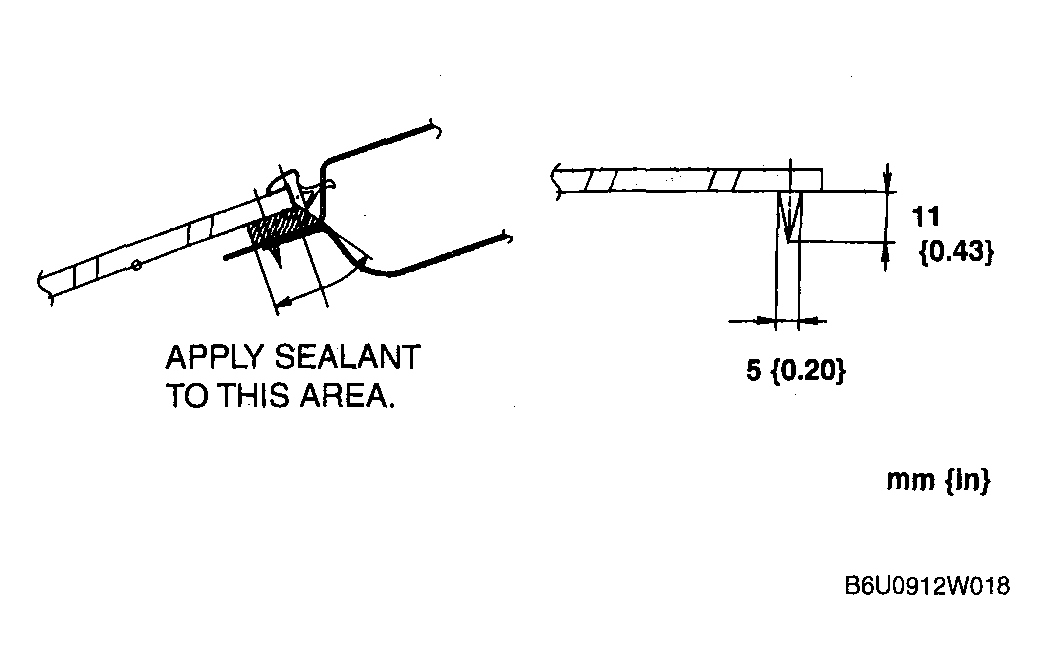

Fig 4: Applying Sealant To Area Of Glass Surface
Courtesy of MAZDA MOTORS CORP.
Verify that the gap of the A-pillar part as shown in the figure.

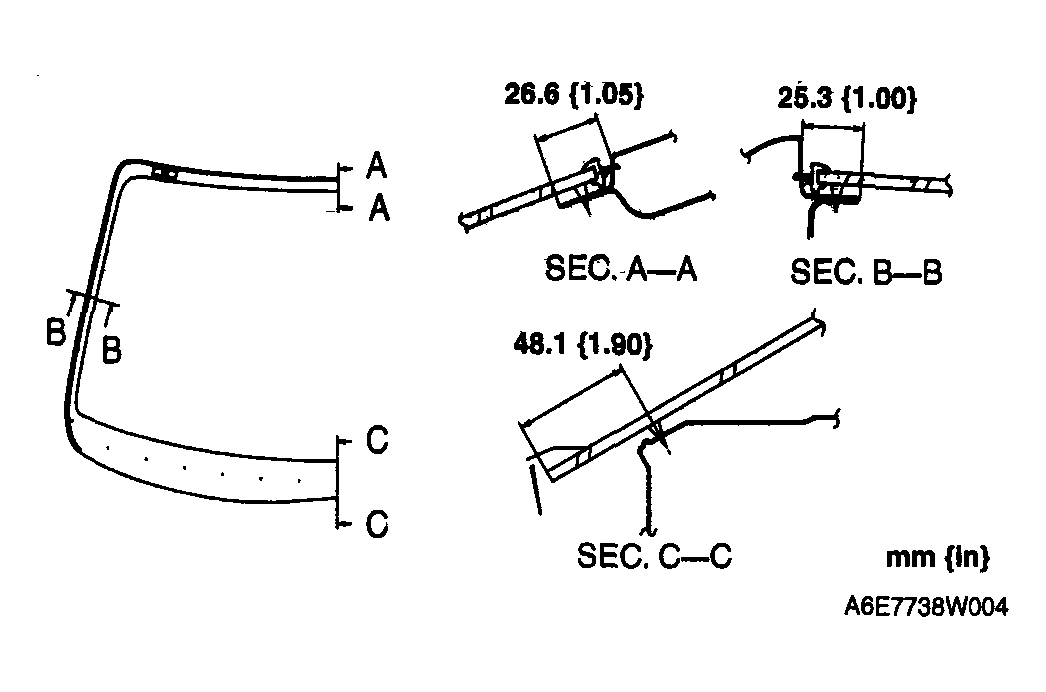

Fig 5: Verifying Gap Of A-Pillar
Courtesy of MAZDA MOTORS CORP.
Keeping the measurement of the molding lip gap within specification, press completely along the perimeter of the glass.
Install the cowl grille. See COWL GRILLE REMOVAL/INSTALLATION [EXCEPT L3 WITH TC]. See COWL GRILLE REMOVAL/INSTALLATION [L3 WITH TC].
Install the headliner See HEADLINER REMOVAL/INSTALLATION .
Install the rearview mirror. See REARVIEW MIRROR REMOVAL/INSTALLATION .
Allow the sealant to harden completely.
Sealant hardening time: 24 hours

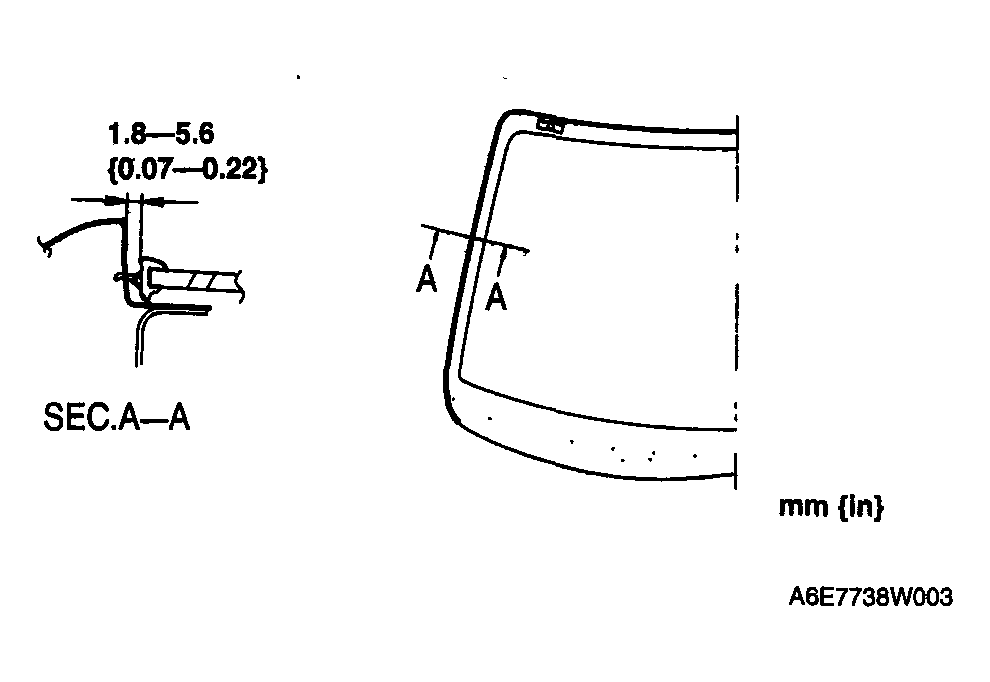

Fig 6: Identifying Molding Lip Gap With Specification
Courtesy of MAZDA MOTORS CORP.
