TCS Off Switch Inspection

Remove the TCS OFF switch.
Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.
- If not as specified, replace the TCS OFF switch.

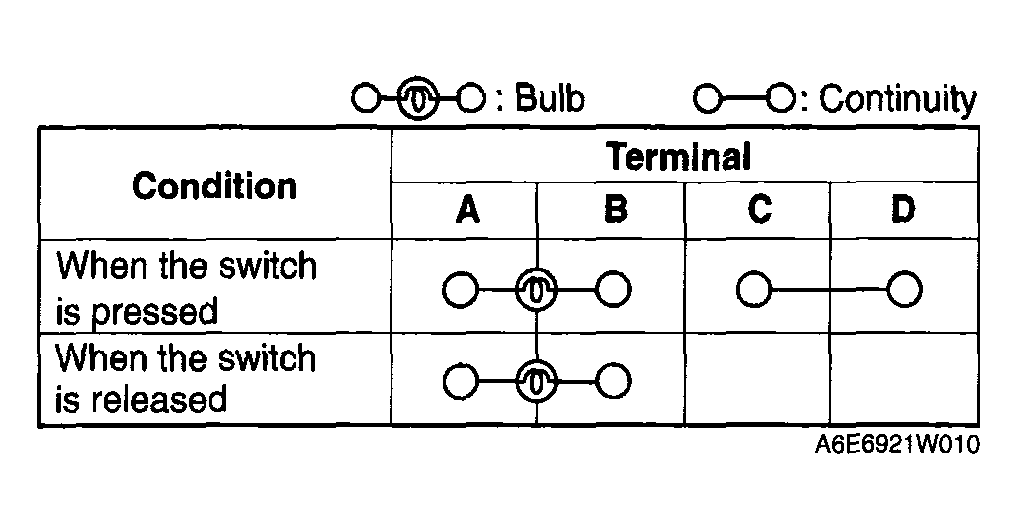

  Fig 1: Checking TCS OFF Switch Continuity
  Courtesy of MAZDA MOTORS CORP.

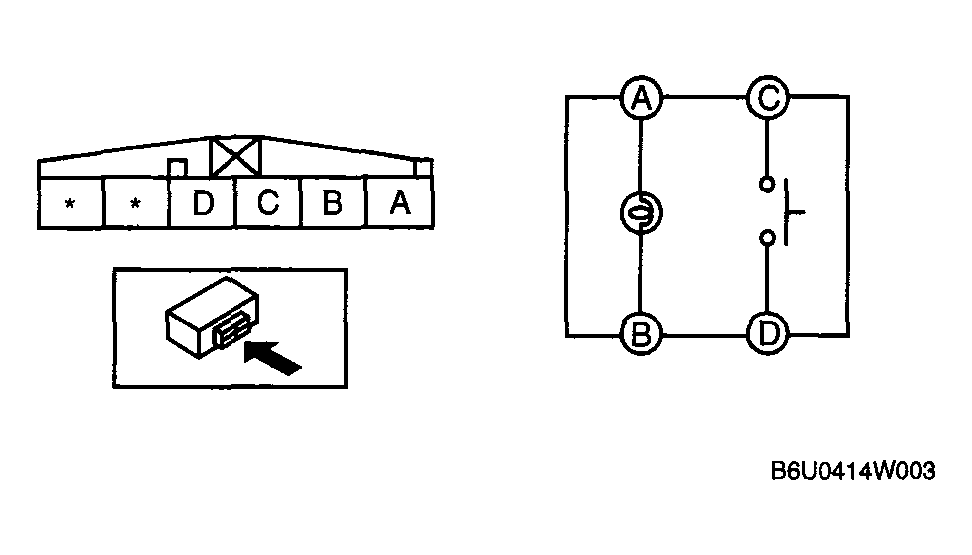

  Fig 2: Indentifying TCS OFF Switch Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
