Open circuit
- If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

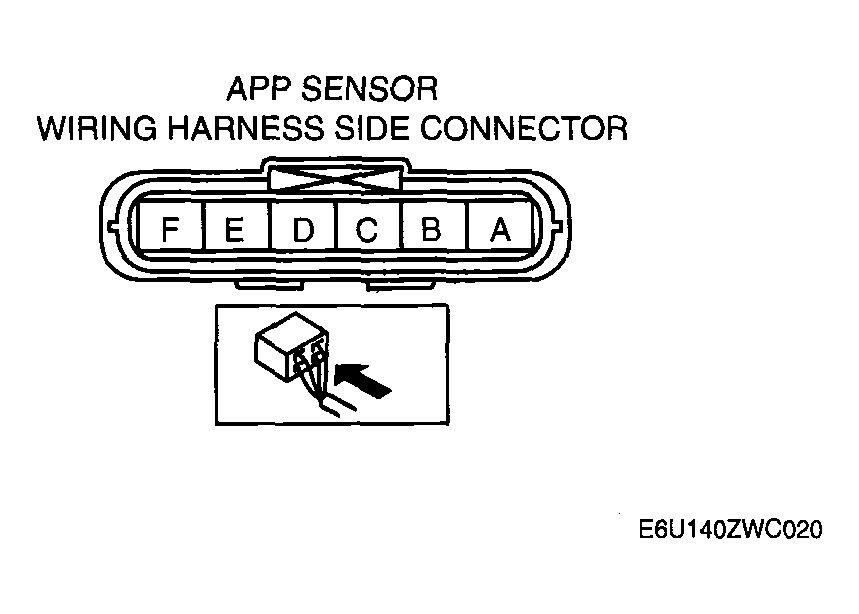

- APP sensor terminal A and PCM terminal 2K
- APP sensor terminal B and PCM terminal 2H
- APP sensor terminal C and PCM terminal 2A
- APP sensor terminal D and PCM terminal 3G
- APP sensor terminal E and PCM terminal 3A
- APP sensor terminal F and PCM terminal 3D
