Continuity Inspection

1. Verify that the clutch switch is installed properly.
2. Disconnect the negative battery cable.
3. Remove the clutch switch. (See CLUTCH PEDAL REMOVAL/INSTALLATION [A26MX-R] ).
4. Inspect for continuity between the clutch switch terminals using a tester.
   • If the clutch switch is normal, but PID value is out of specification, perform the "Circuit Open/Short Inspection".
   • If not as specified, replace the clutch switch.

Specification

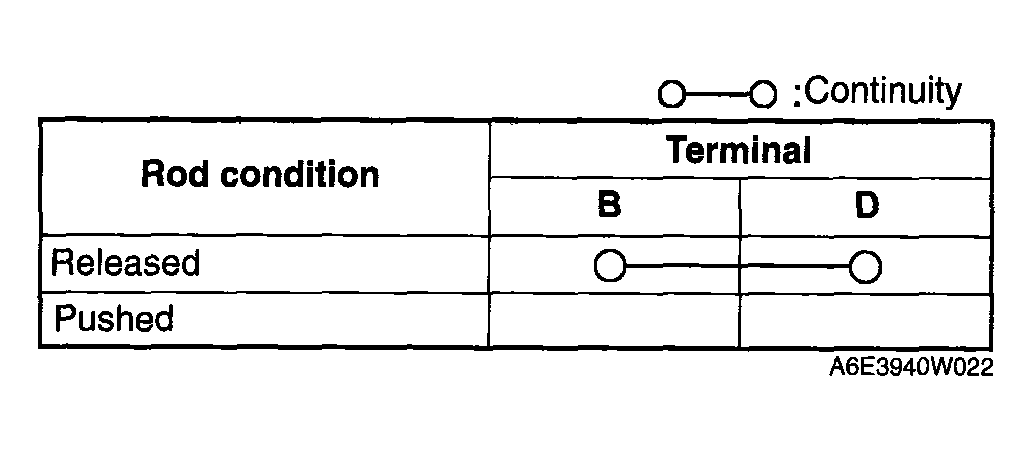

Fig 1: Terminals Continuity Table

Courtesy of MAZDA MOTORS CORP.

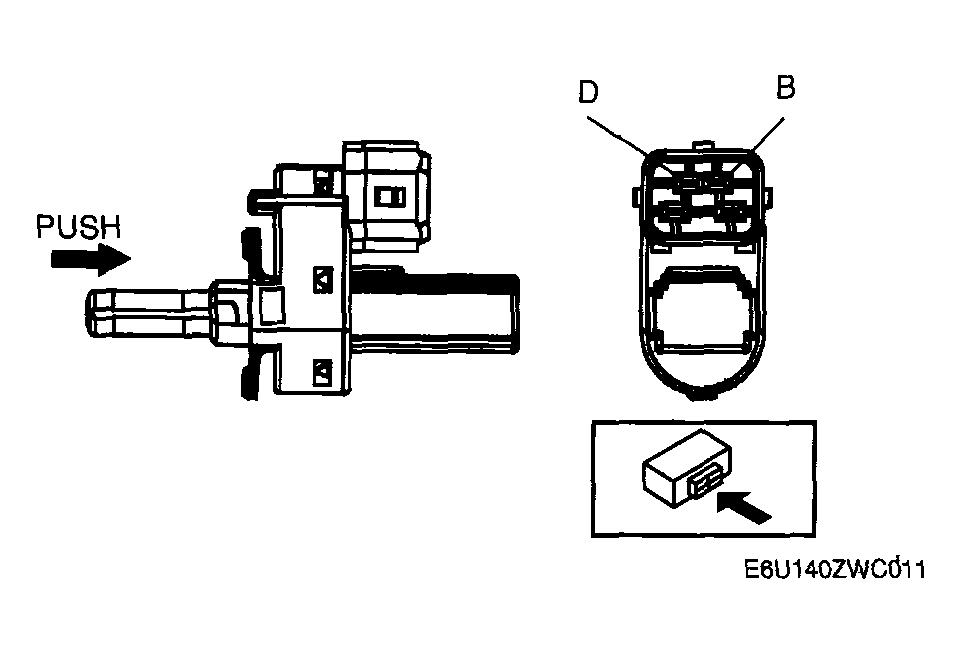

Fig 2: Identifying Clutch Pedal Position (CPP) Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.
