Injector Driver Module Inspection: Notes

  1. Inspect using the wave profile.
    • If any incorrect voltage is detected, inspect the related system(s), wiring harnesses and connector(s).

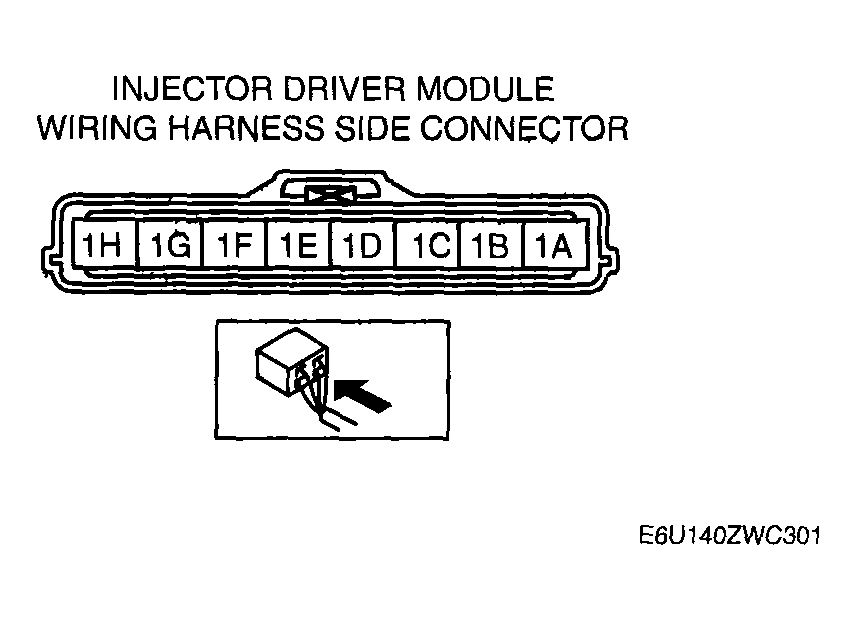

      Fig 1: Identifying Injector Driver Module Connector Terminals
      G04325220Courtesy of MAZDA MOTORS CORP.
