Circuit Open/Short Inspection: Notes

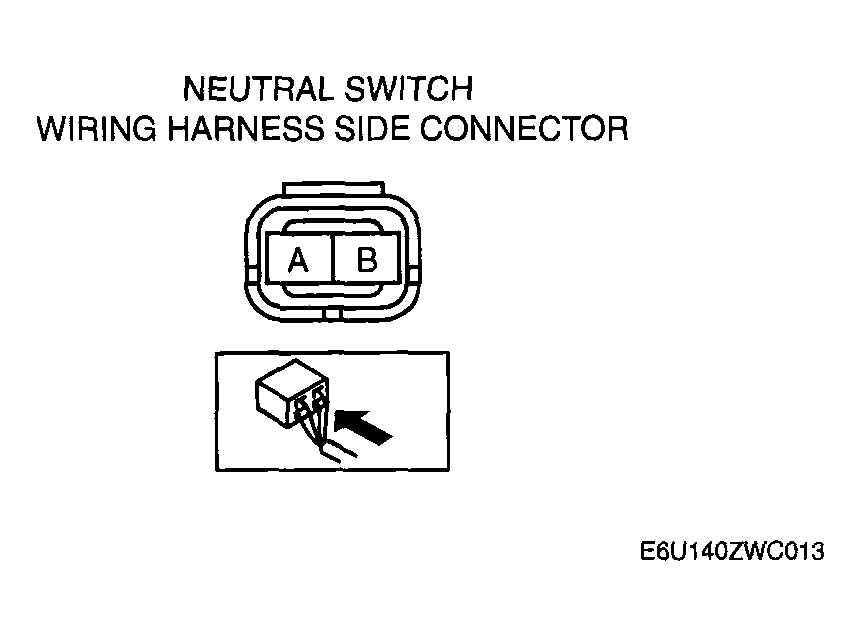

Fig 1: Identifying Neutral Switch Connector Terminals
G04325228Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION ).
  2. Inspect the following harnesses for an open or short circuit. (Continuity check)
    Fig 2: Identifying Neutral Switch Connector Terminals
    G04325229Courtesy of MAZDA MOTORS CORP.
