Continuity Inspection

1. Disconnect the negative battery cable.
2. Remove the neutral switch. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION ).
3. Inspect for continuity between the neutral switch terminals using a tester.
   • If the neutral switch is normal, but PID value is out of specification, perform the "Circuit Open/Short Inspection".
   • If not as specified, replace the neutral switch.

Specification

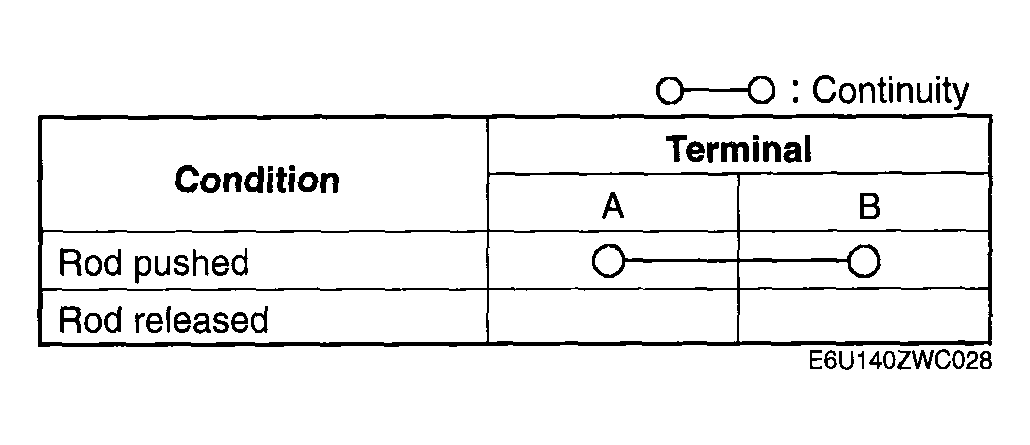

Fig 1: Terminals Continuity Table

Courtesy of MAZDA MOTORS CORP.

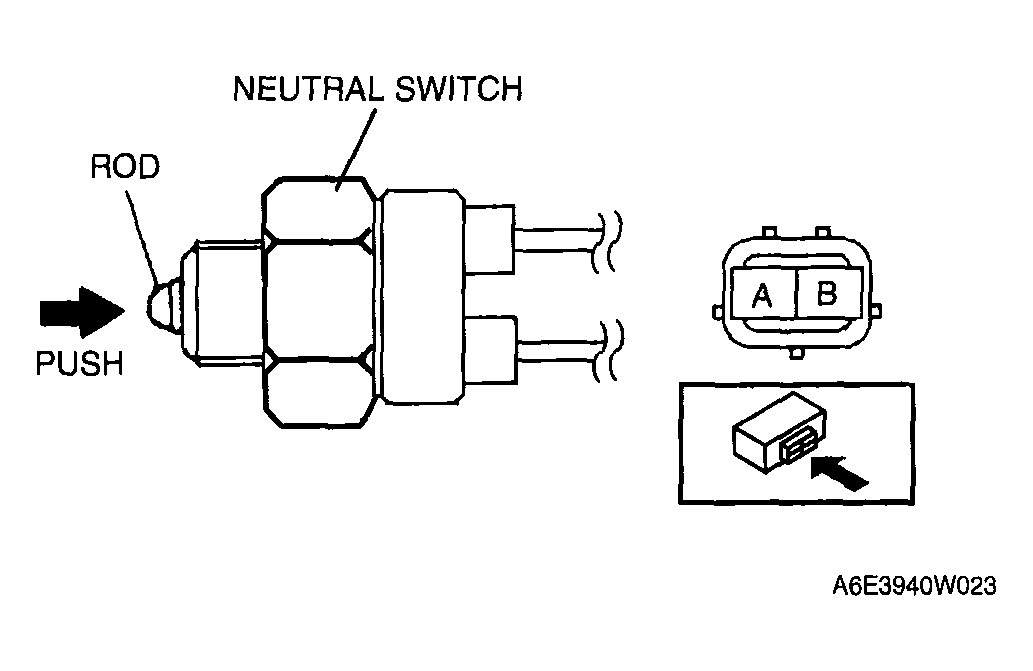

Fig 2: Identifying Neutral Switch Connector Terminals

Courtesy of MAZDA MOTORS CORP.
