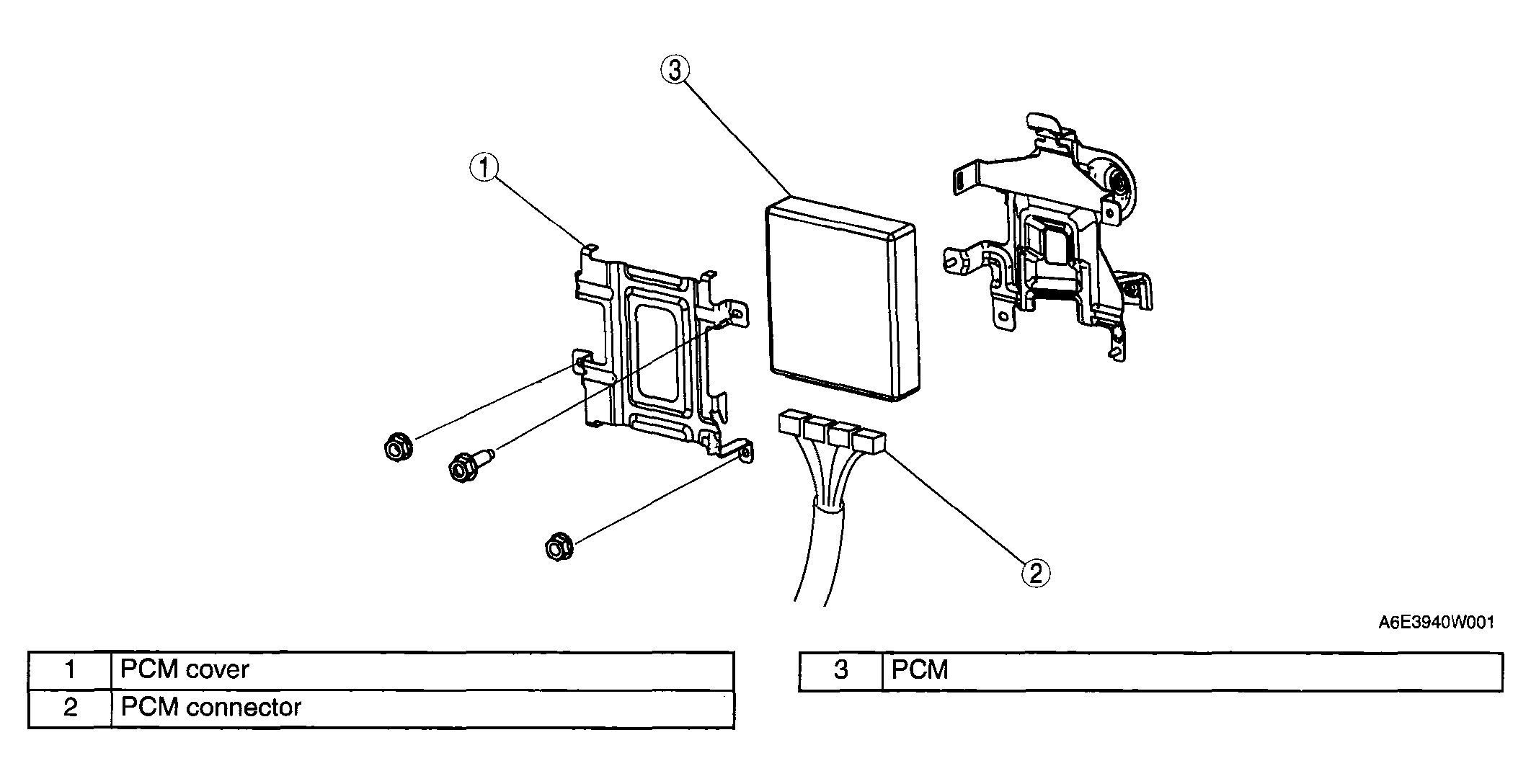

Pcm Removal/Installation
NOTE:
- For PCM replacement, set up the M-MDS and perform the PCM configuration. (See PCM CONFIGURATION ).
- Disconnect the negative battery cable.
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
