Open circuit

If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
- PSP switch terminal and PCM terminal 1Z

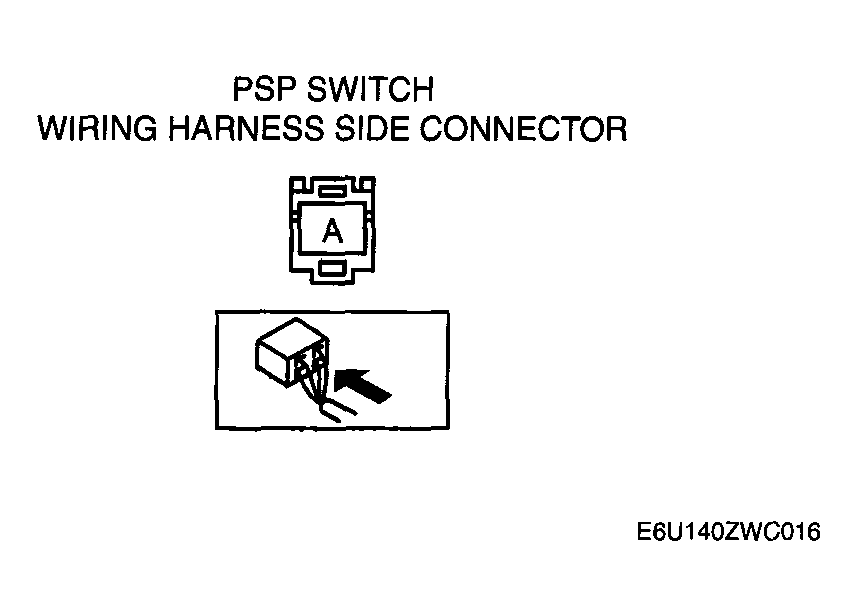

  Fig 1: Identifying Power Steering Pressure (PSP) Switch Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
