Circuit Open/Short Inspection: Notes

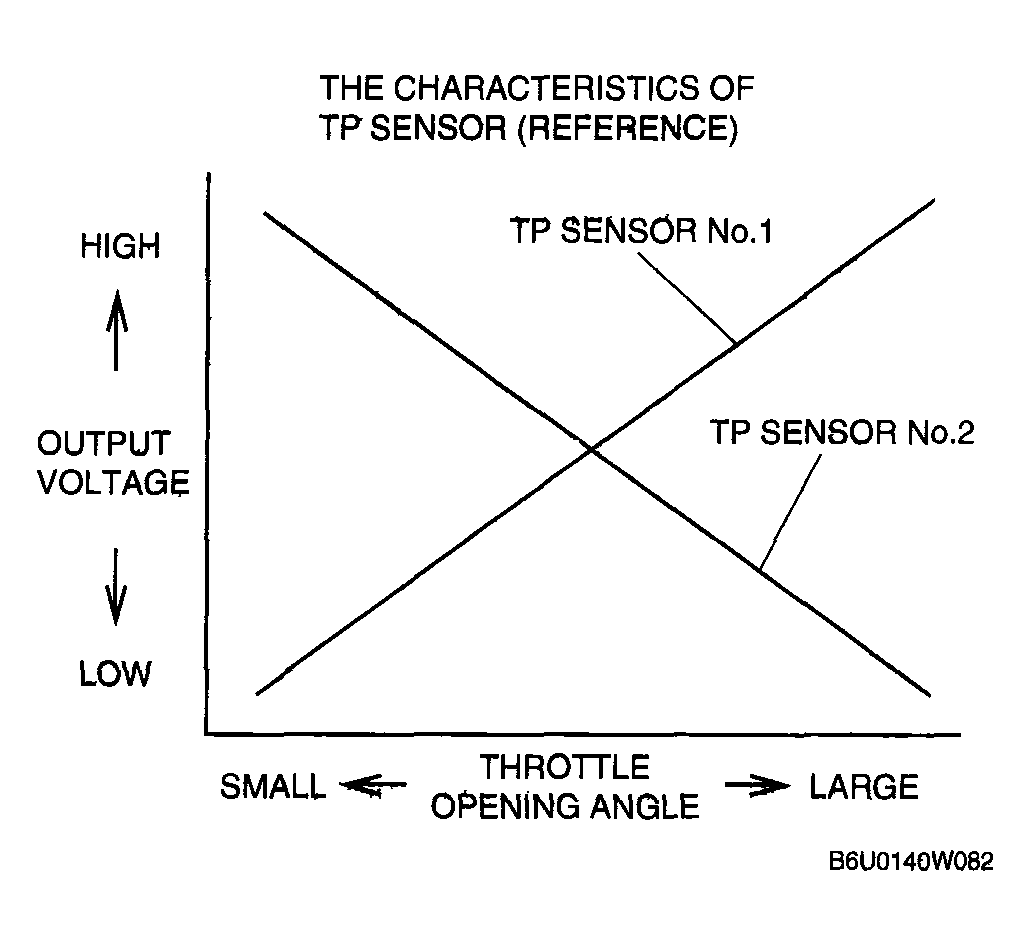

Fig 1: TP Sensor Output Voltage Graph
G04325239Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION ).
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity check)
