Open circuit
- If there is no continuity, there is an open circuit. Repair or replace the wiring harness.

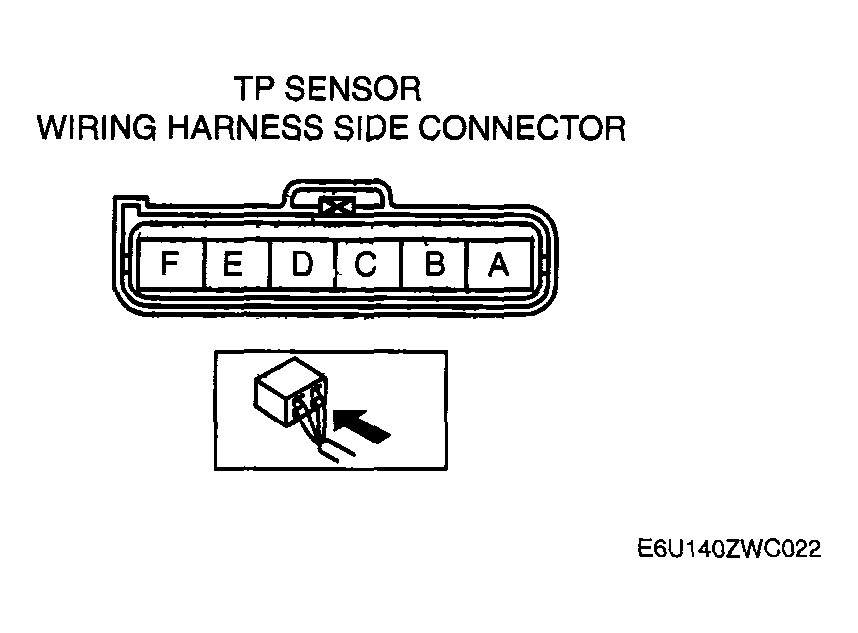

- Throttle body terminal A and PCM terminal 3M
- Throttle body terminal B and PCM terminal 3P
- Throttle body terminal C and PCM terminal 3J
- Throttle body terminal D and PCM terminal 3Q
