Variable Swirl Shutter Valve Switch Inspection
>>
Circuit Open/Short Inspection
>>
Open circuit
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Open circuit
If there is no continuity, there is an open circuit. Repair or replace the wiring harness.
Variable swirl shutter valve switch terminal A and PCM terminal 1N
Variable swirl shutter valve switch terminal B and body ground.

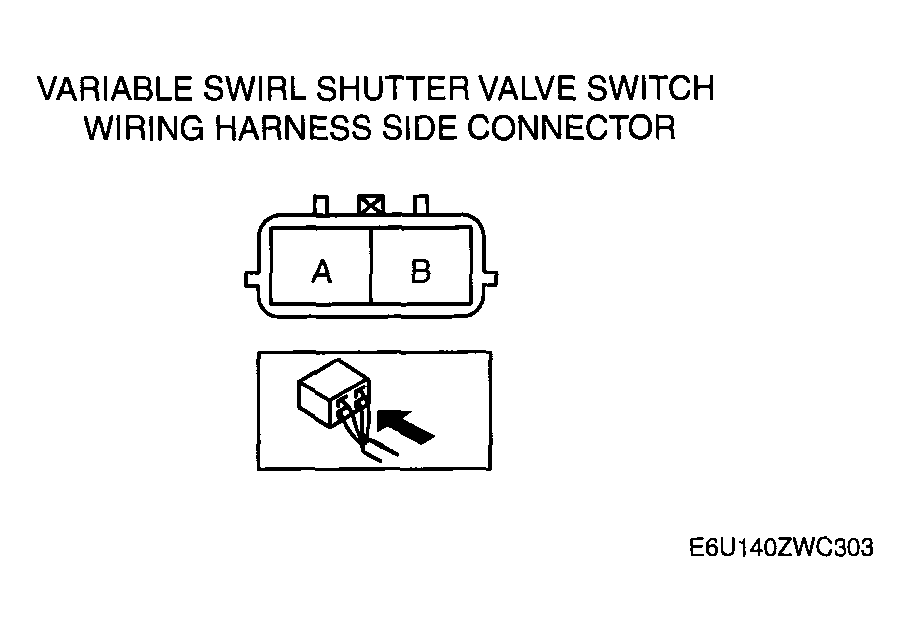

Fig 1: Identifying Variable Swirl Shutter Valve Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
