Quick Diagnostic Chart

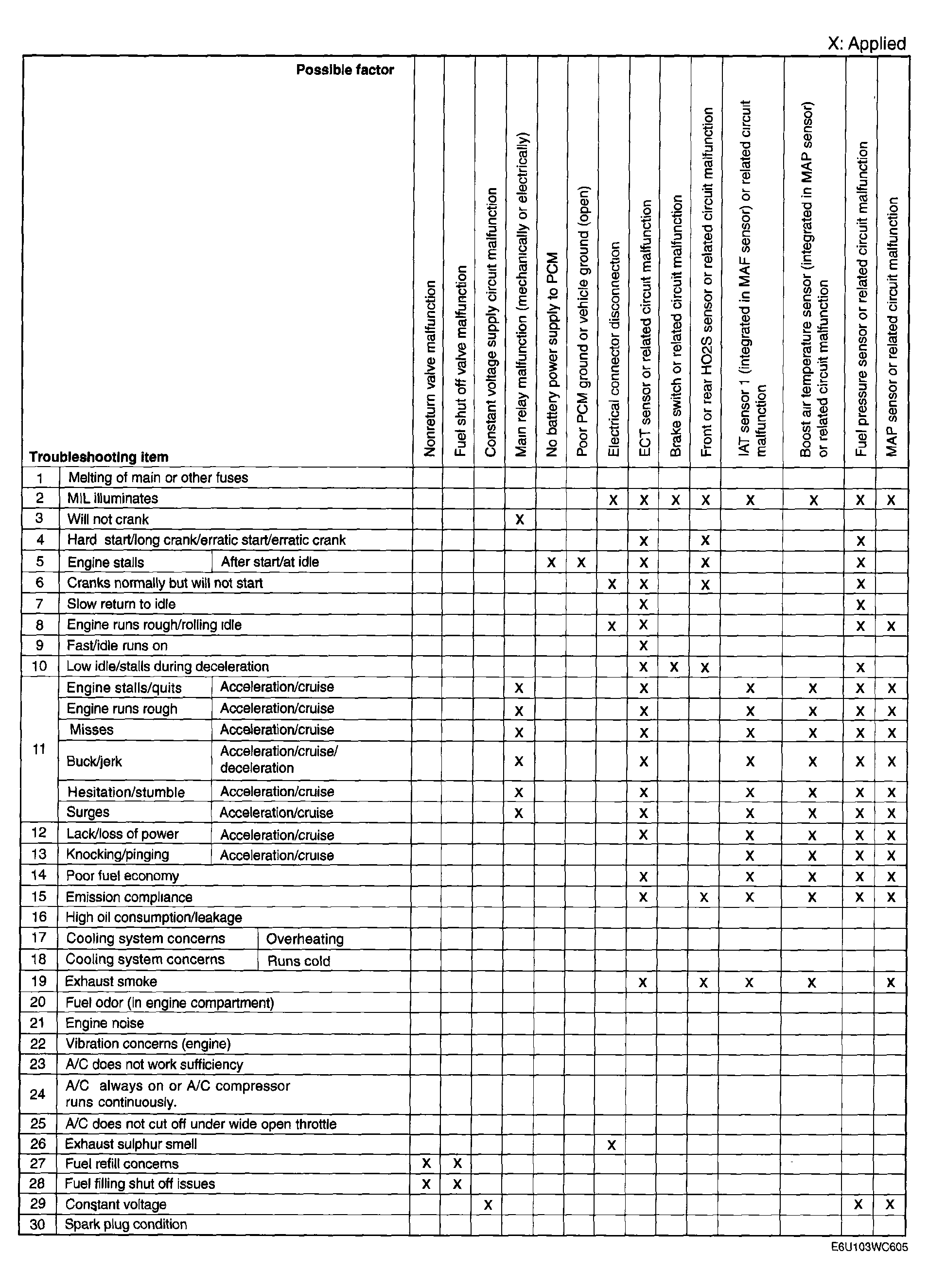

Fig 1: Quick Diagnostic Chart [L3 With TC] (1 Of 7)

Courtesy of MAZDA MOTORS CORP.

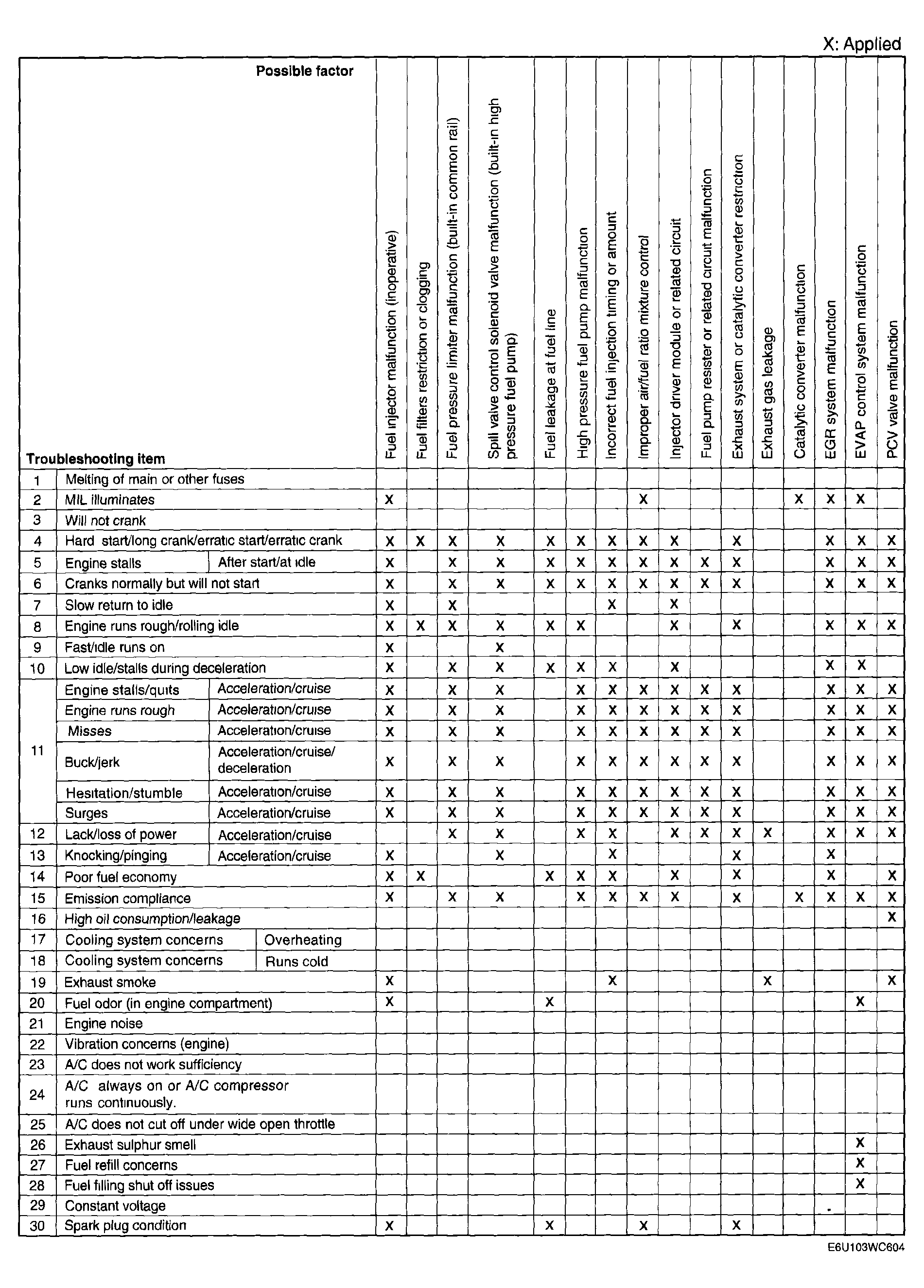

Fig 2: Quick Diagnostic Chart [L3 With TC] (2 Of 7)

Courtesy of MAZDA MOTORS CORP.

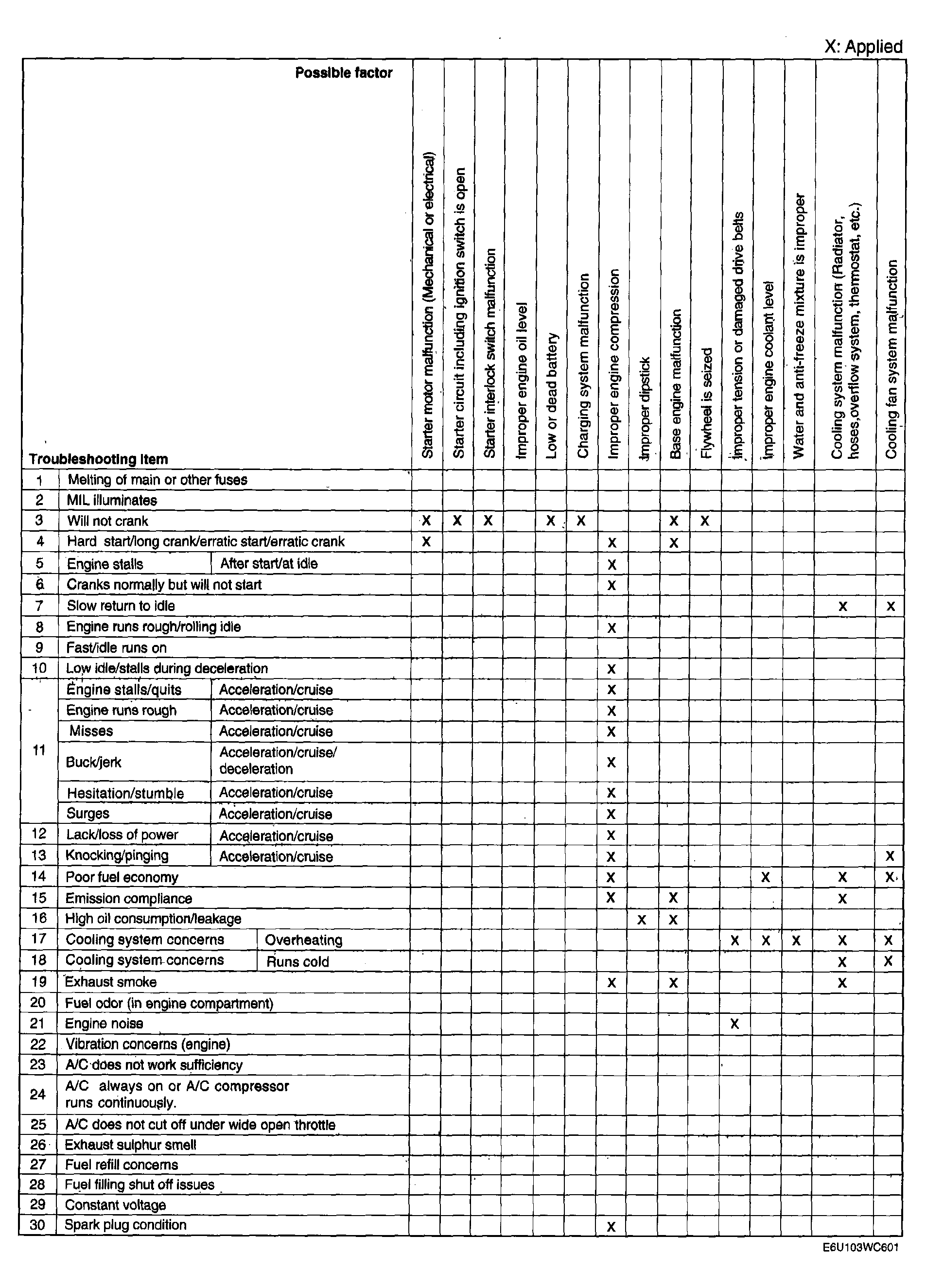

Fig 3: Quick Diagnostic Chart [L3 With TC] (3 Of 7)

Courtesy of MAZDA MOTORS CORP.

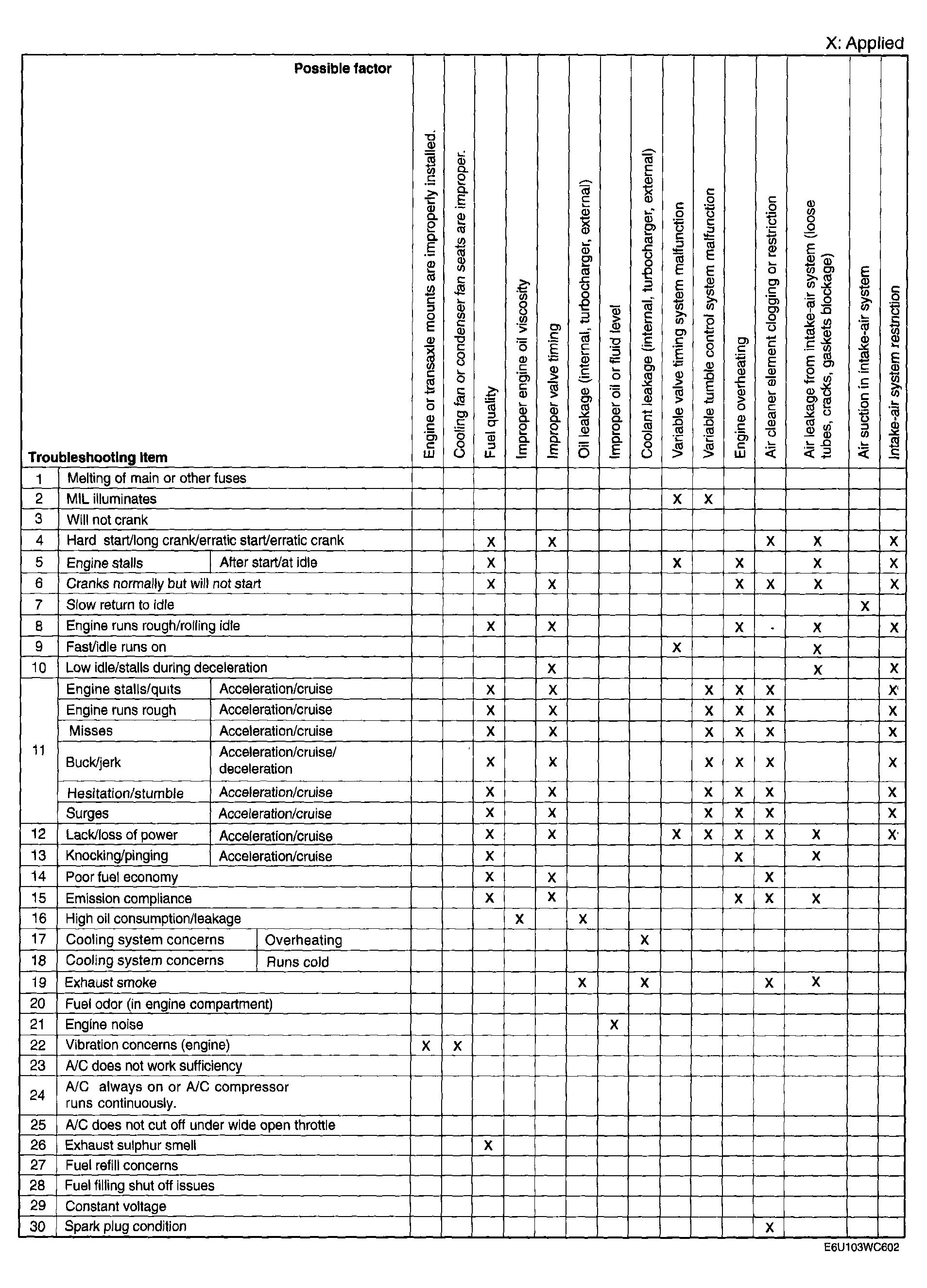

Fig 4: Quick Diagnostic Chart [L3 With TC] (4 Of 7)

Courtesy of MAZDA MOTORS CORP.

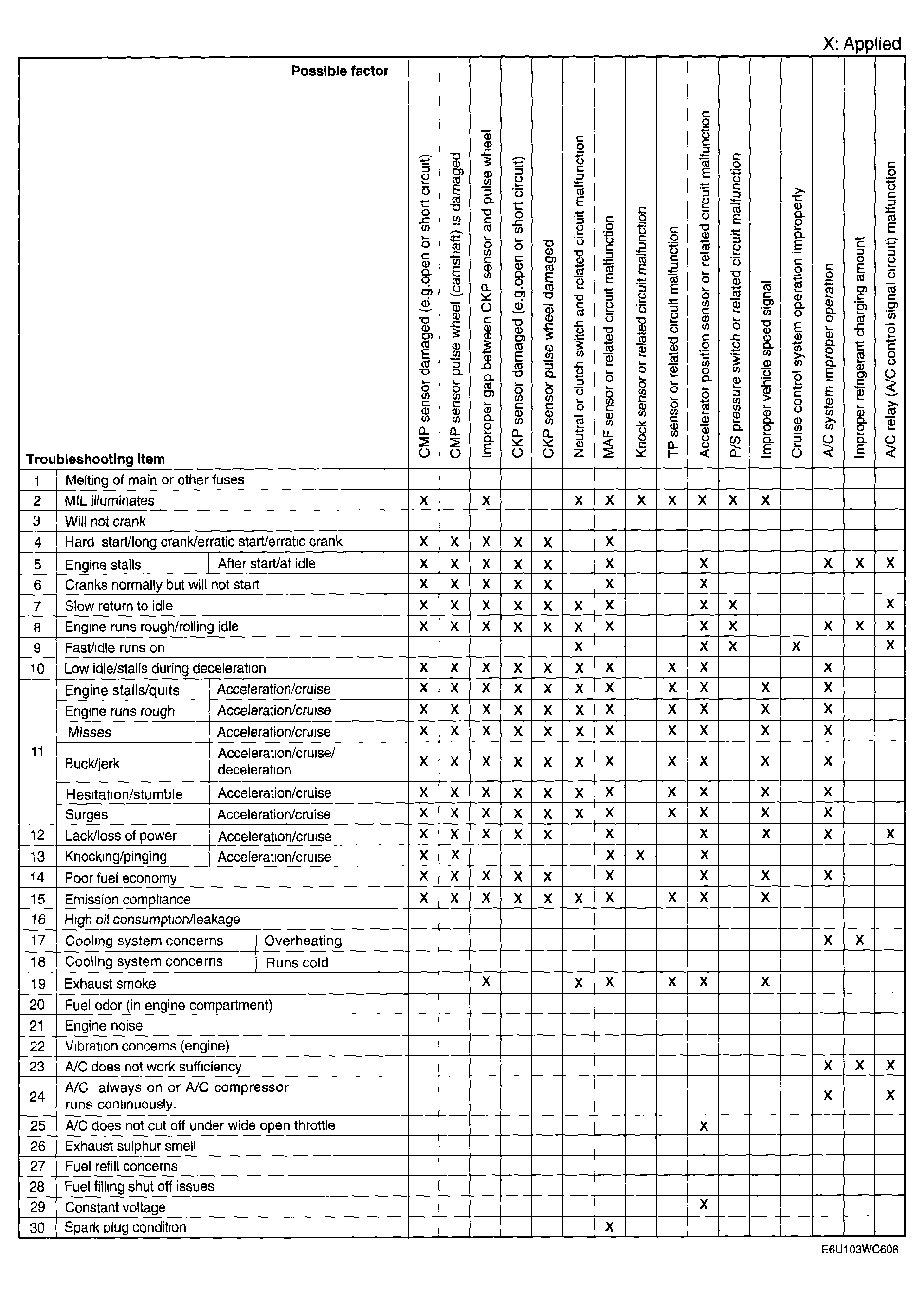

Fig 5: Quick Diagnostic Chart [L3 With TC] (5 Of 7)

Courtesy of MAZDA MOTORS CORP.

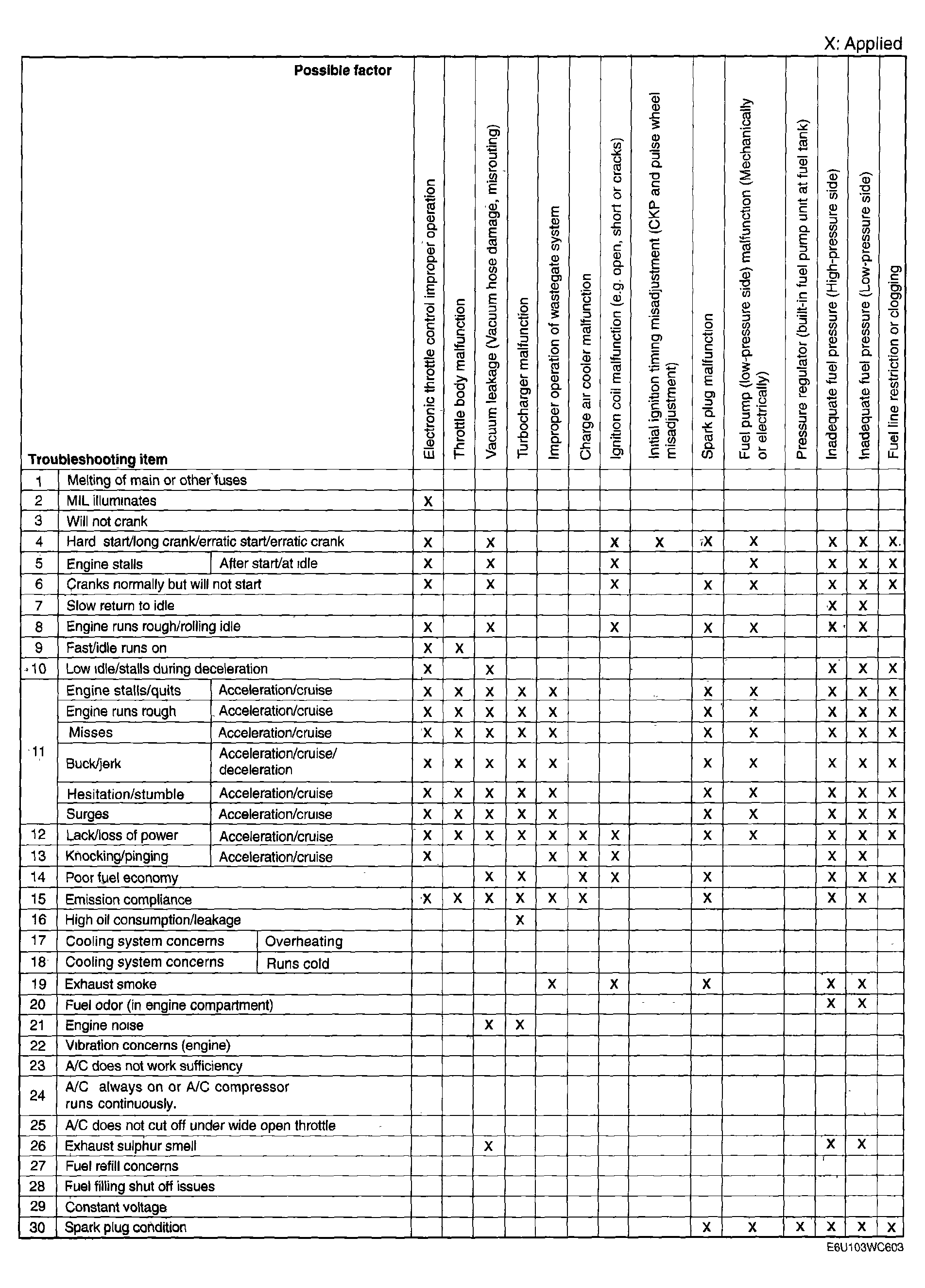

Fig 6: Quick Diagnostic Chart [L3 With TC] (6 Of 7)

Courtesy of MAZDA MOTORS CORP.

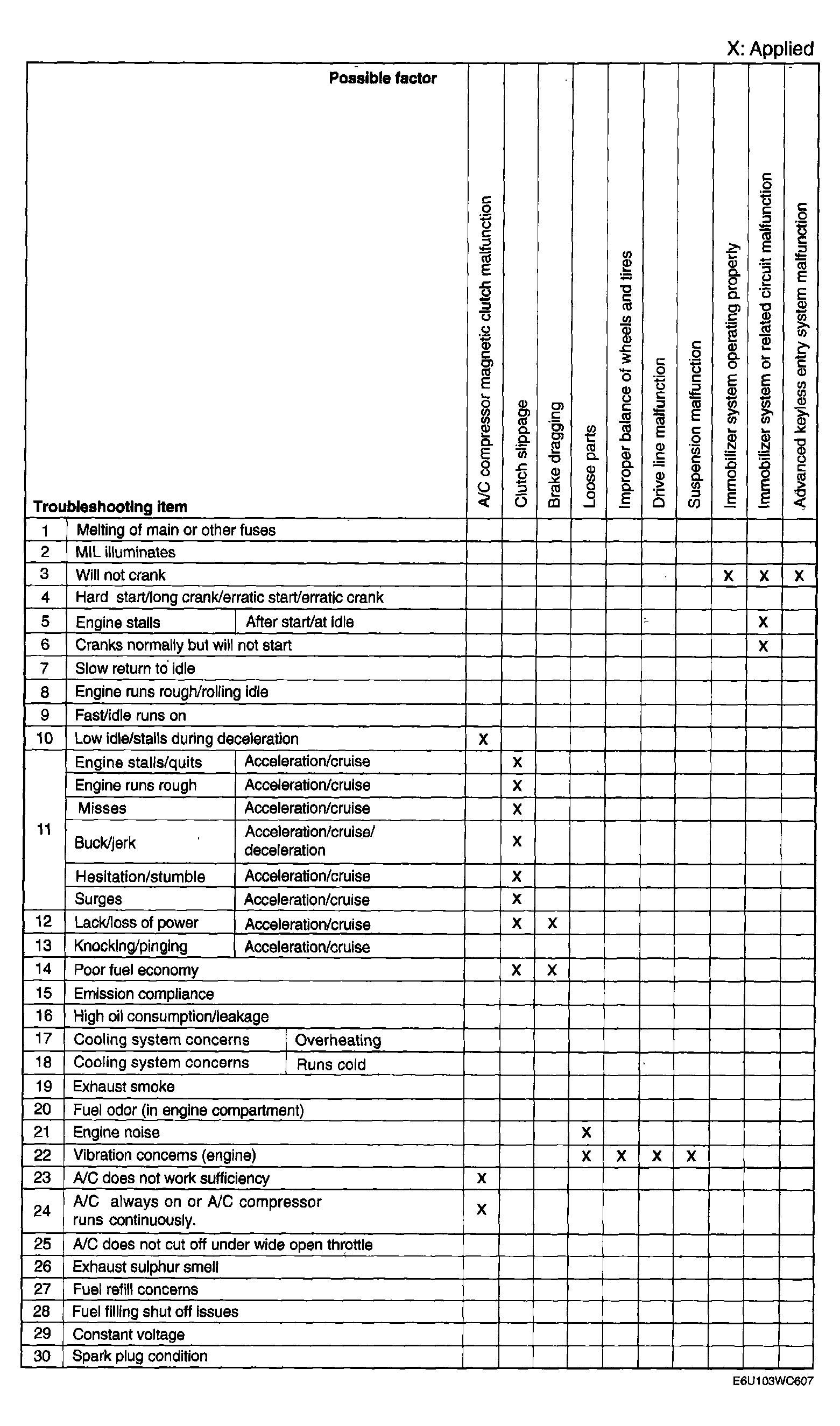

Fig 7: Quick Diagnostic Chart [L3 With TC] (7 Of 7)

Courtesy of MAZDA MOTORS CORP.
