Keyless Beeper

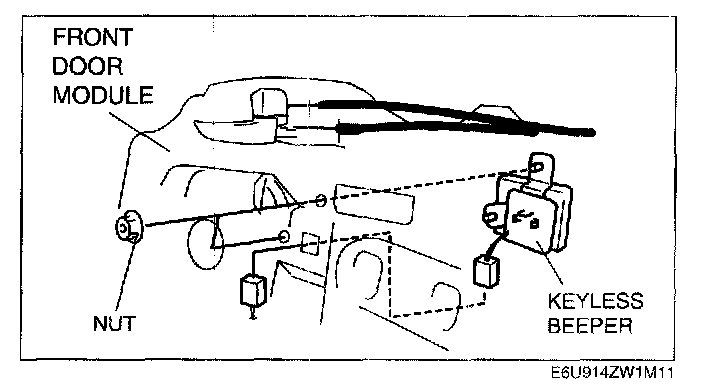

KEYLESS BEEPER REMOVAL/INSTALLATION




1. Disconnect the negative battery cable.
2. Remove the front door trim.
3. Remove the front door speaker.
4. Remove the screws.
5. Disconnect the connector.
6. Remove the keyless beeper from the speaker installation hole.
