Home >> Mazda >> 2007 >> 6 V6-3.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Control Module HVAC: Locations

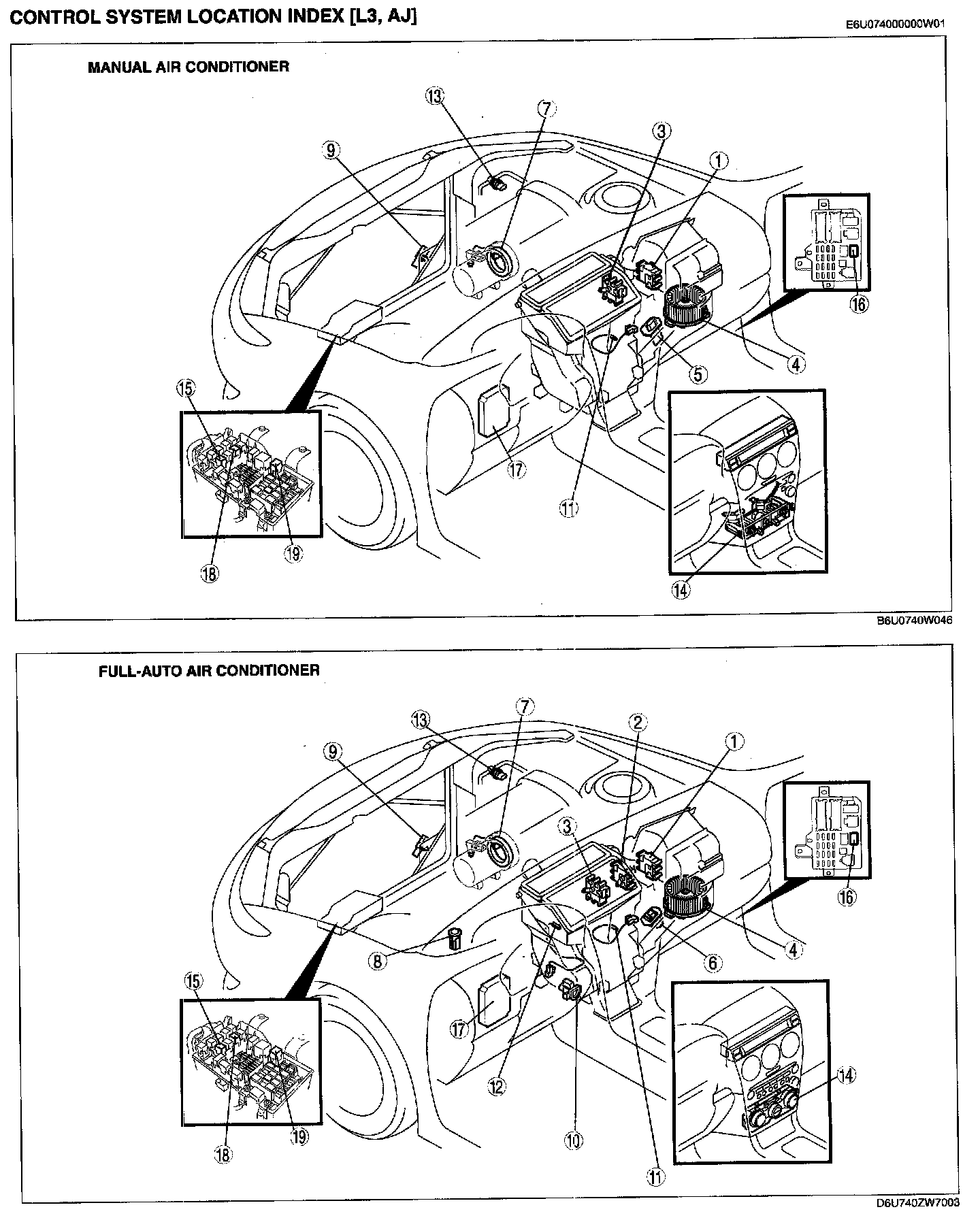

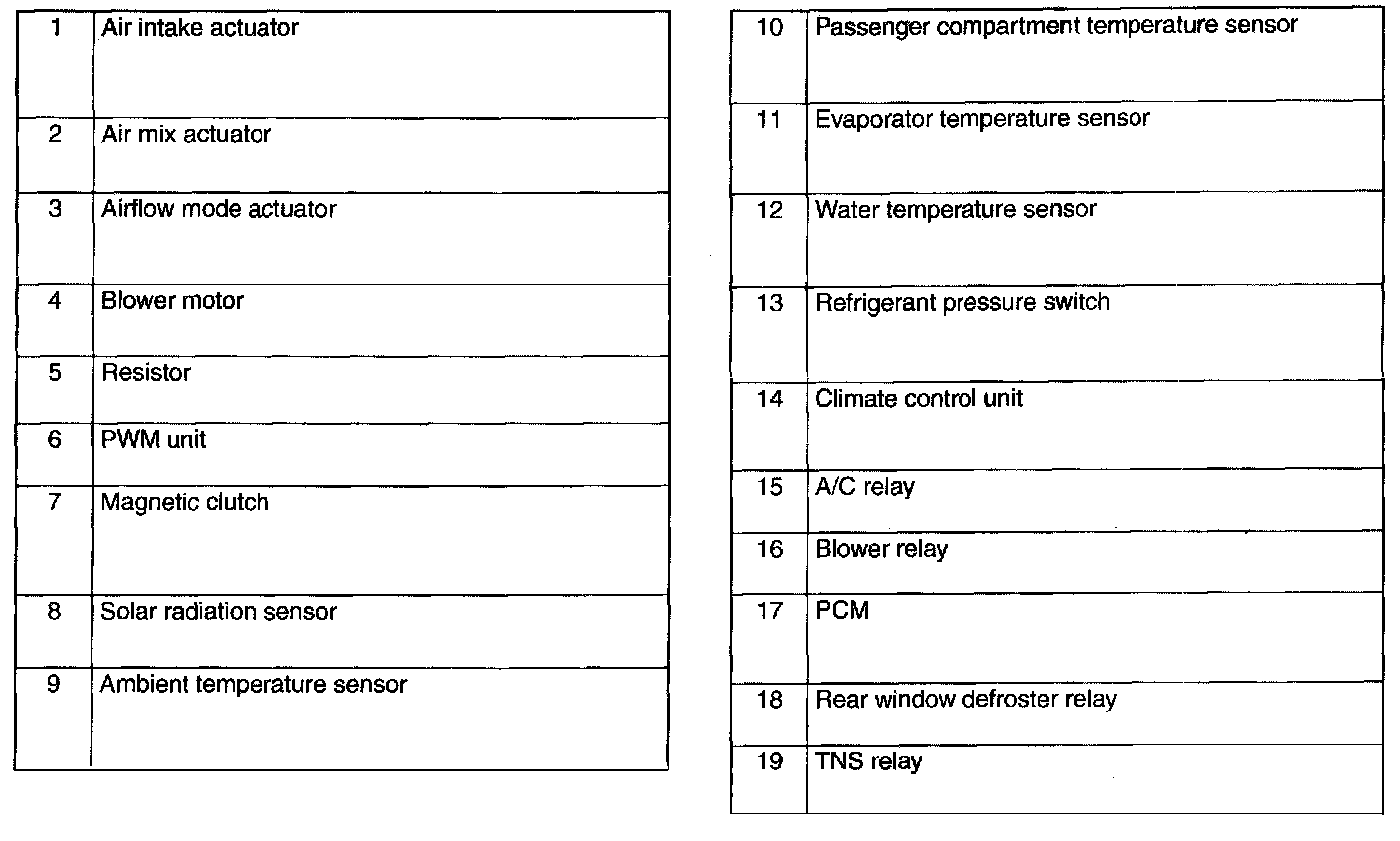

Control System Location Index:



Control System Location Index:
