Pinout Values and Diagnostic Parameters

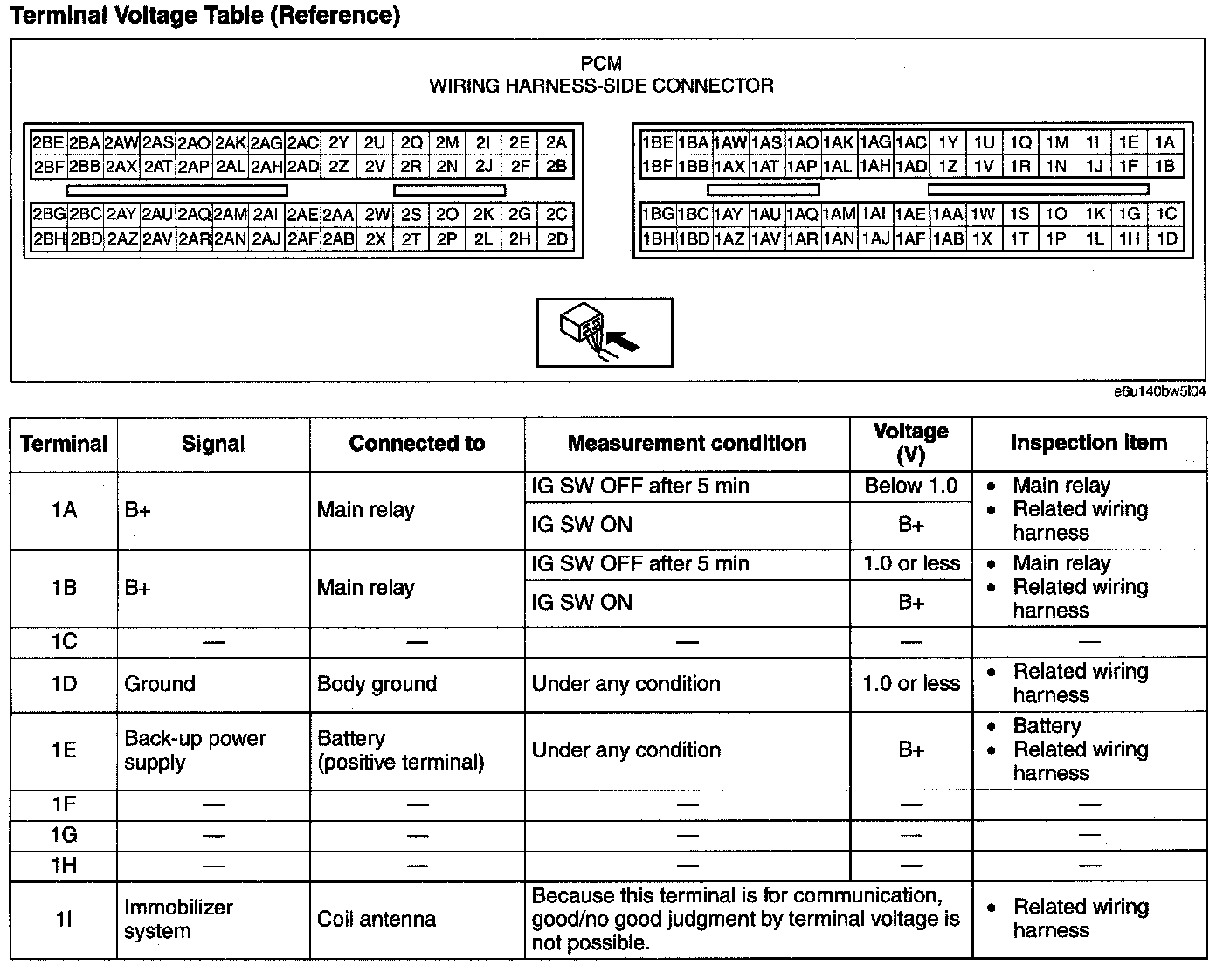

Terminal Voltage Table(Reference)-Terminal(1A-1I):

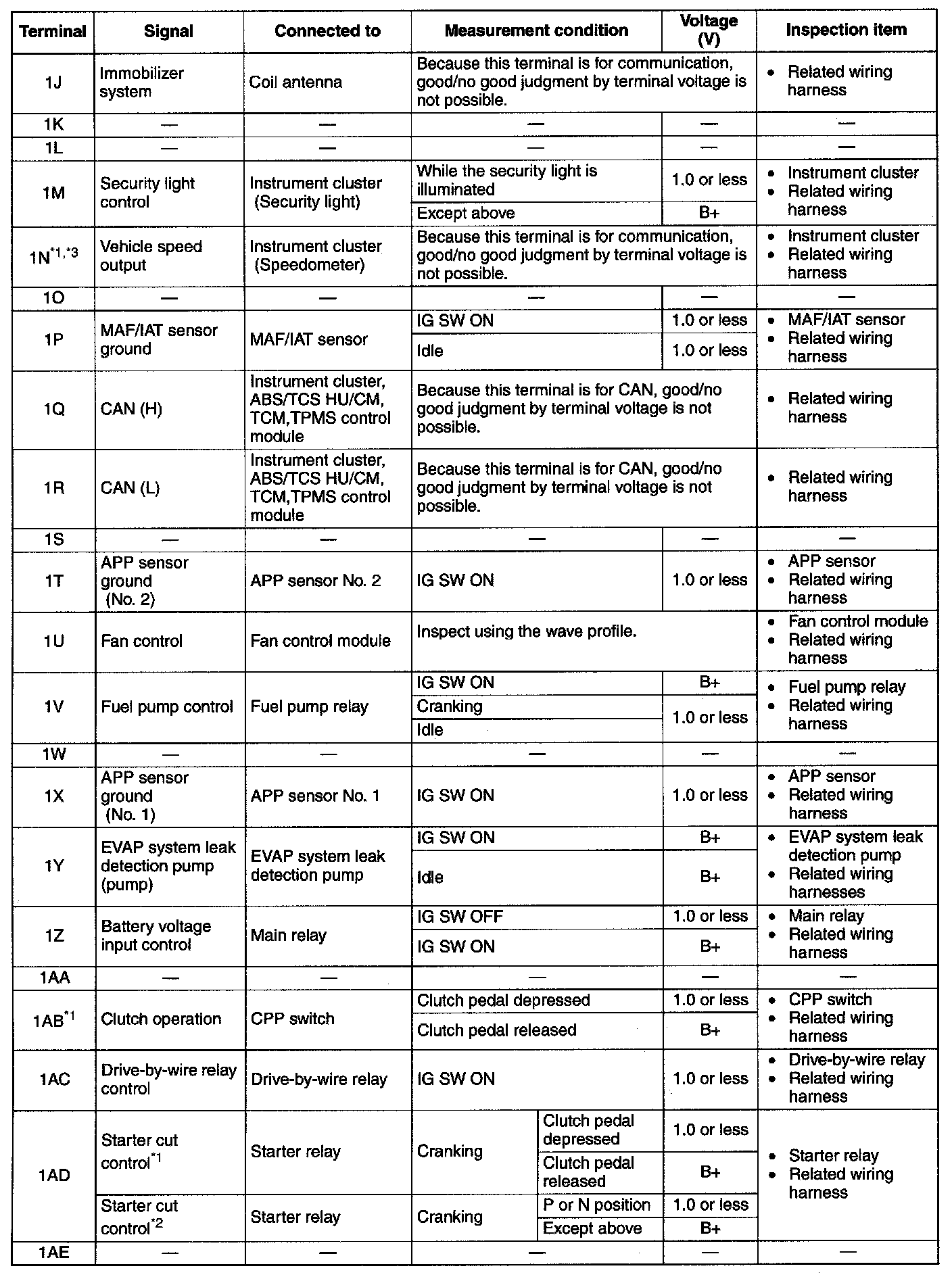

Terminal Voltage Table(Reference)-Terminal(1J-1AE):

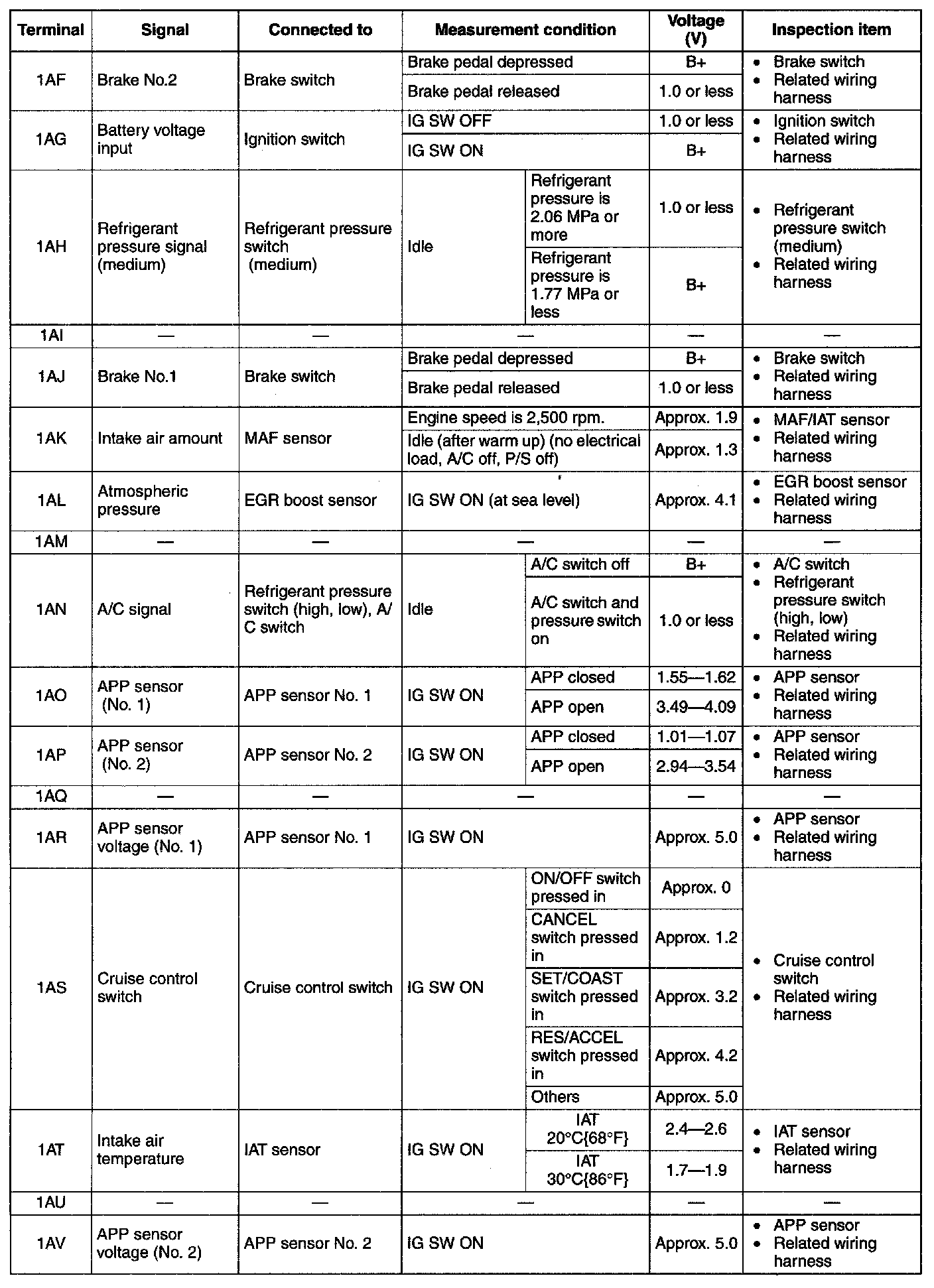

Terminal Voltage Table(Reference)-Terminal(1AF-1AV):

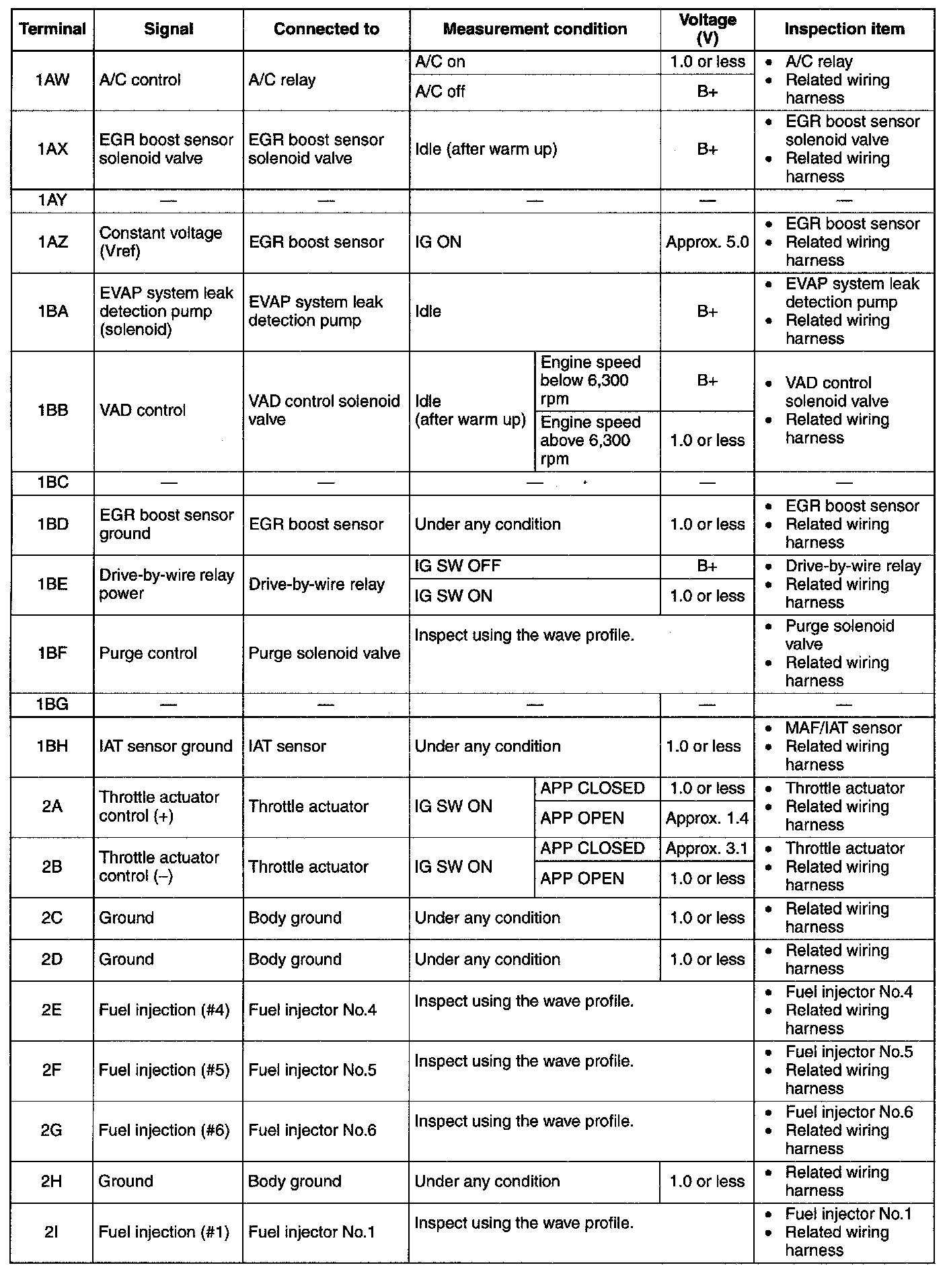

Terminal Voltage Table(Reference)-Terminal(1AW-2I):

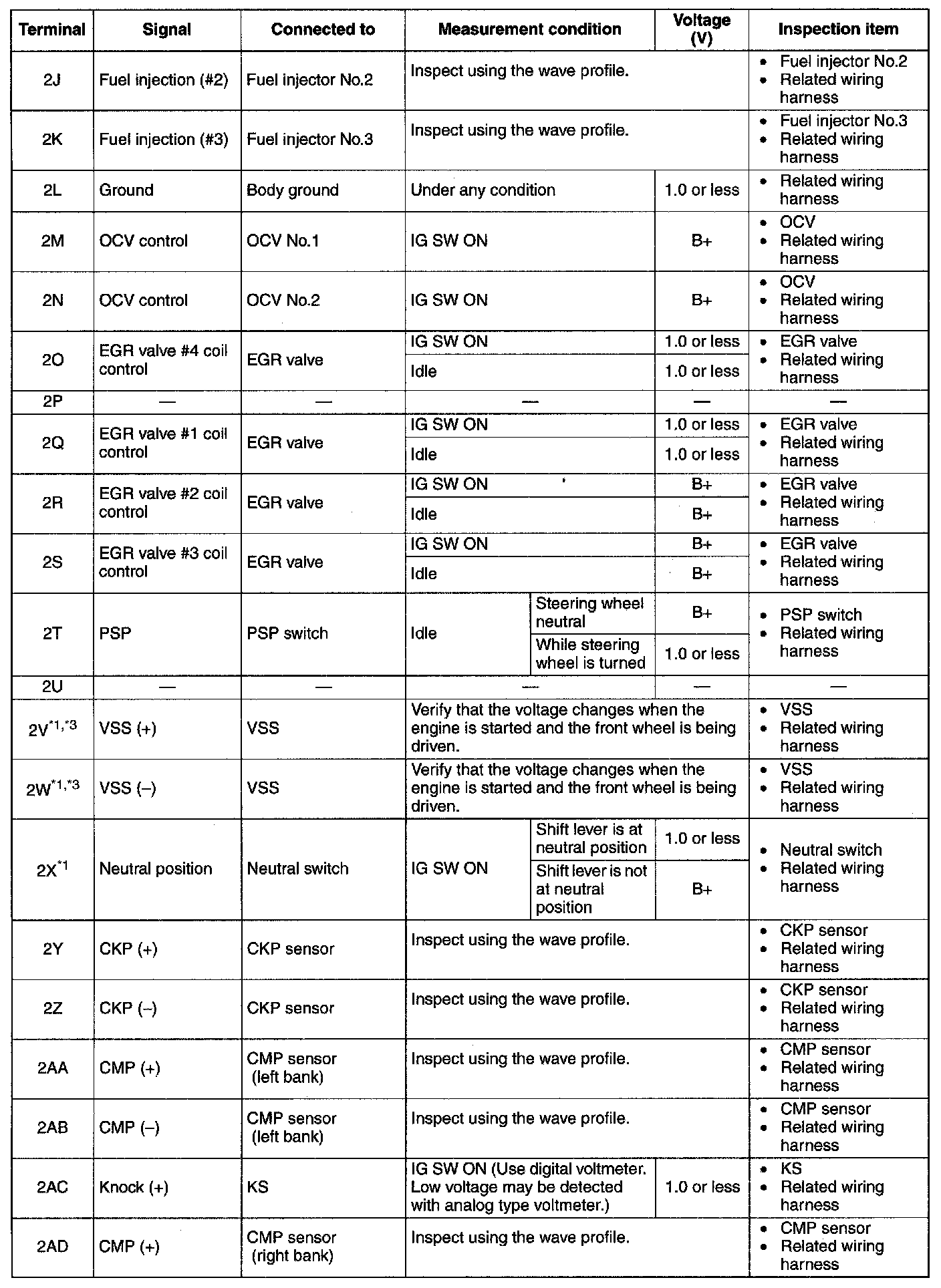

Terminal Voltage Table(Reference)-Terminal(2J-2AD):

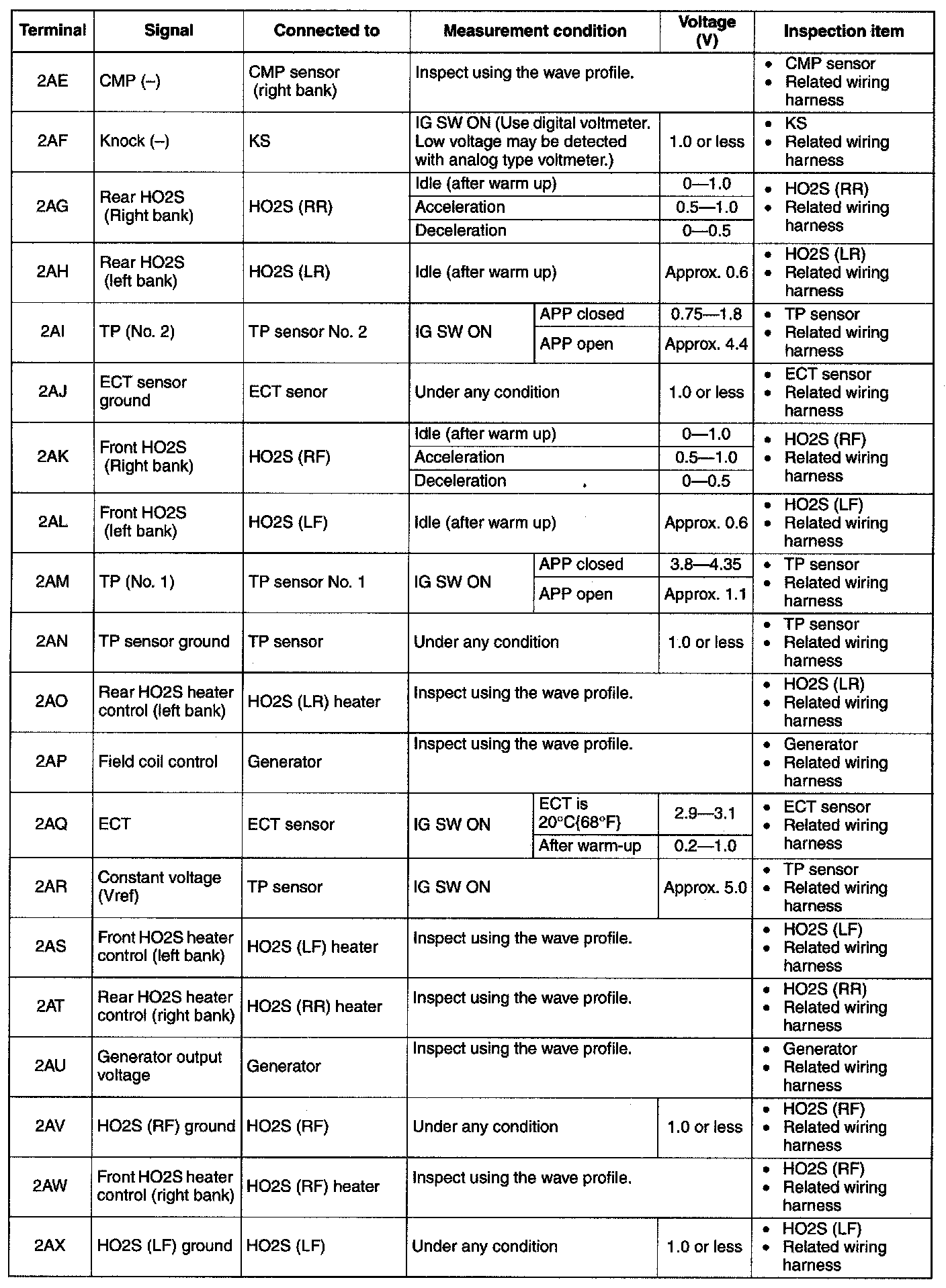

Terminal Voltage Table(Reference)-Terminal(2AE-2AX):

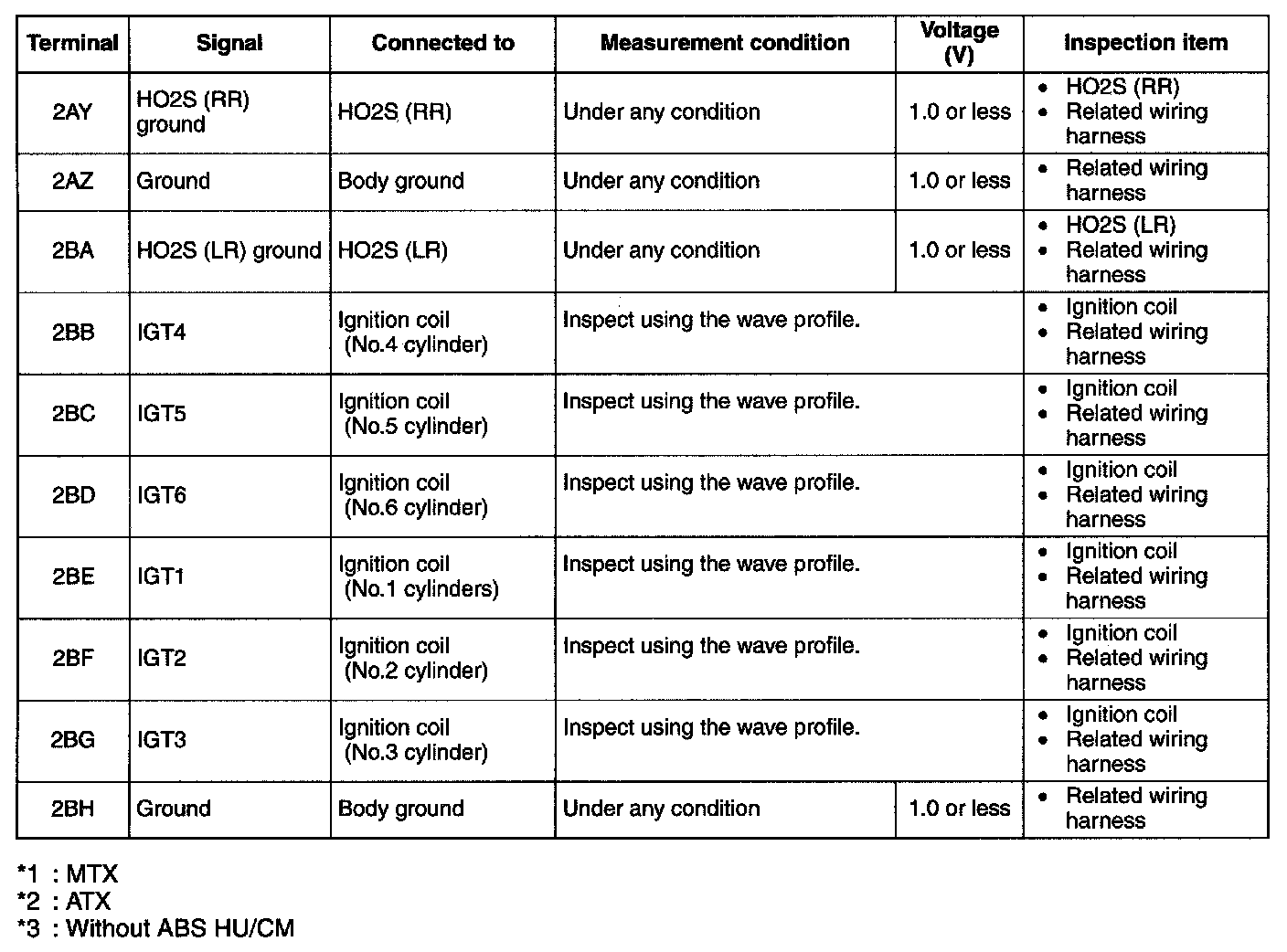

Terminal Voltage Table(Reference)-Terminal(2AY-2BH):
