Knock Sensor: Testing and Inspection

KNOCK SENSOR (KS) INSPECTION(AJ]

NOTE: Perform the following inspection only when directed.

Resistance Inspection
1. Disconnect the negative battery cable.
2. Disconnect the KS connector.

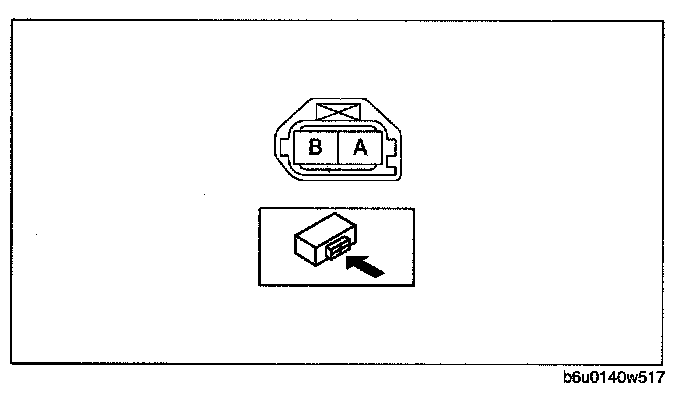

3. Measure the resistance between KS terminals A and B using an ohmmeter.
- If the KS is okay, but the PID value is out of specification, perform the "Circuit Open/Short Inspection".
- If not as specified, replace the KS.

Specification: Approx. 4.87 megohms (20°C {68°F))




Circuit Open/Short Inspection
1. Disconnect the PCM connector.

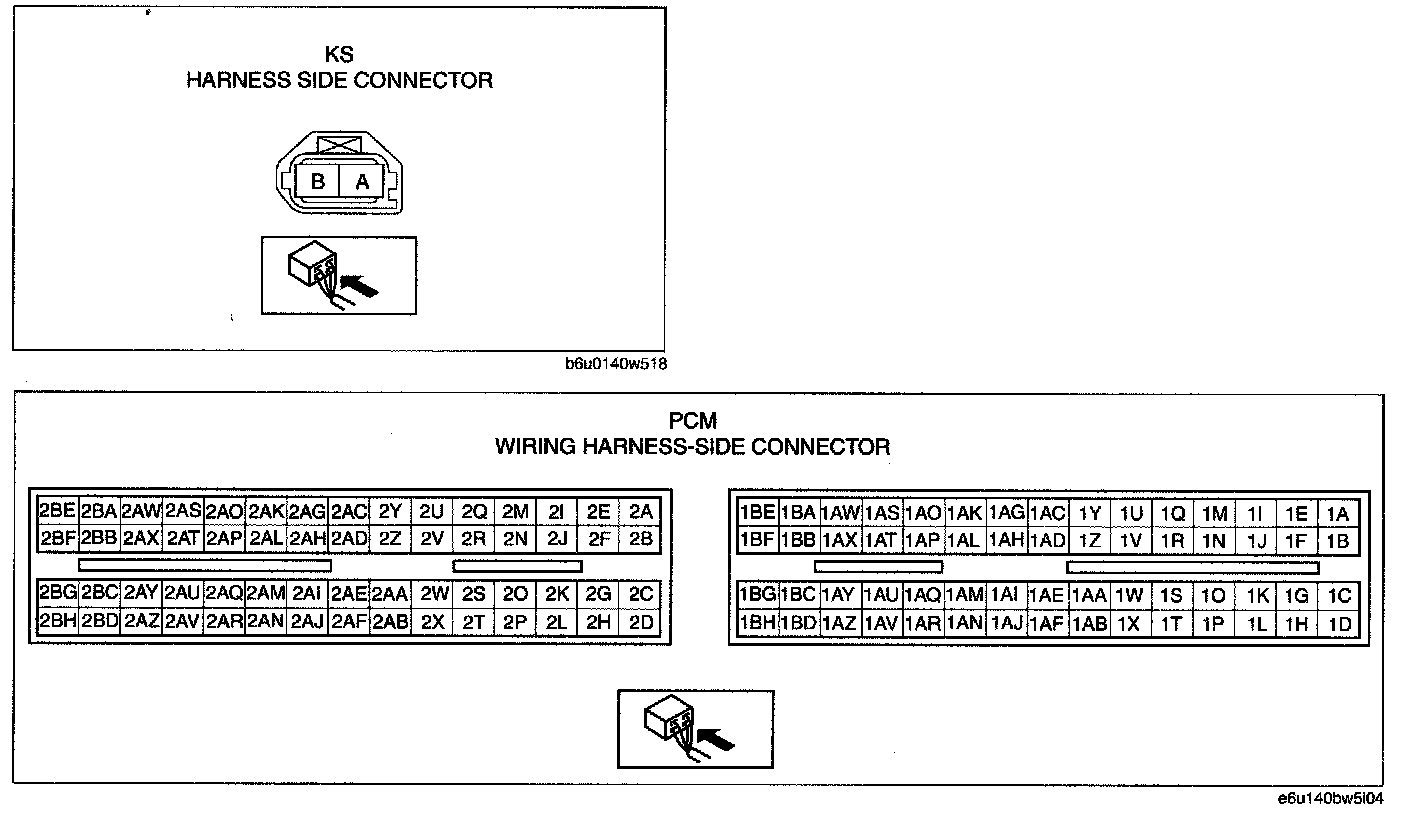

2. Inspect the following harness for open or short circuit. (Continuity check)

Open circuit
- KS terminal B and PCM terminal 2AC
- KS terminal A and PCM terminal 2AF

Short circuit
- KS terminal A and power supply
- KS terminal A and body ground
- KS terminal B and power supply
- KS terminal B and body ground
