Main Relay (Computer/Fuel System): Testing and Inspection

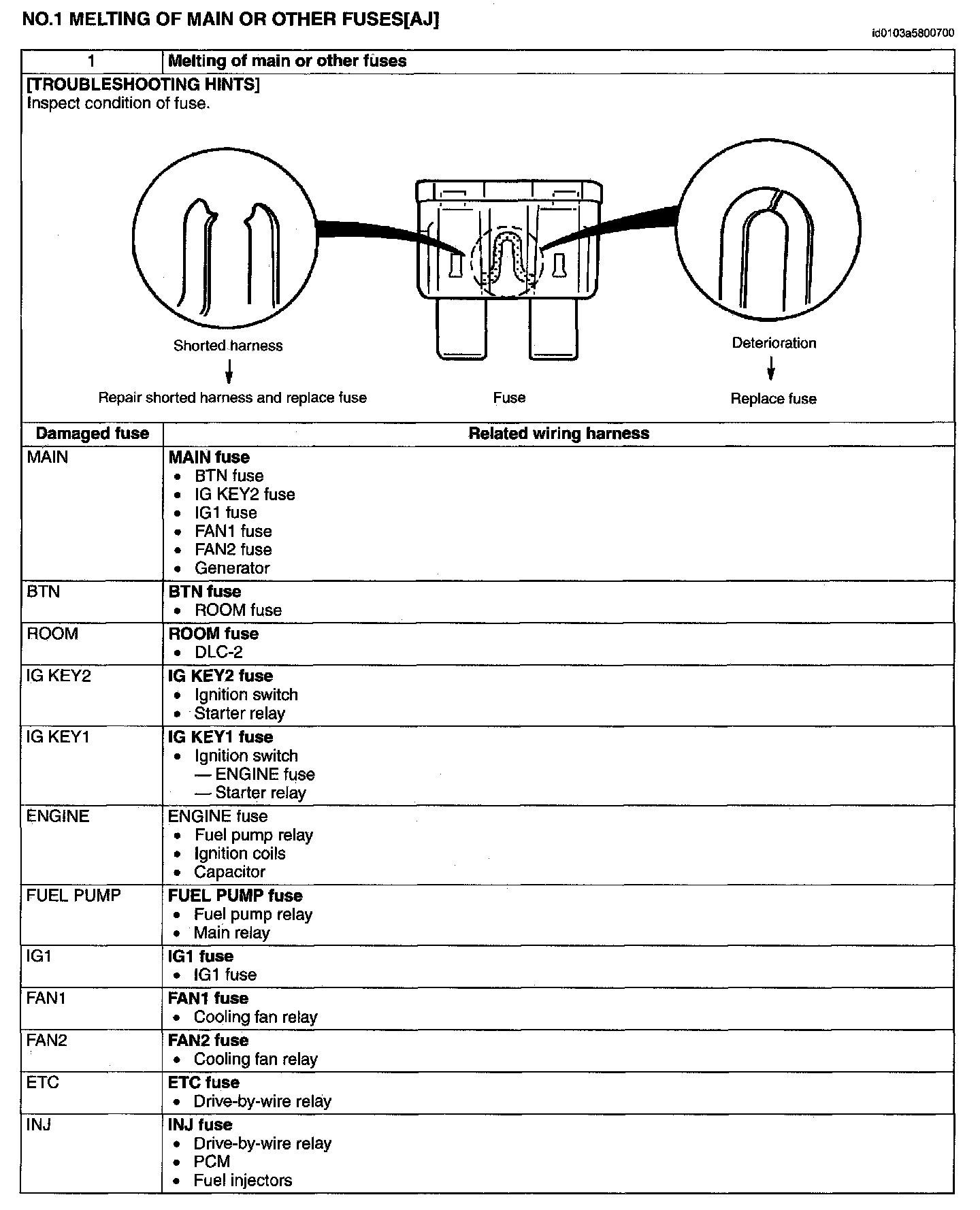

No.1 Melting Of Main Or Other Fuses[AJ] (Part 1):

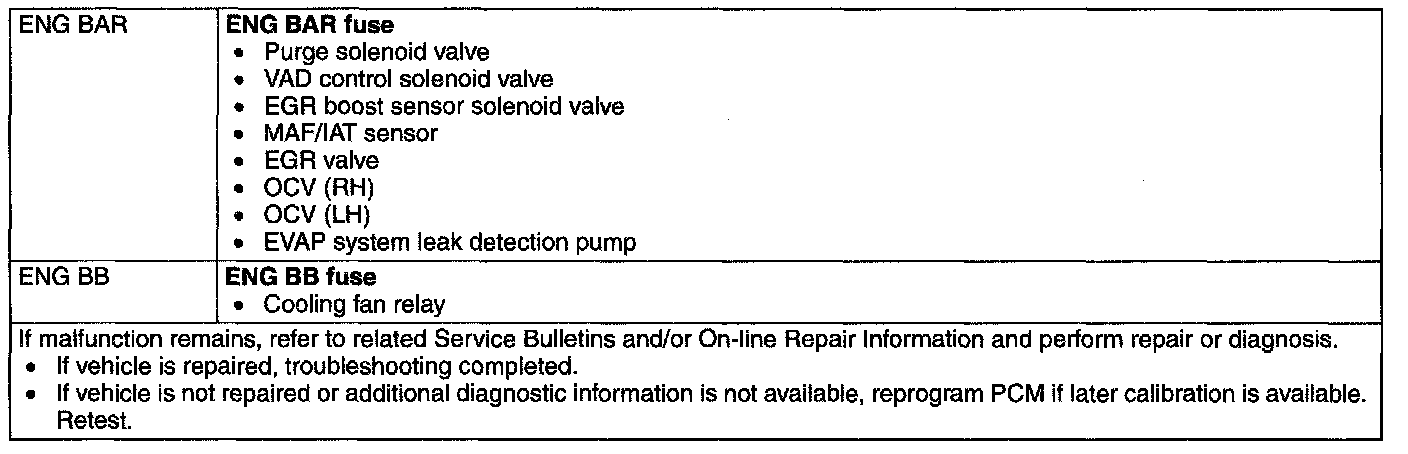

No.1 Melting Of Main Or Other Fuses[AJ] (Part 2):
