Engine Control Module: Locations

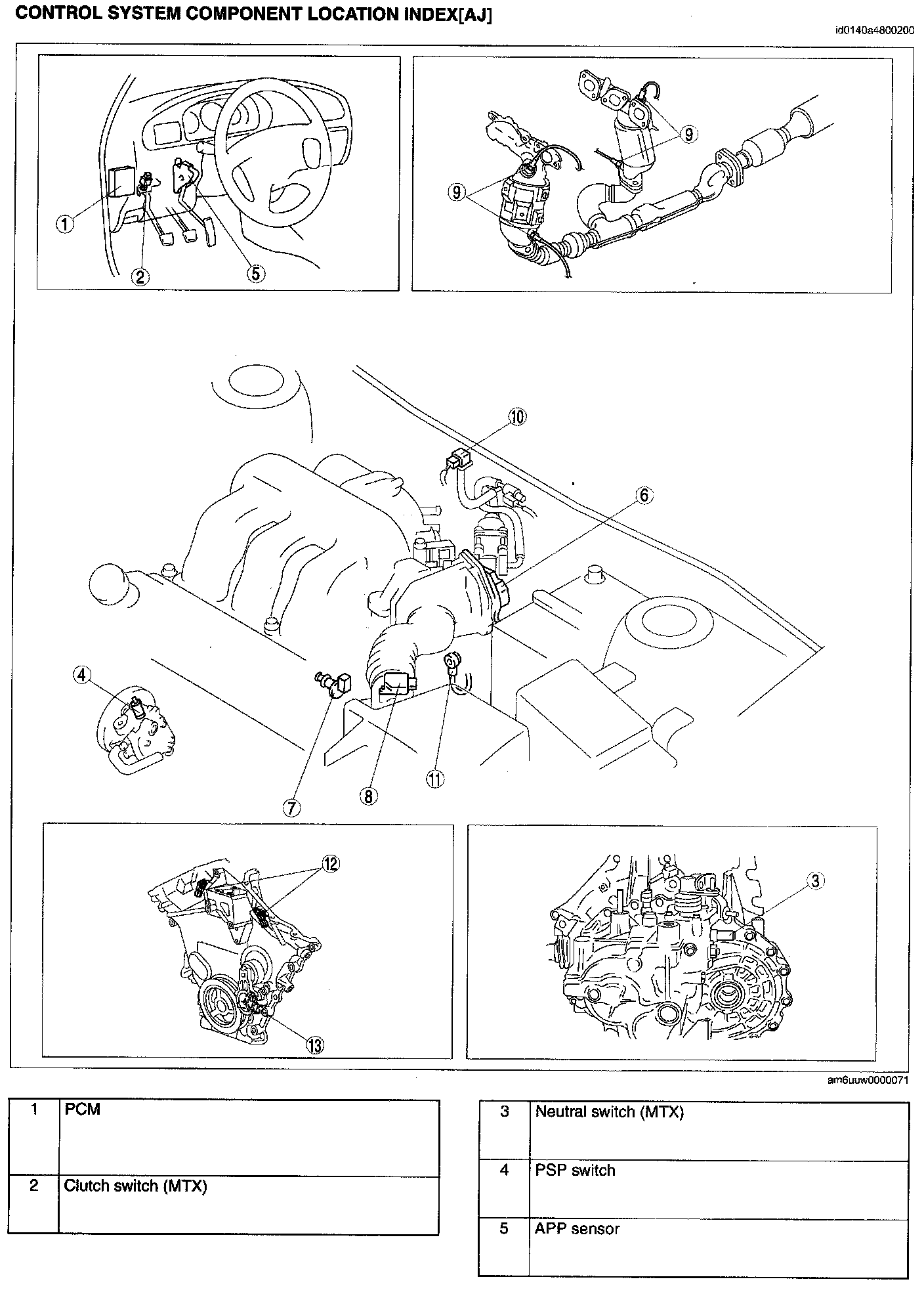

Control System Component Location Index[AJ] (Part 1):

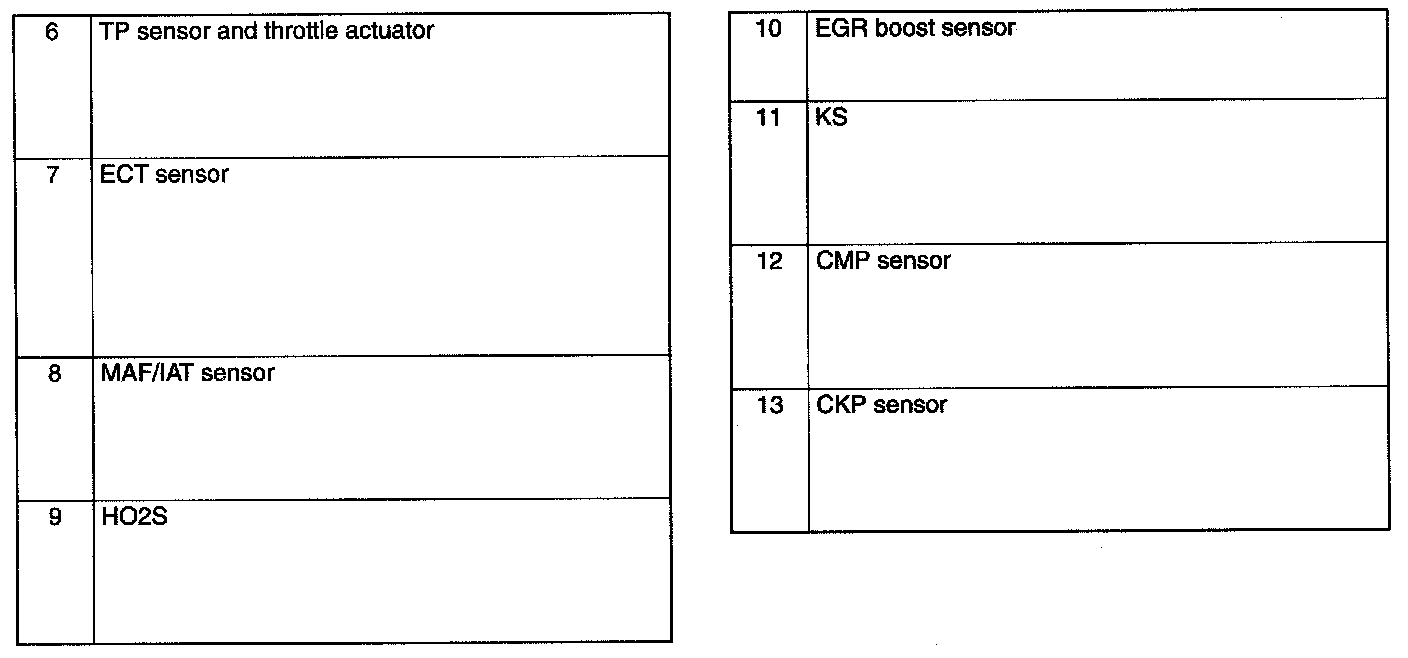

Control System Component Location Index[AJ] (Part 2):
