Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Transmission Temperature Sensor/Switch, A/T
>>
[FS5A-EL]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
[FS5A-EL]

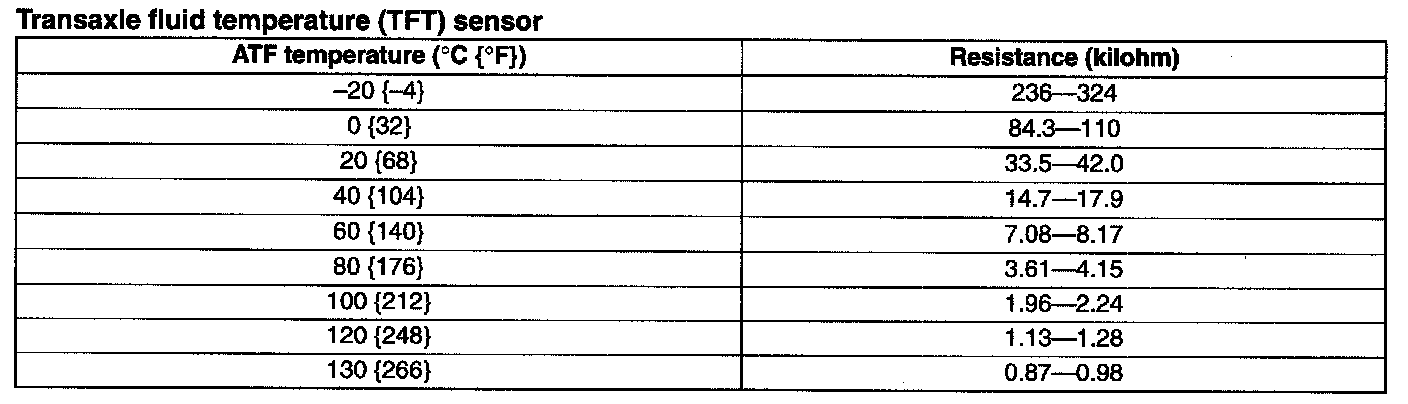

Transaxle fluid temperature (TFT) sensor
Transaxle Fluid Temperature (TFT) Sensor:
