Oil Pan, Engine

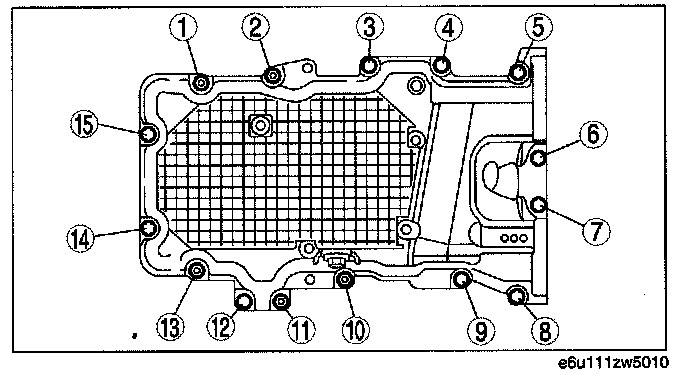

Oil Pan (L3)





Tighten the bolts in the order shown in the figure.
Tightening torque 17 - 23 Nm (1.8 - 2.3 kgf.m, 12.6 - 16.9 ft. lbf)

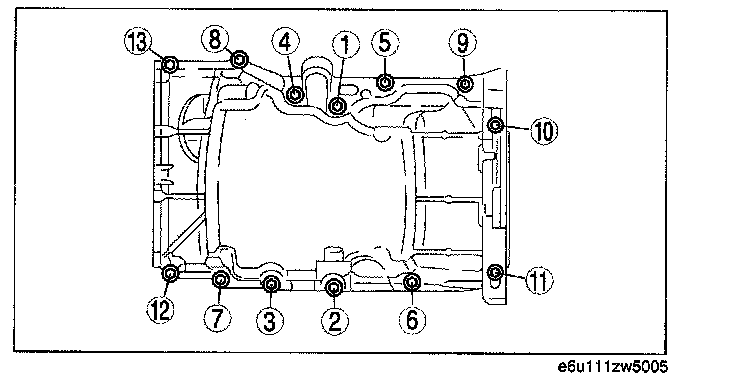

Oil Pan (AJ)





Tighten the oil pan bolts and studs in several passes in the order shown in the figure.
Tightening torque 20 - 30 Nm (2.0 - 3.1 kgf.m, 15 - 22 ft. lbf)
