Antilock Brakes / Traction Control Systems

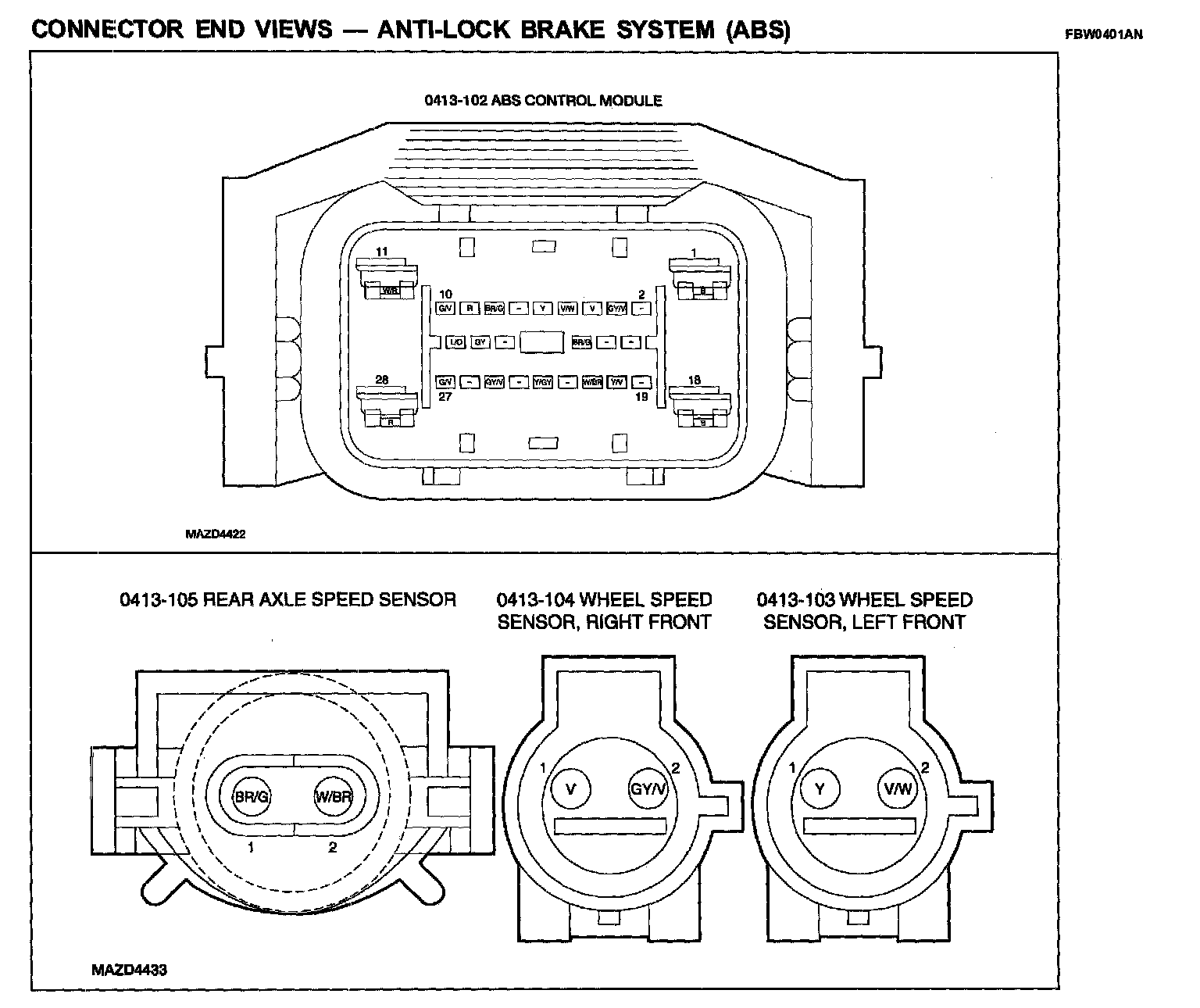

CONNECTOR END VIEWS - ANTI-LOCK BRAKE SYSTEM (ABS) (Part 1):



CONNECTOR END VIEWS - ANTI-LOCK BRAKE SYSTEM (ABS) (Part 2):
