Drive/Propeller Shaft

PROPELLER SHAFT STRUCTURAL VIEW

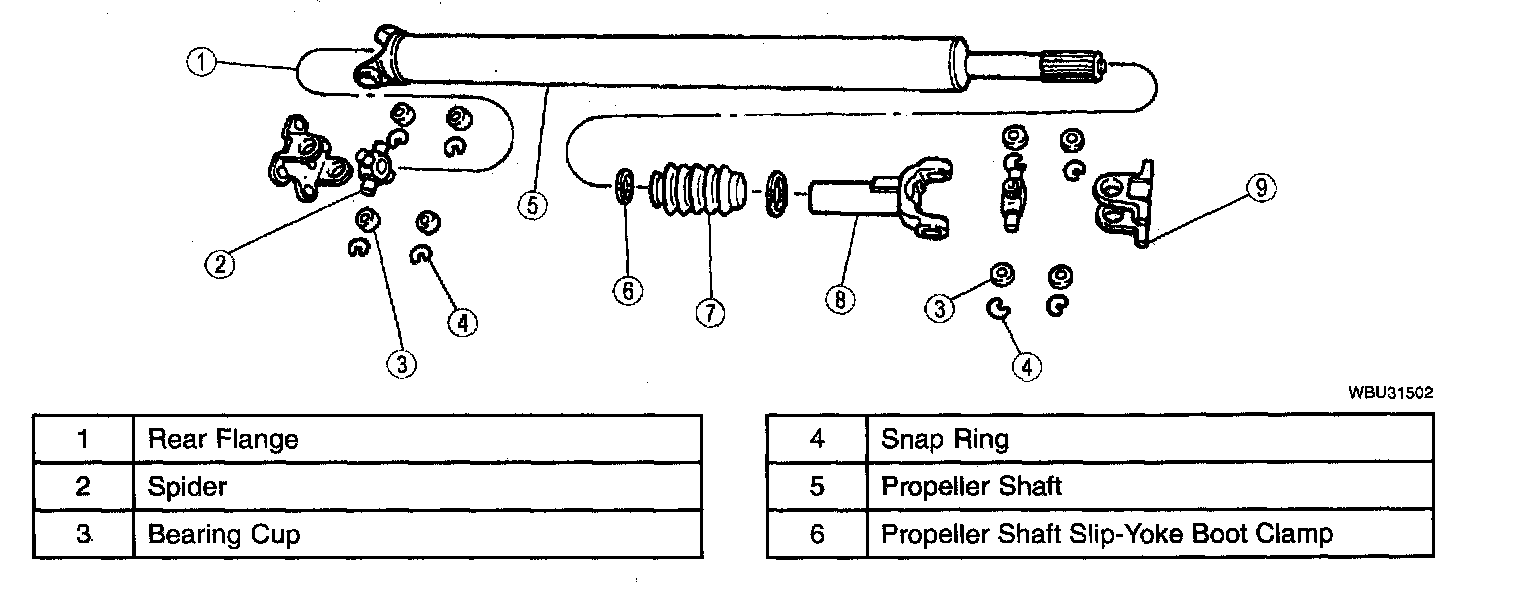

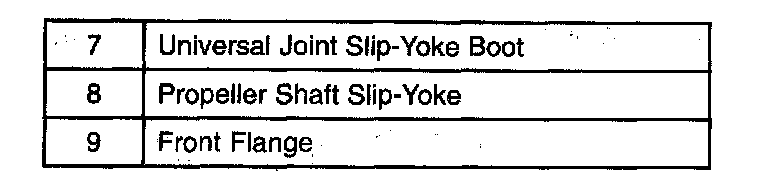

Front Propeller Shaft (4x4)

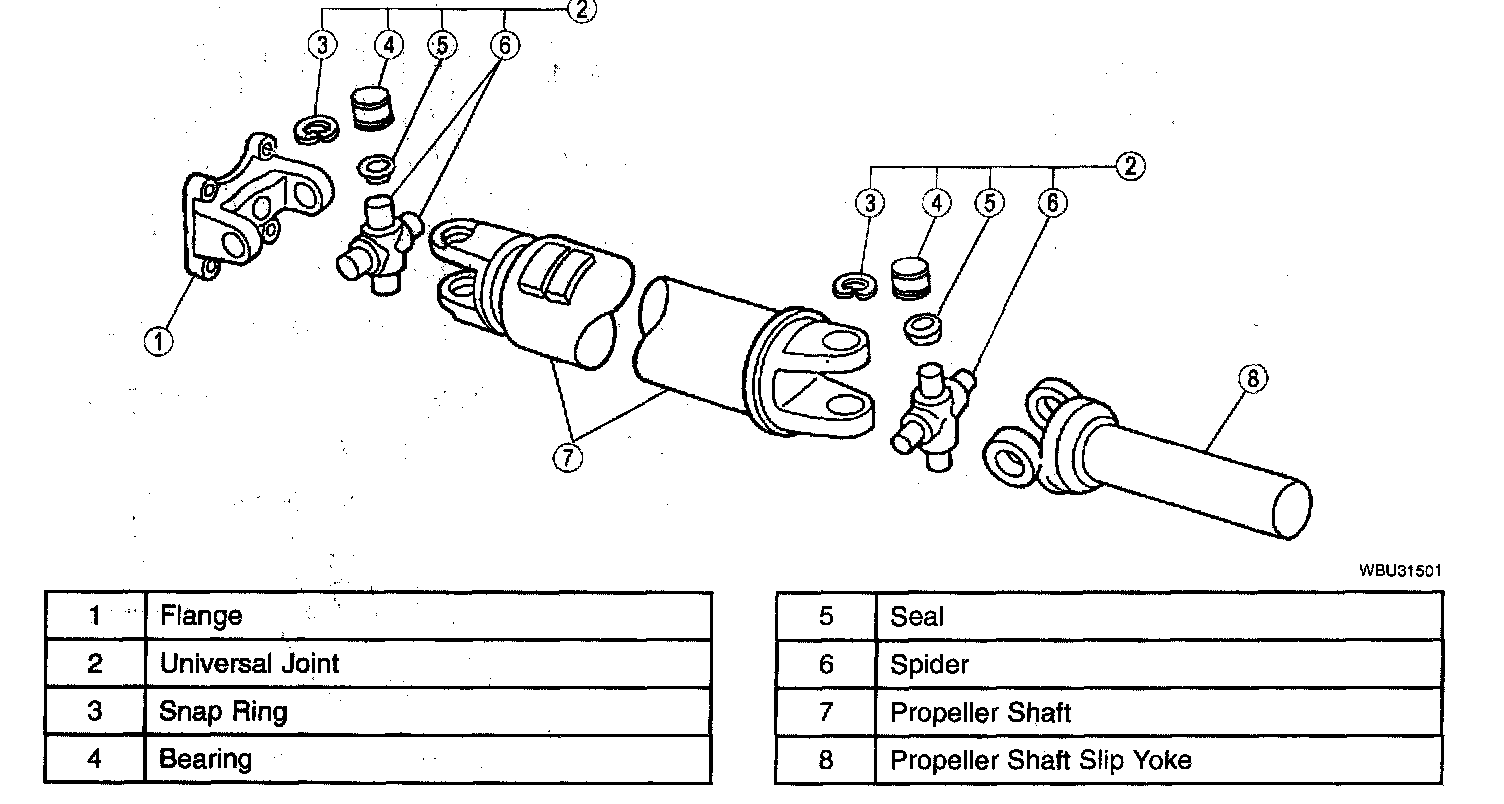

Rear Propeller Shaft (4x4)

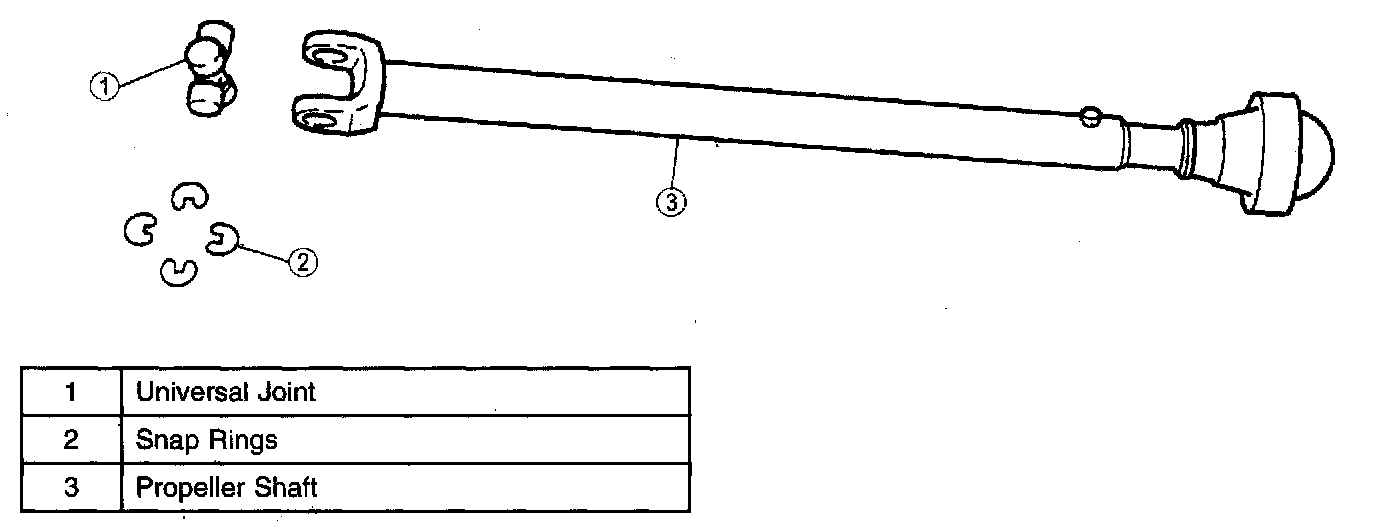

Rear Propeller Shaft (4x2)
