Coolant Temperature Sensor/Switch (For Computer): Service and Repair

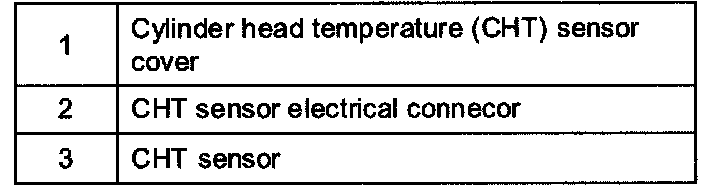

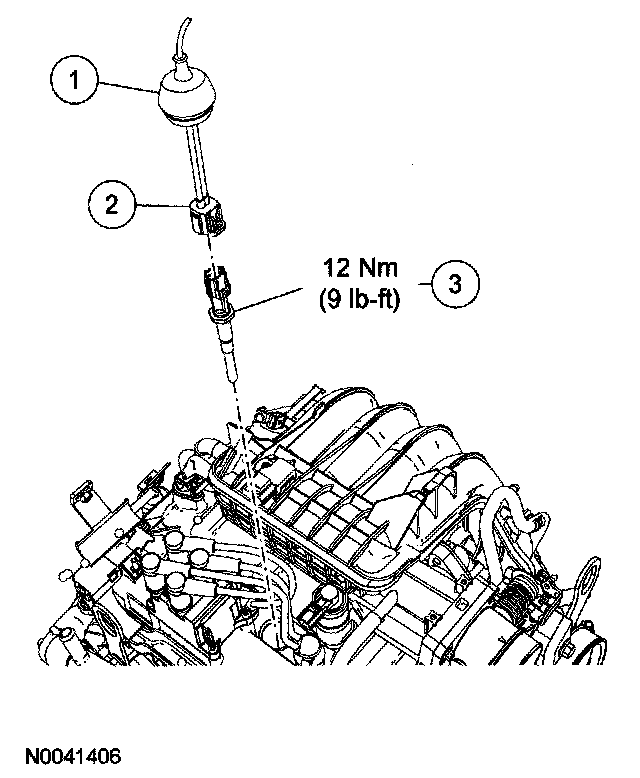

CYLINDER HEAD TEMPERATURE (CHT) SENSOR REMOVAL / INSTALLATION - 2.3L




1. Disconnect the negative battery cable. See BATTERY DISCONNECT.

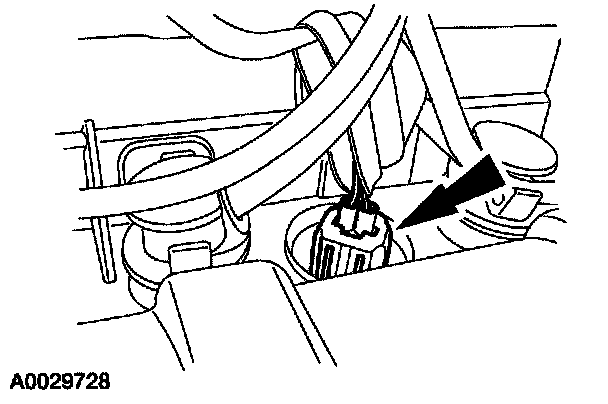

2. Pull back the cylinder head temperature (CHT) sensor cover and disconnect the electrical connector.

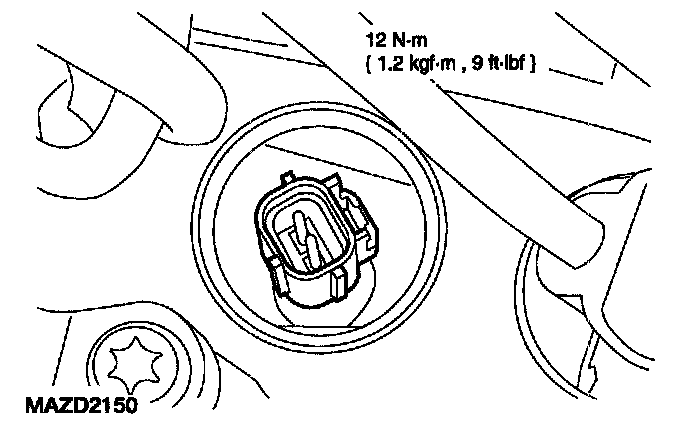

3. Remove the CHT sensor.
4. To install, reverse the removal procedure.
