Knock Sensor: Service and Repair

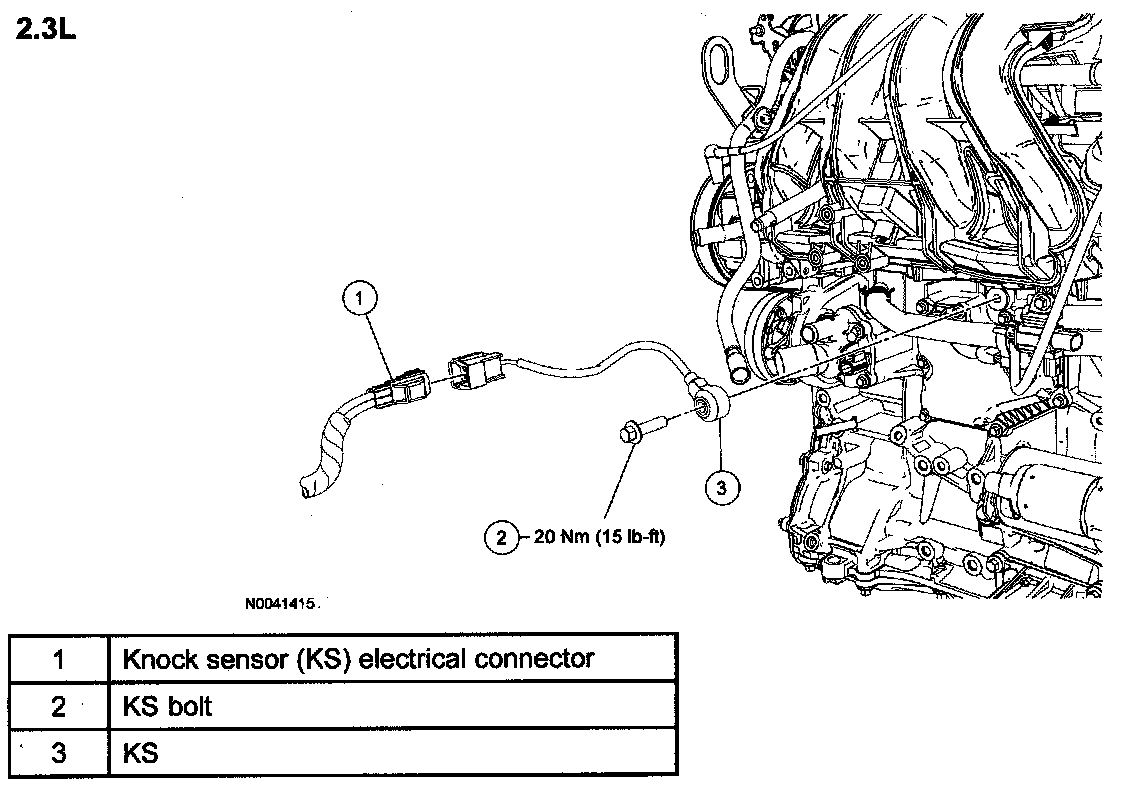

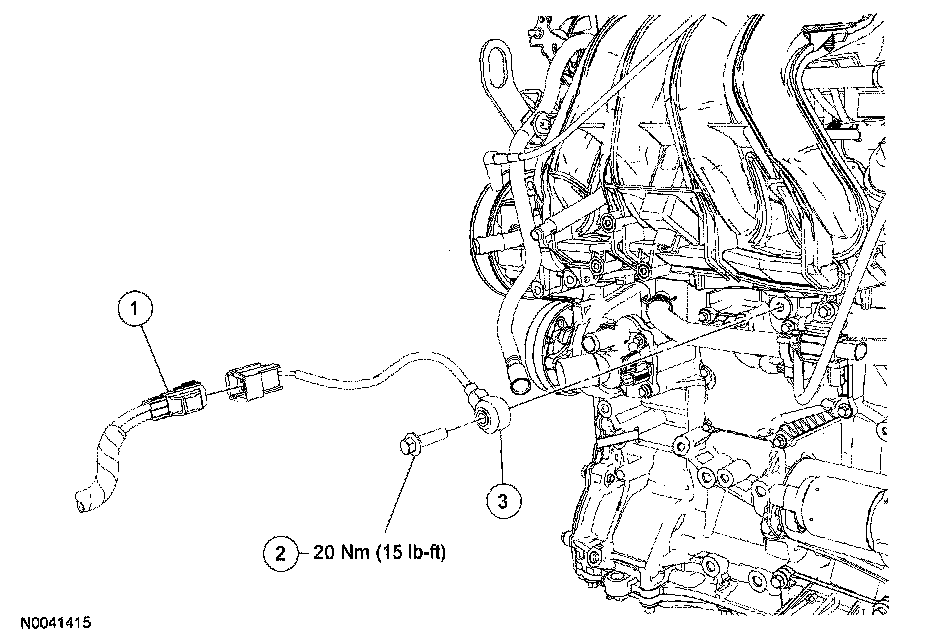

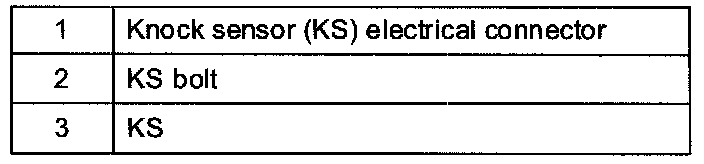

KNOCK SENSOR (KS) REMOVAL / INSTALLATION - 2.3L











1. Disconnect the negative battery cable. BATTERY DISCONNECT.

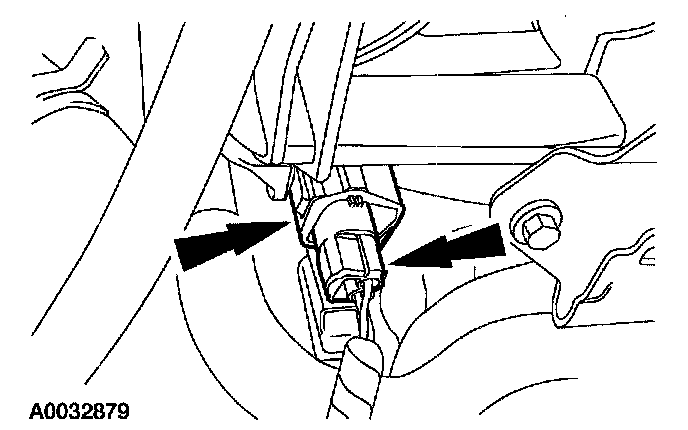

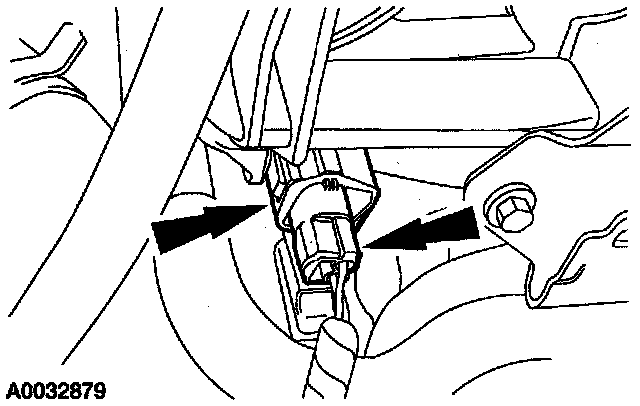

2. Disconnect the knock sensor (KS) electrical connector.

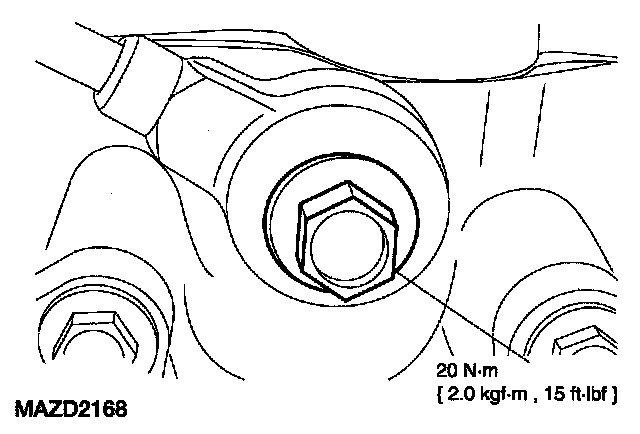

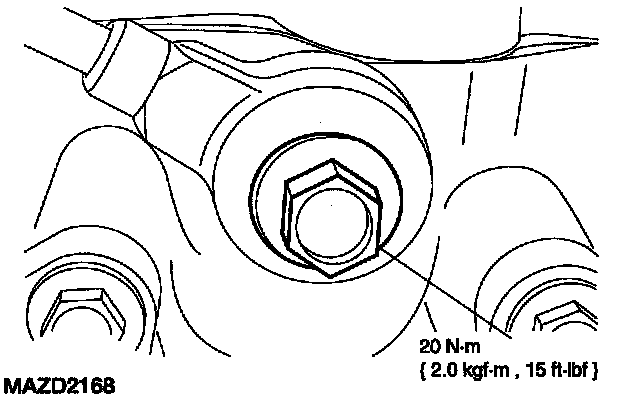

3. Remove the bolt and the KS.
4. To install, reverse the removal procedure.
