Mode 6 Data

Diagnostic Monitoring Test Results

The purpose of this test mode is to allow access to the results of OBD II monitor diagnostic test results. The test values that are stored at the time of the particular monitor completion are displayed when the particular test identification is requested. See the table for test information.

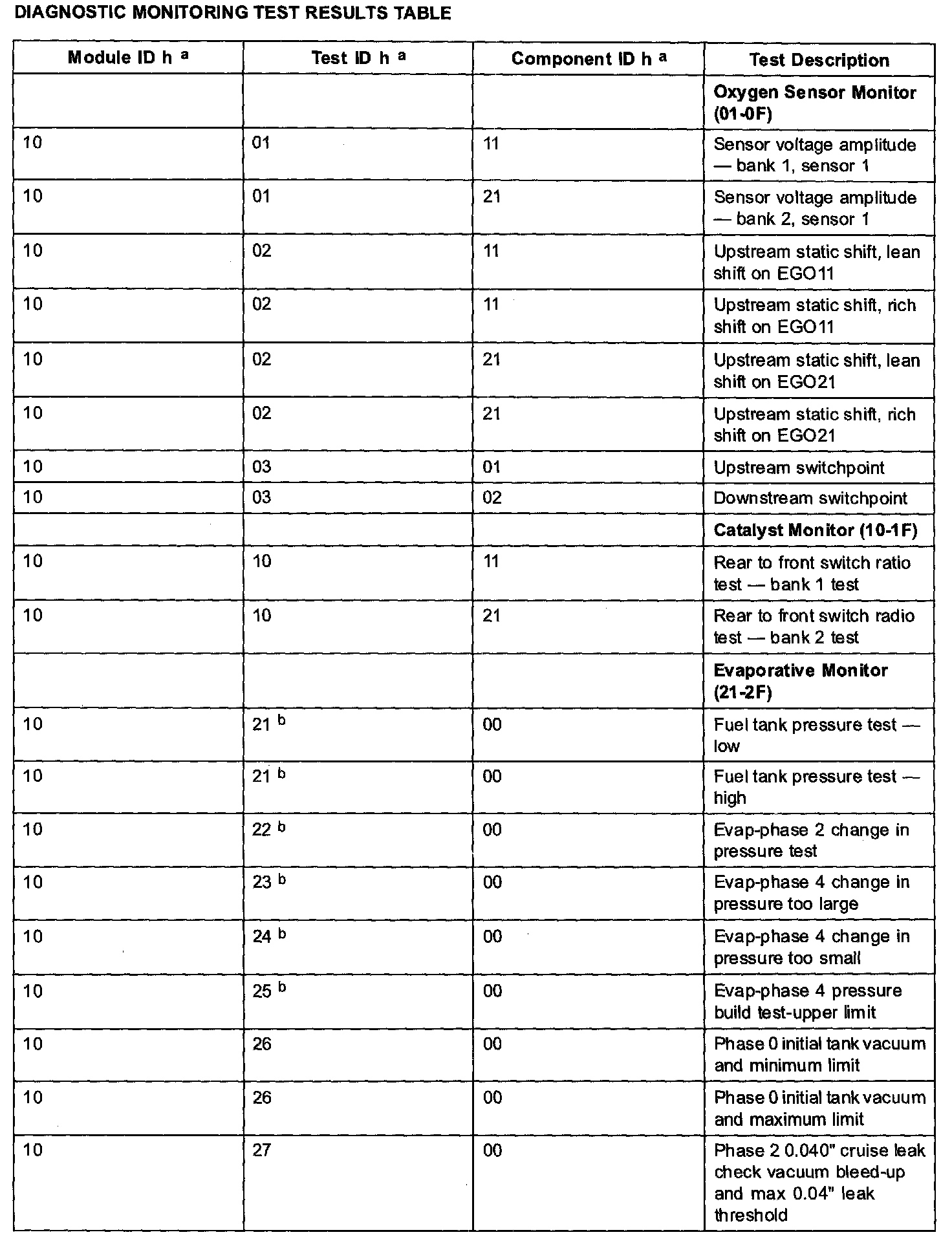

Diagnostic Monitoring Test Results Table (Part 1):

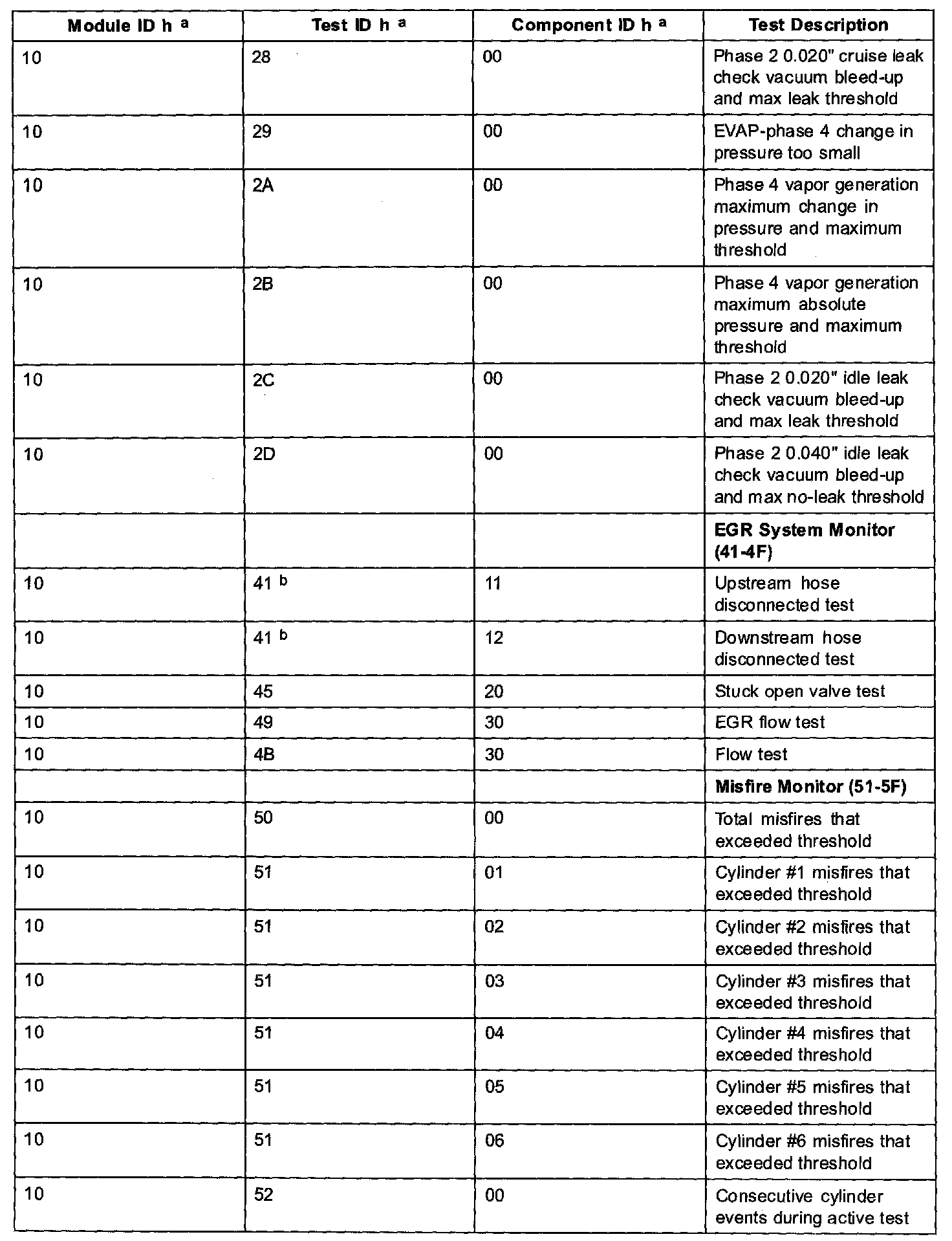

Diagnostic Monitoring Test Results Table (Part 2):

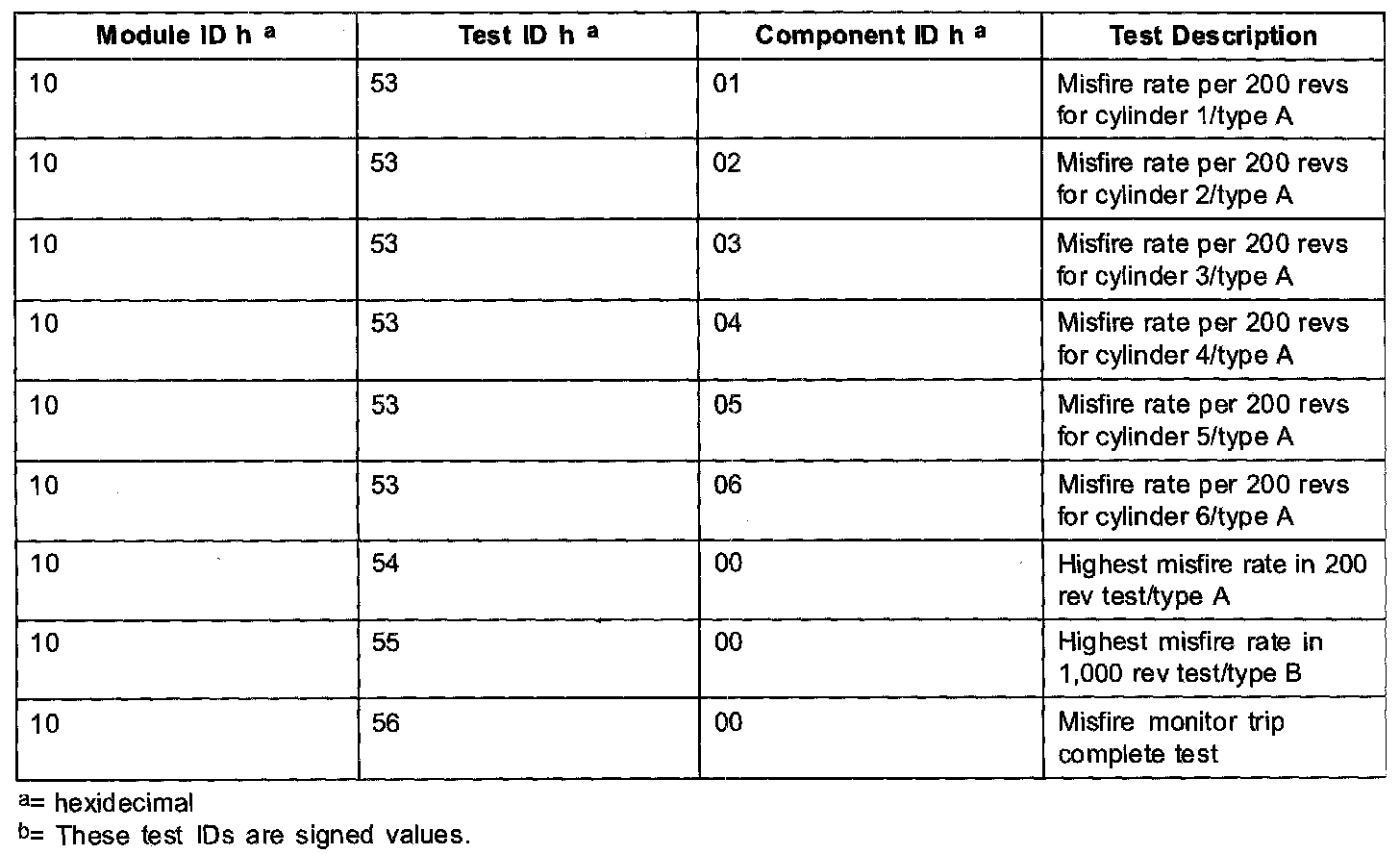

Diagnostic Monitoring Test Results Table (Part 3):

DIAGNOSTIC MONITORING TEST RESULTS TABLE

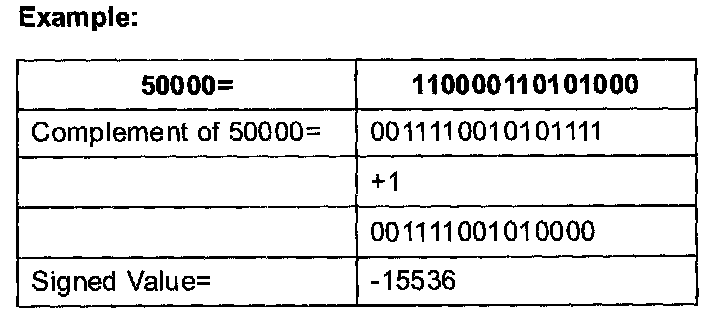

The conversion is done as follows: If the value is > 32767 then complement (change 0's to 1's and 1's to 0's), add 1 and a negative sign.
