Pinpoint Test 4: Intermittent

GENERAL PINPOINT TEST 4: INTERMITTENT

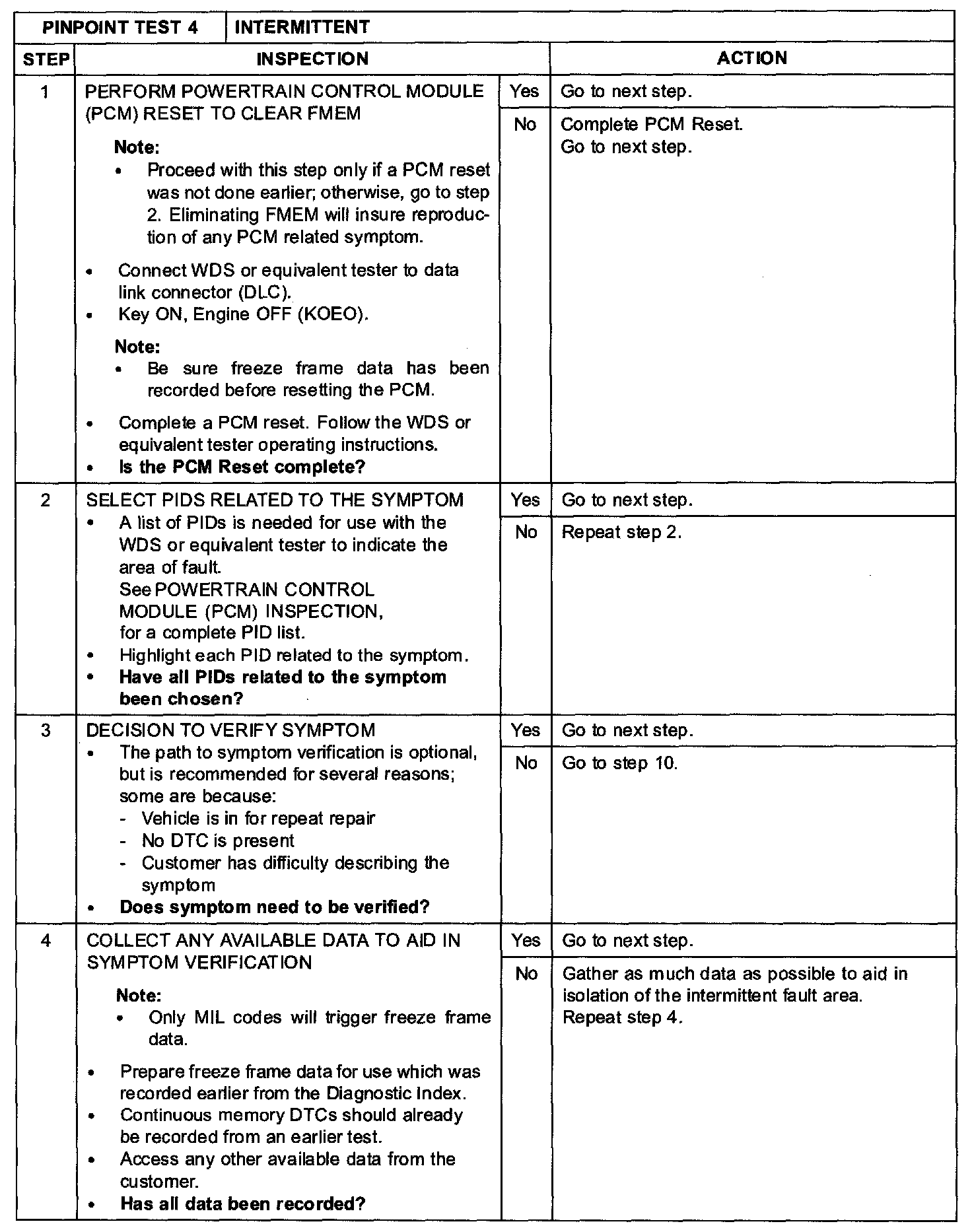

Step 1-Step 4:

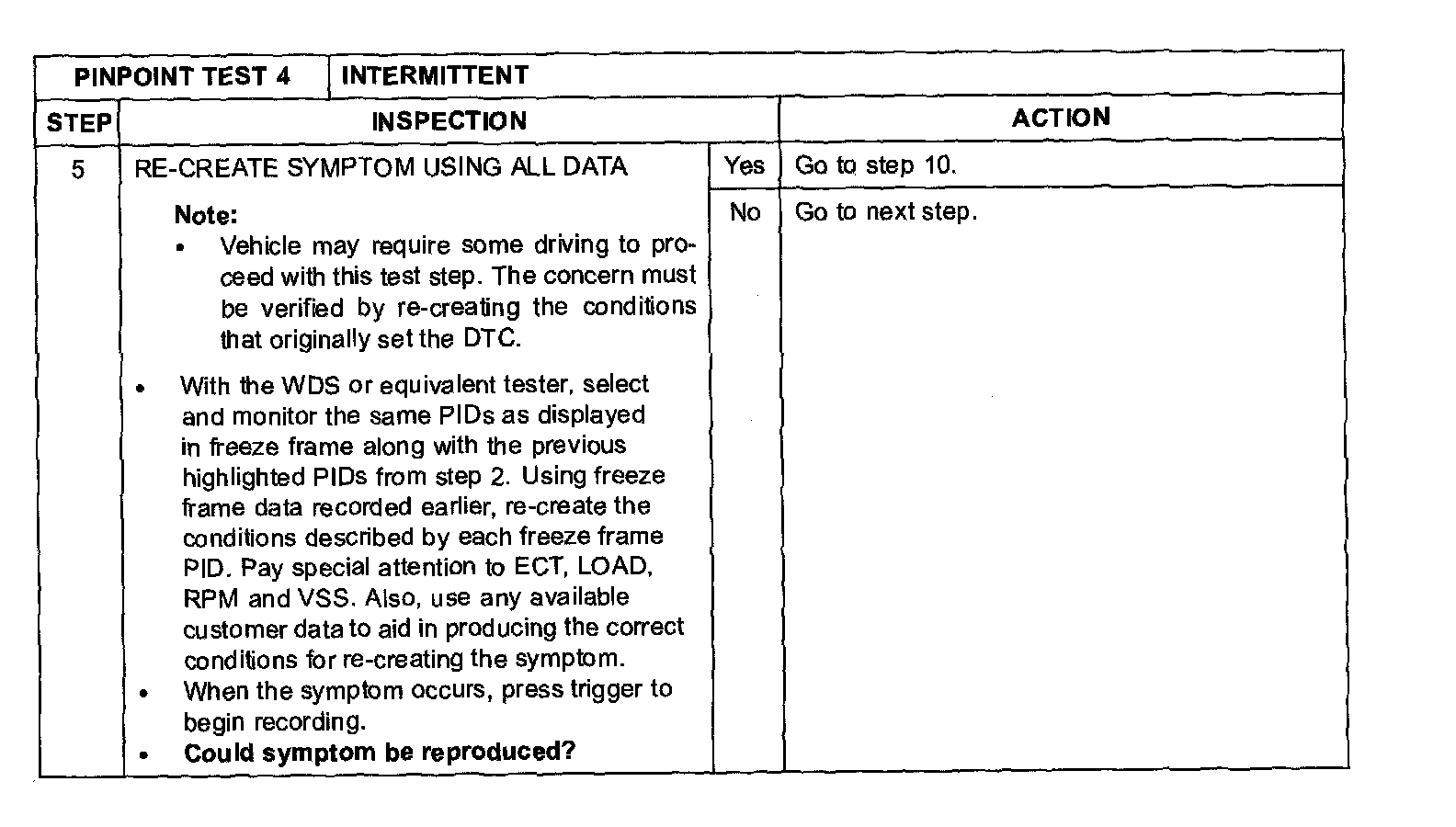

Step 5:

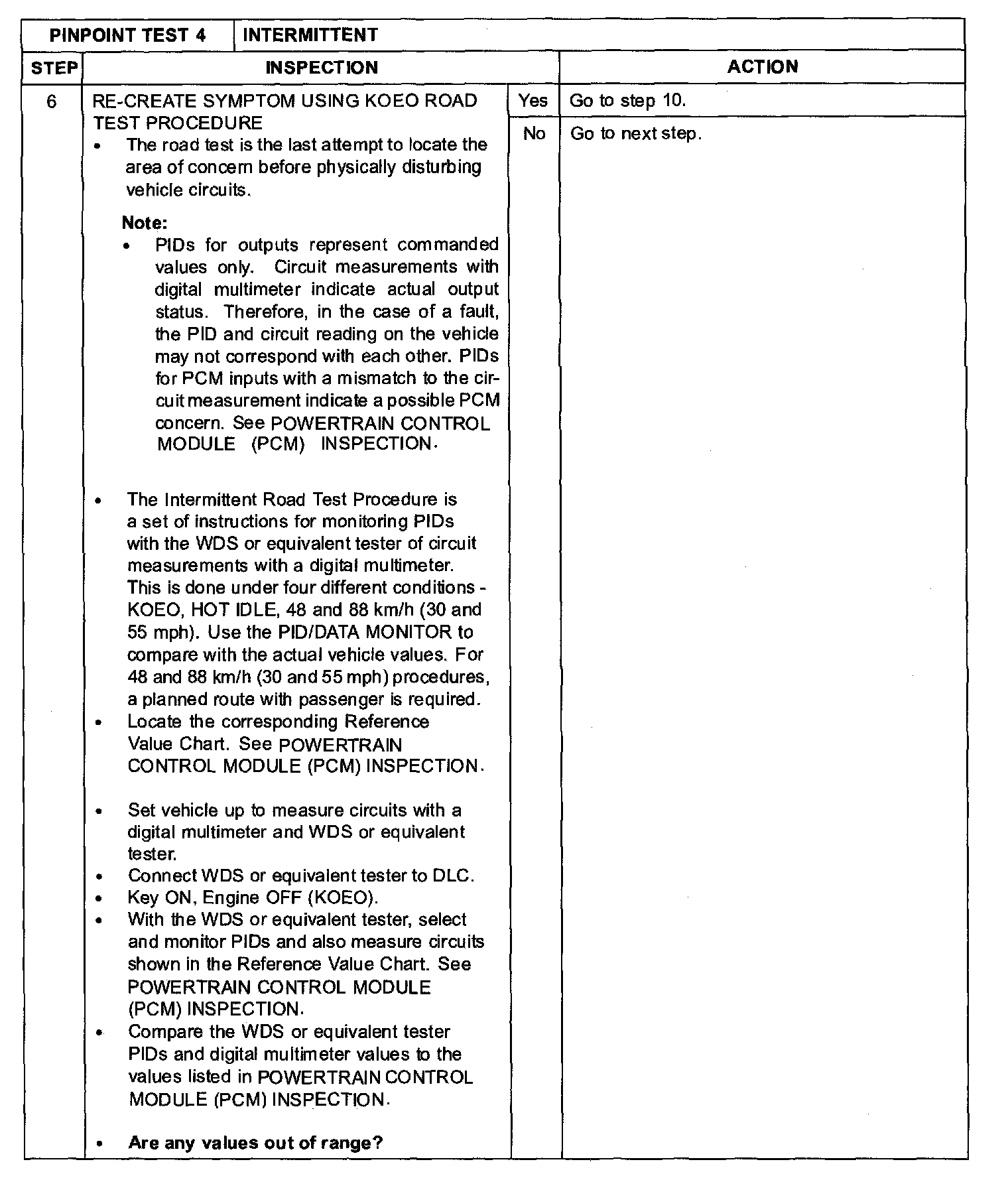

Step 6:

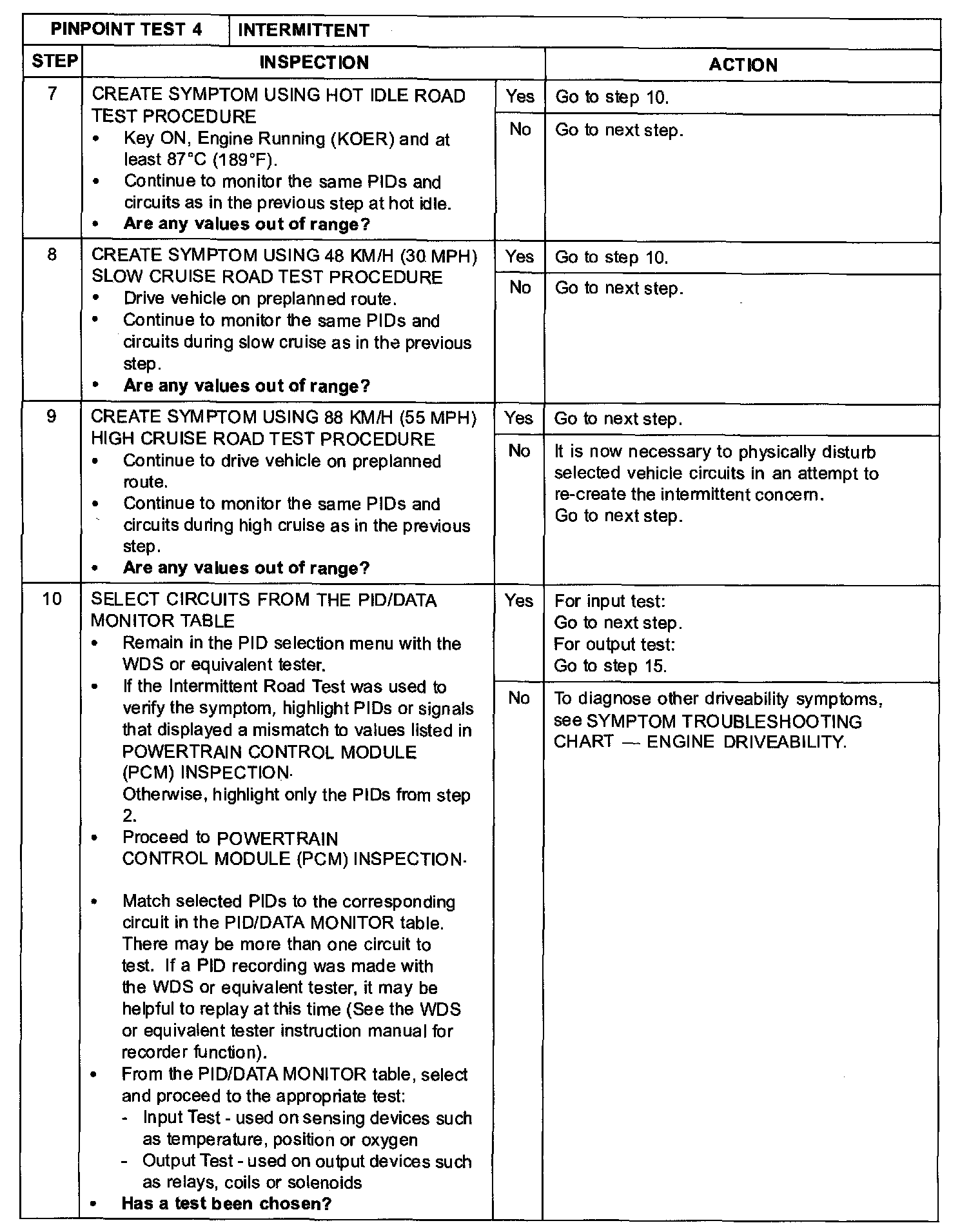

Step 7-Step 10:

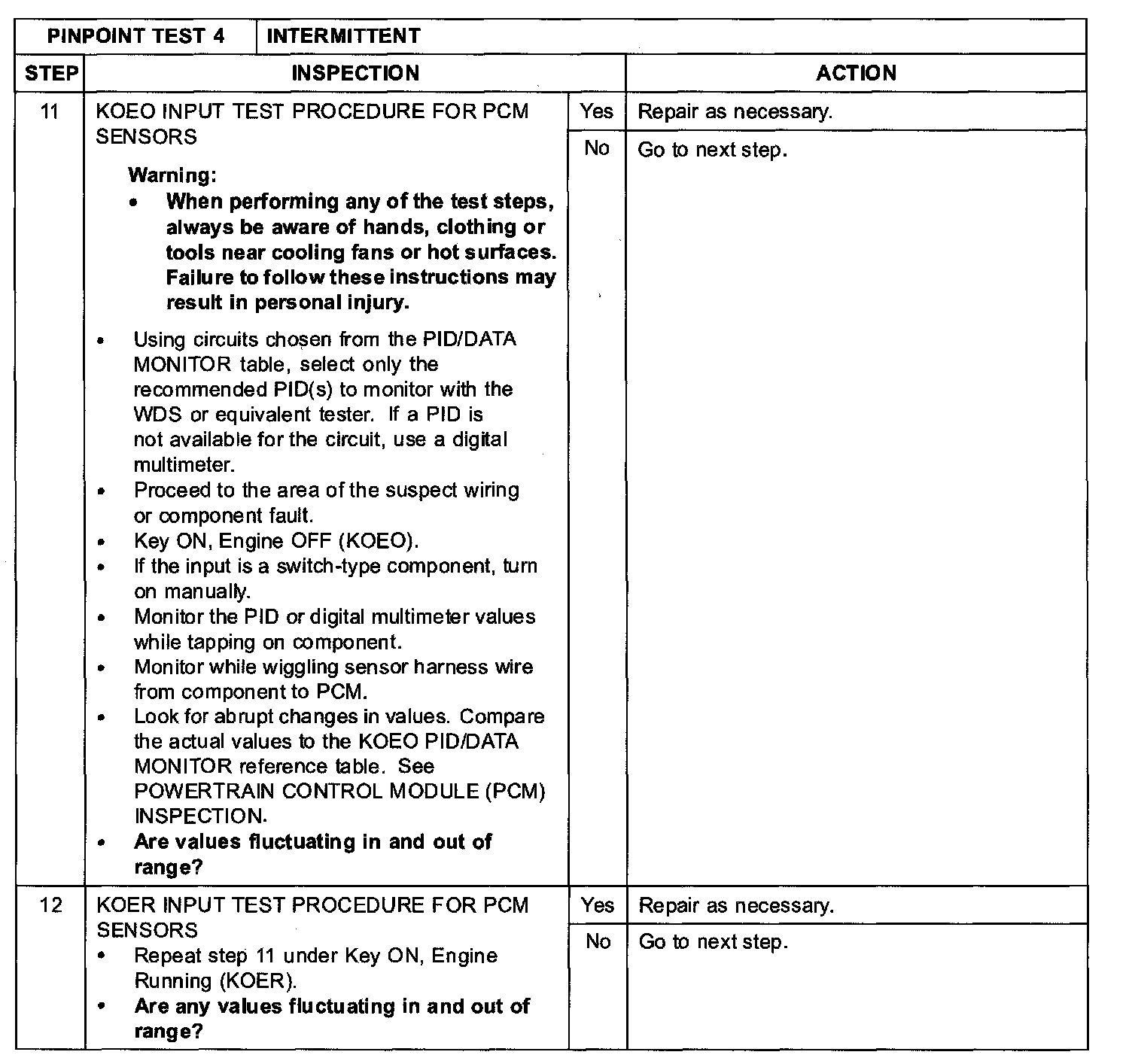

Step 11-Step 12:

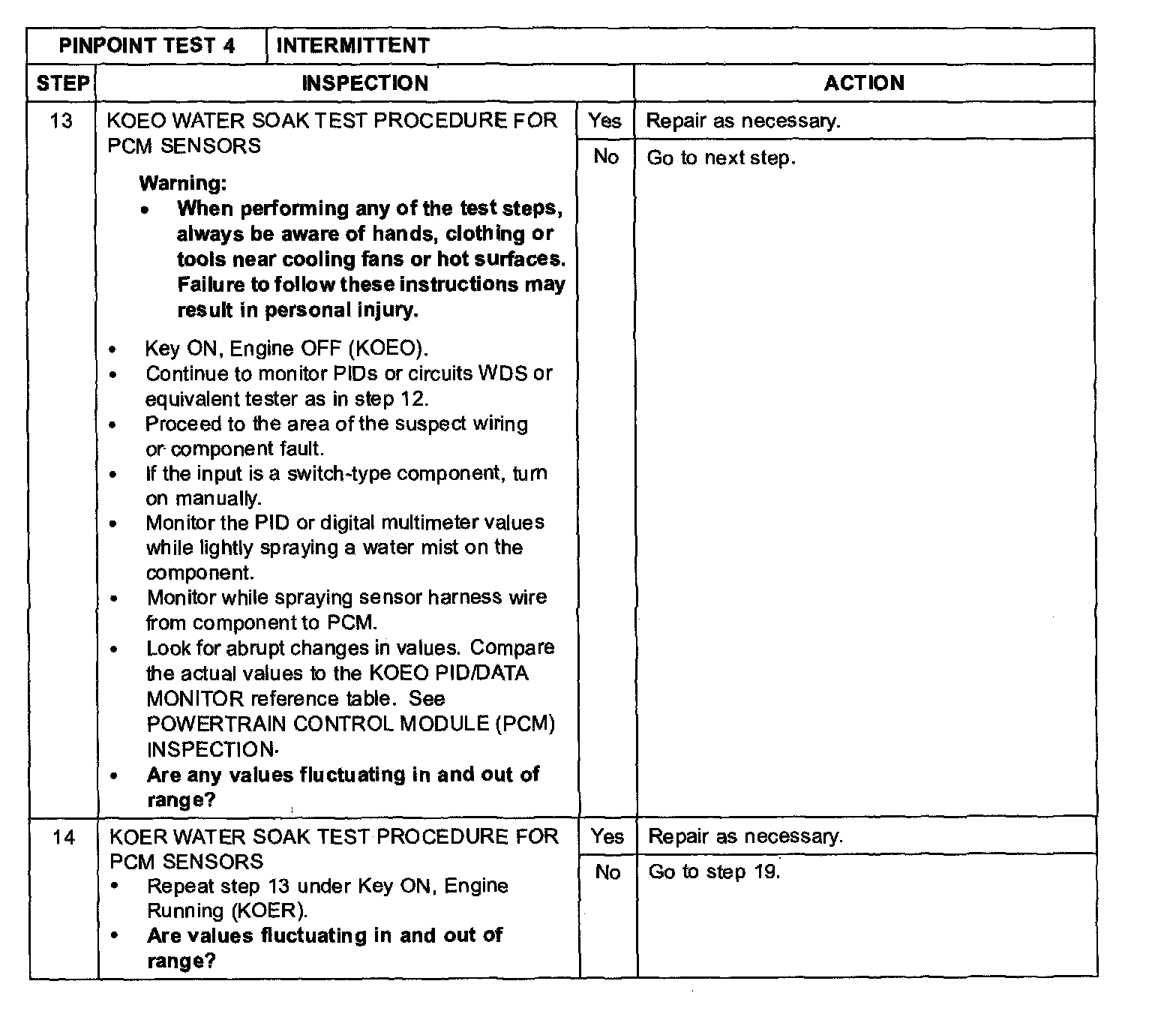

Step 13-Step 14:

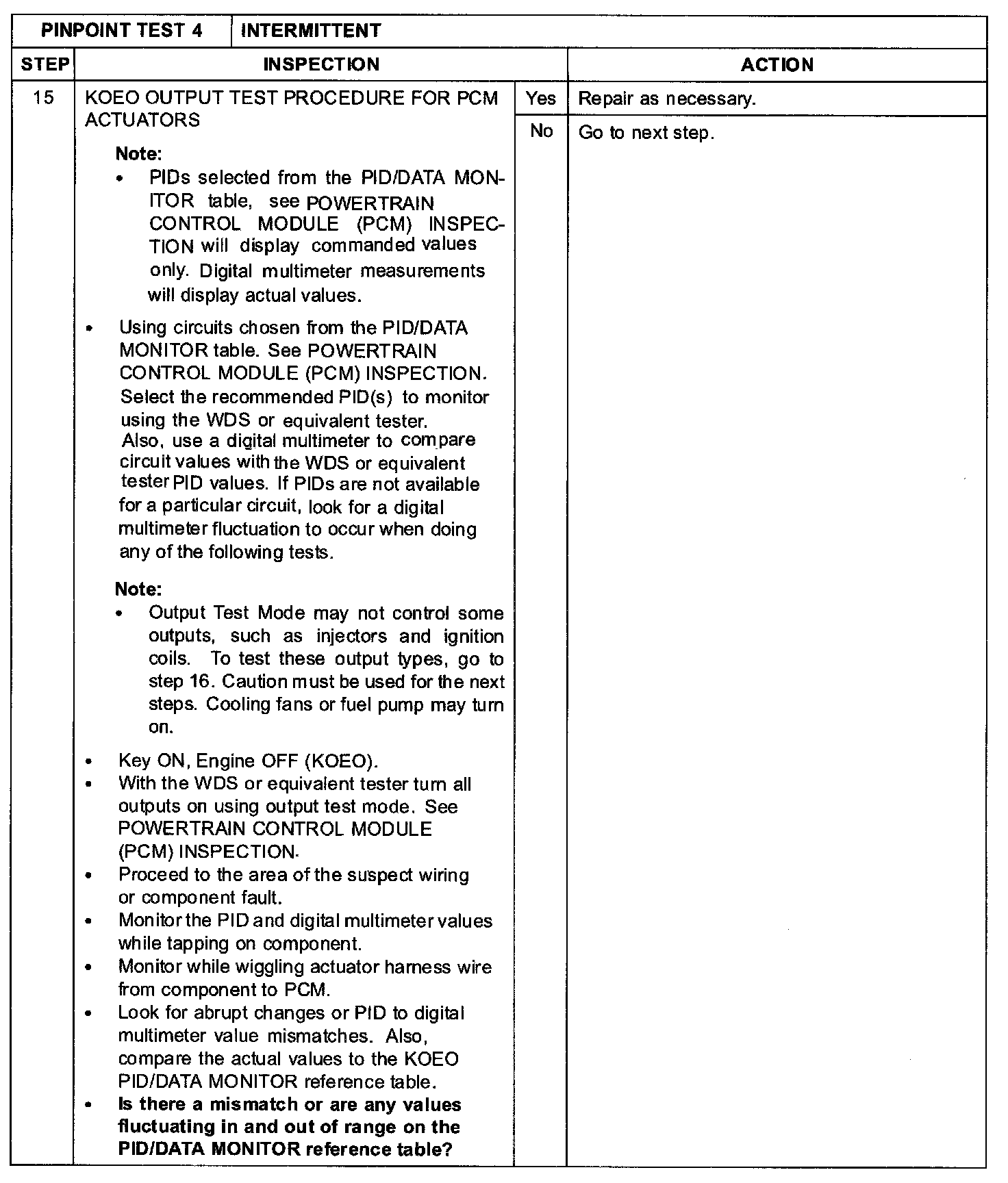

Step 15:

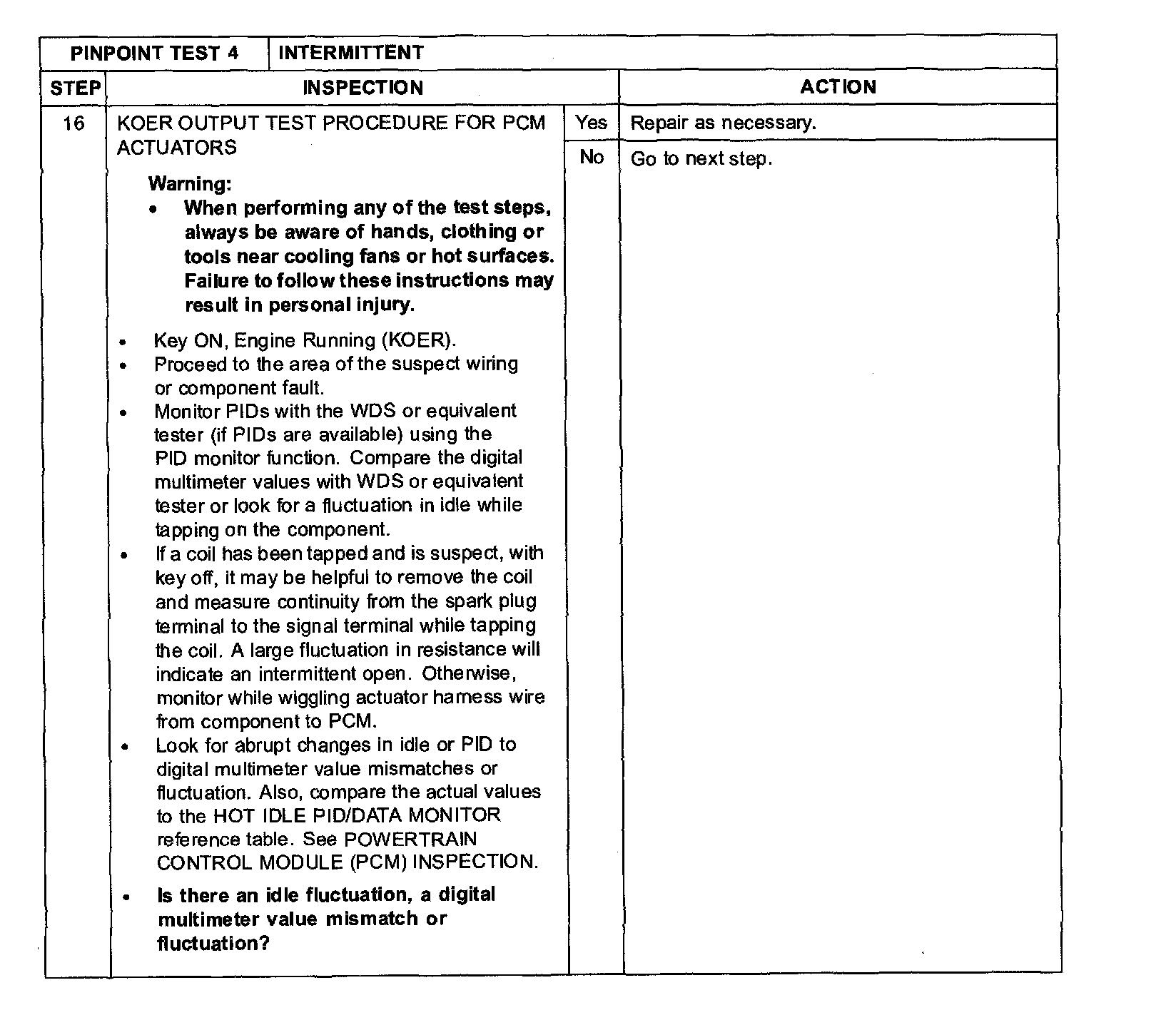

Step 16:

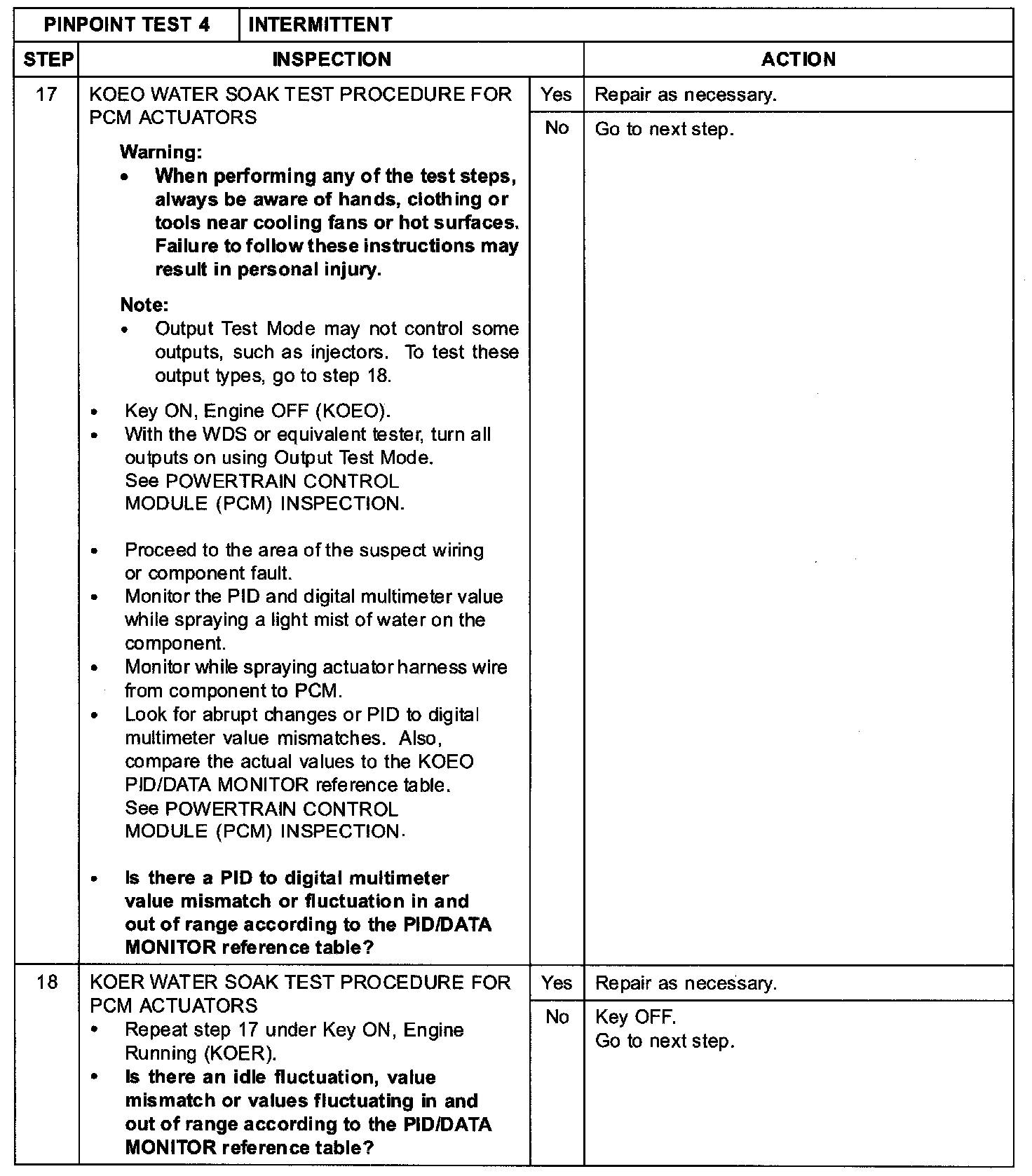

Step 17-Step 18:

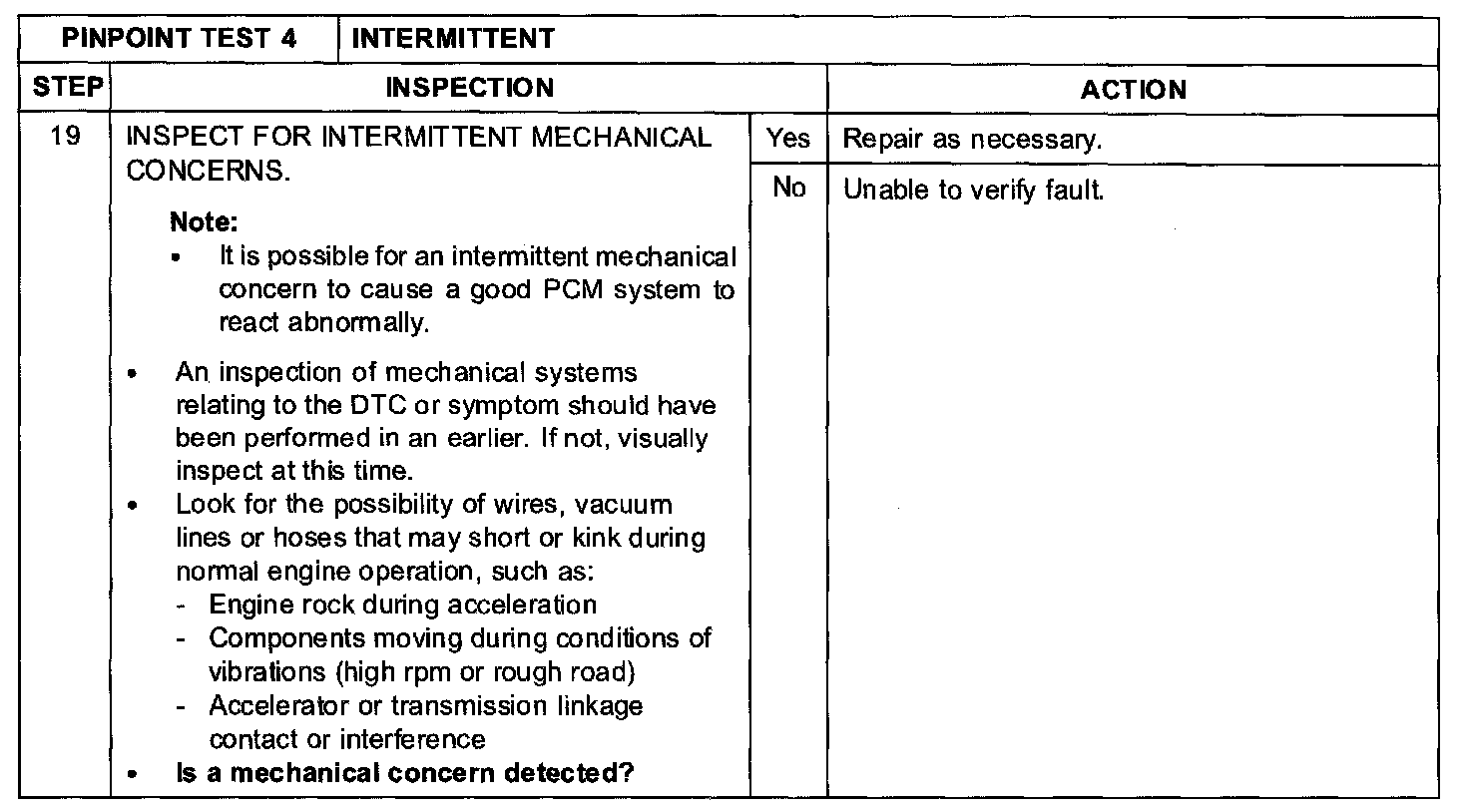

Step 19:

WARNING: When performing any of the test steps, always of hands, clothing or tools near cooling fabs or hot surfaces. Failure to follow these instructions may result in personal injury.
