PID/Data Monitor Item Table 1

PID/DATA MONITOR ITEM TABLE

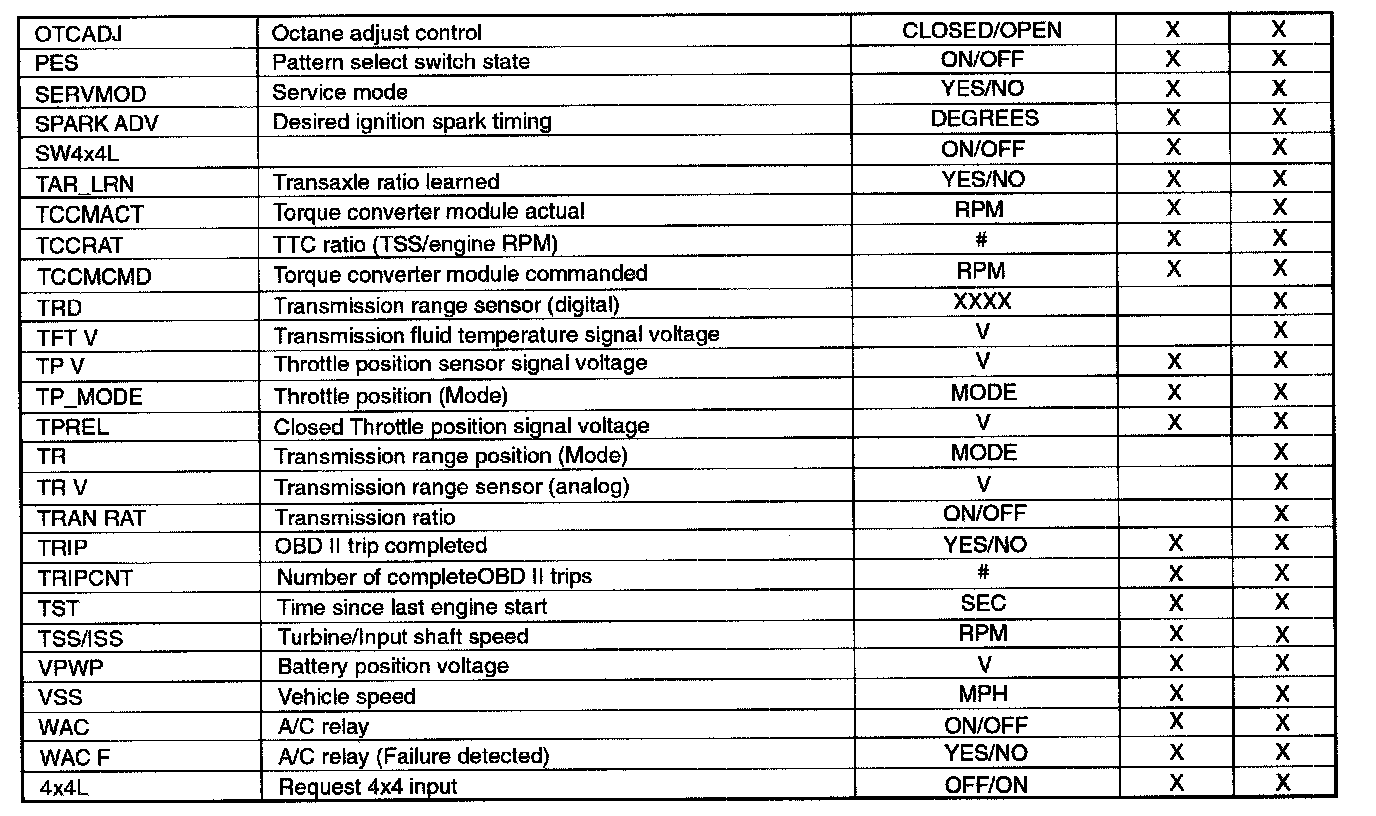

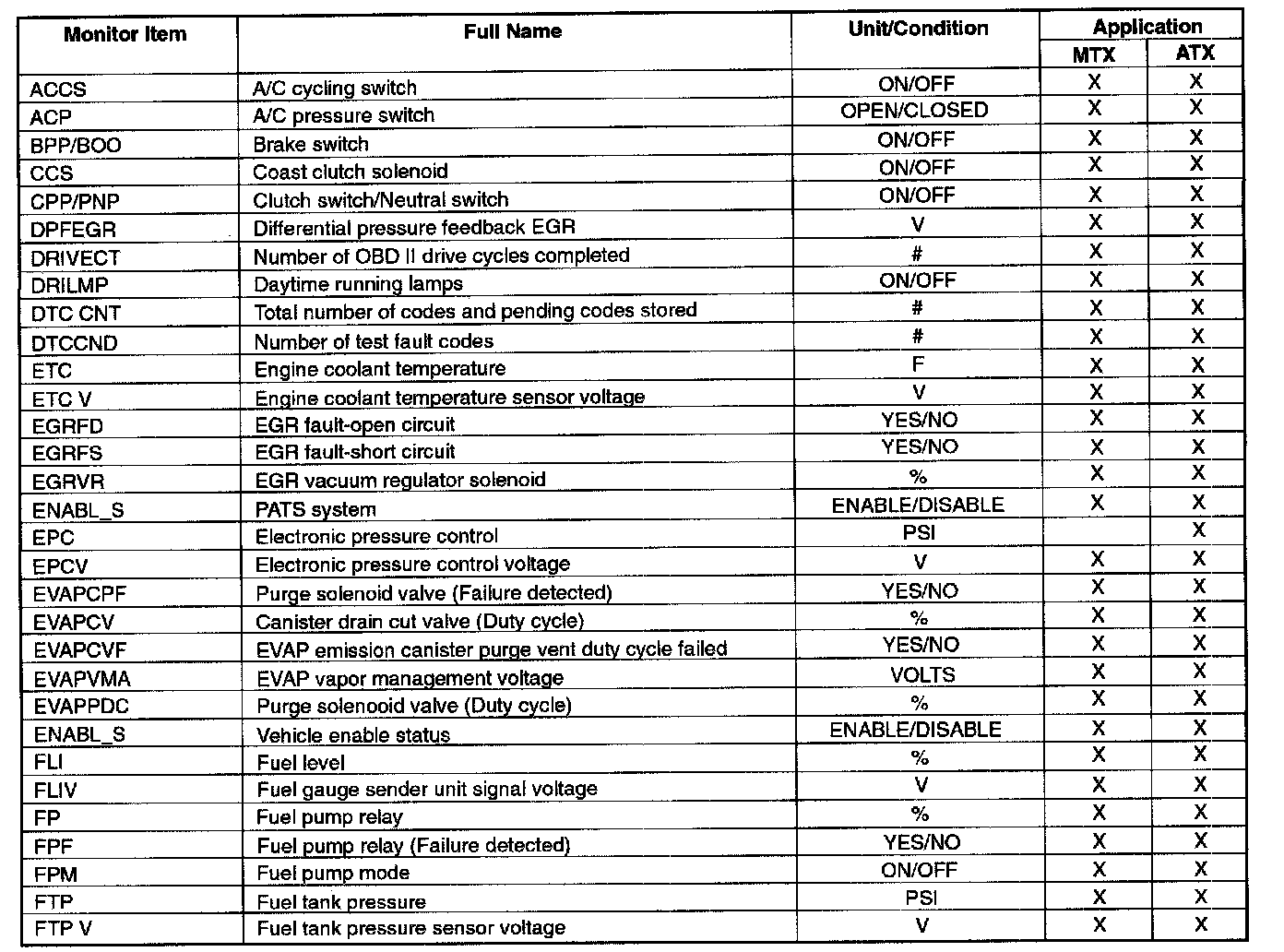

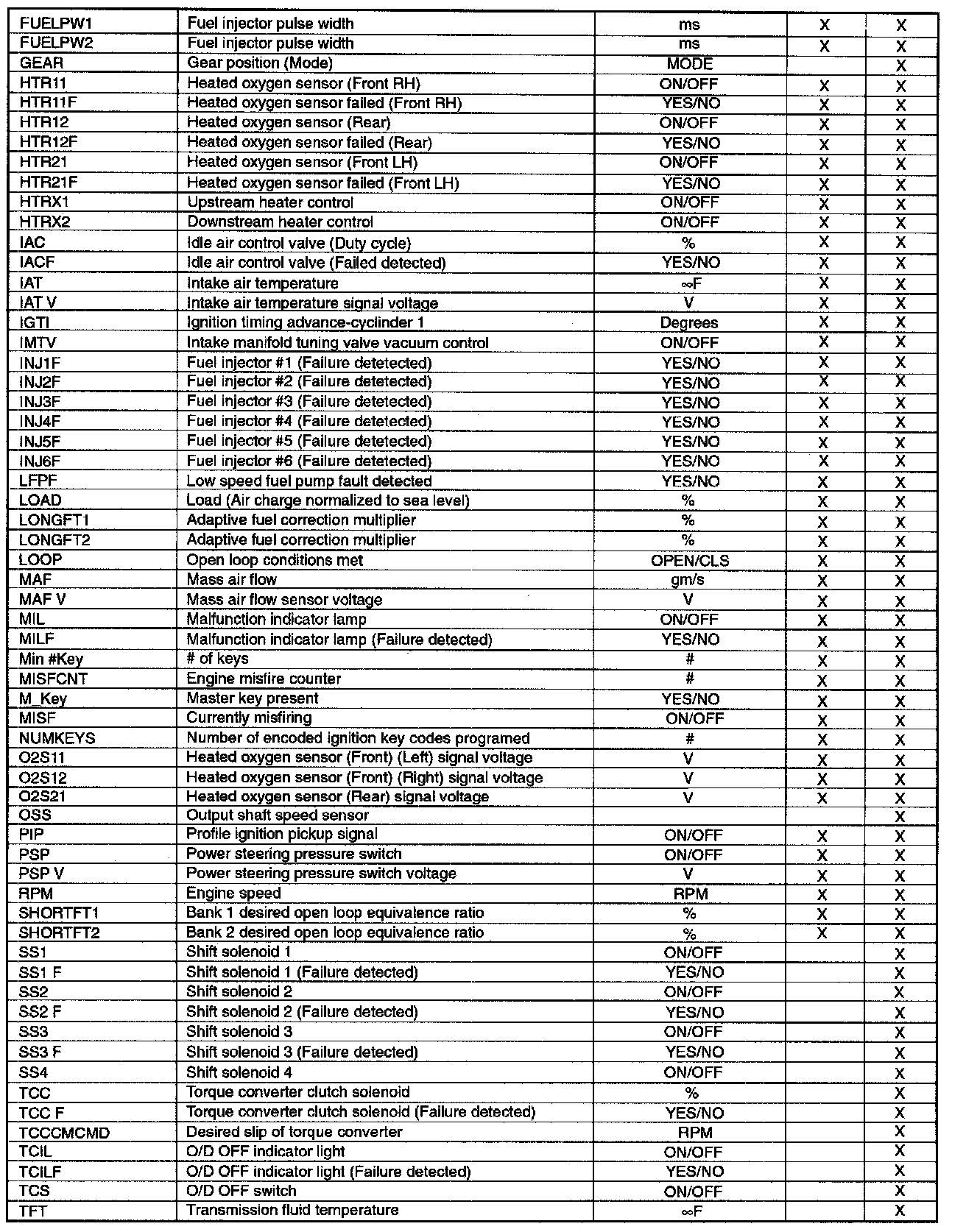

PID/DATA Monitor Table Part 1:




PID/DATA Monitor Table Part 2:




PID/DATA Monitor Table Part 3:




PID/DATA Monitor Table Part 4:

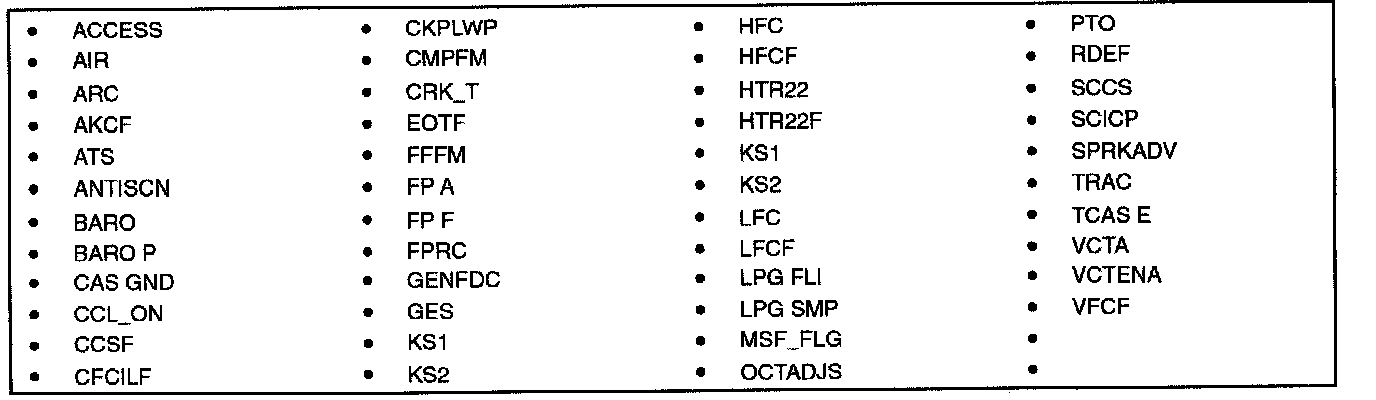

NOTE: The PIDs may display on the IDS or equivalent tester, but they are not used for inspection, because the devices are not applied for in this model.
