Backfires

Description:

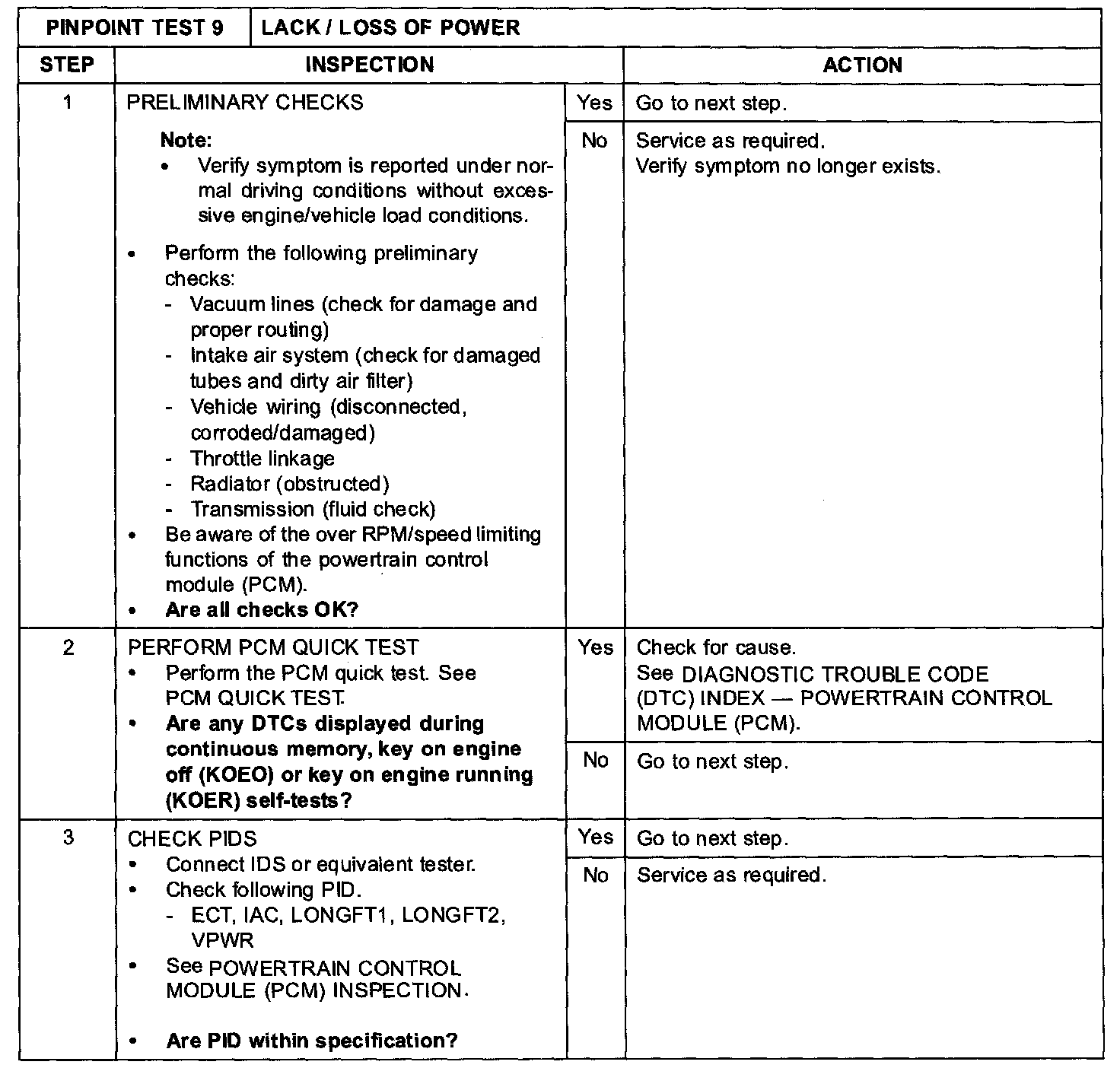

Step 1:

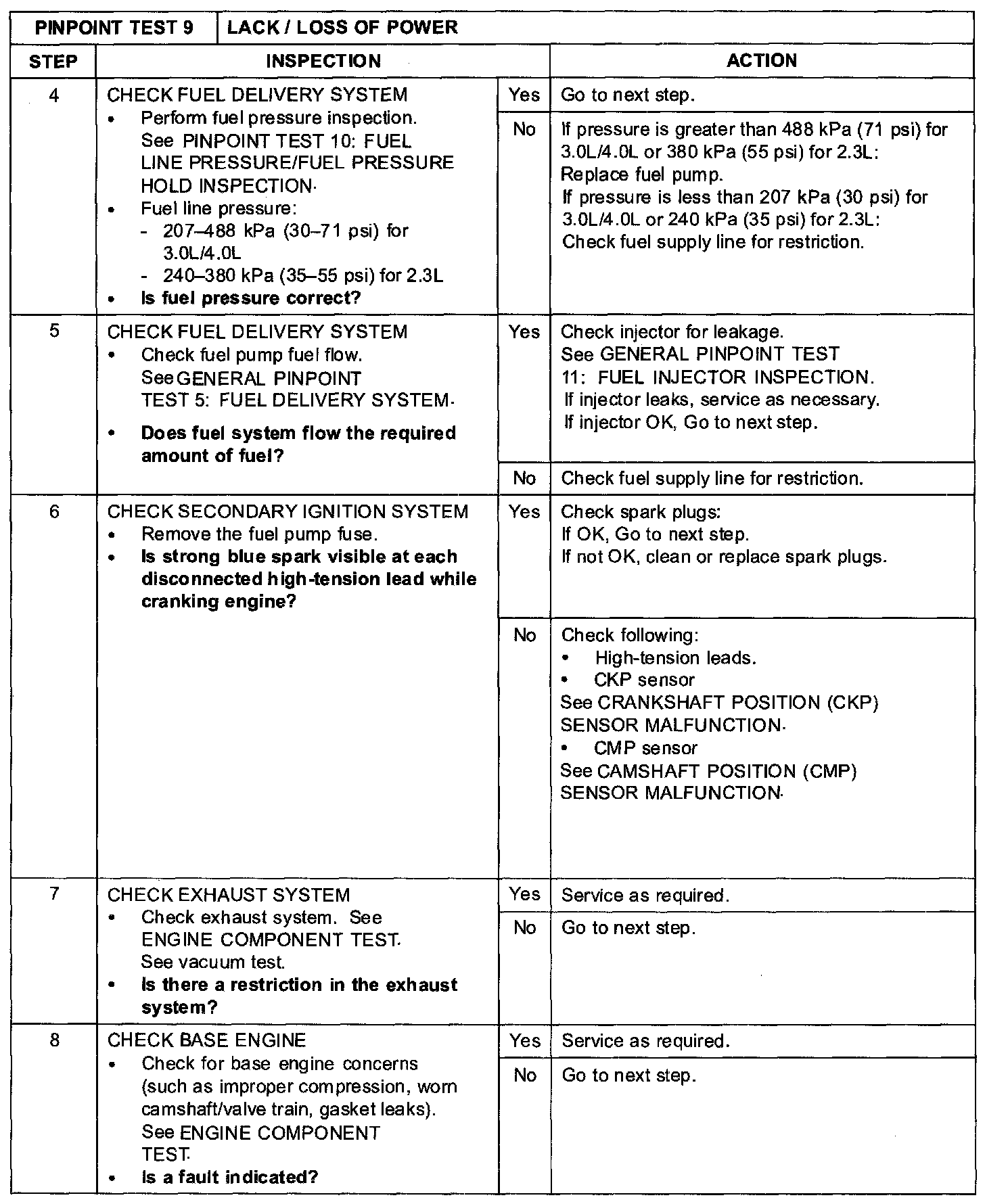

Step 2-Step 8:



Description:



Step 1-Step 3:



Step 4-Step 8:

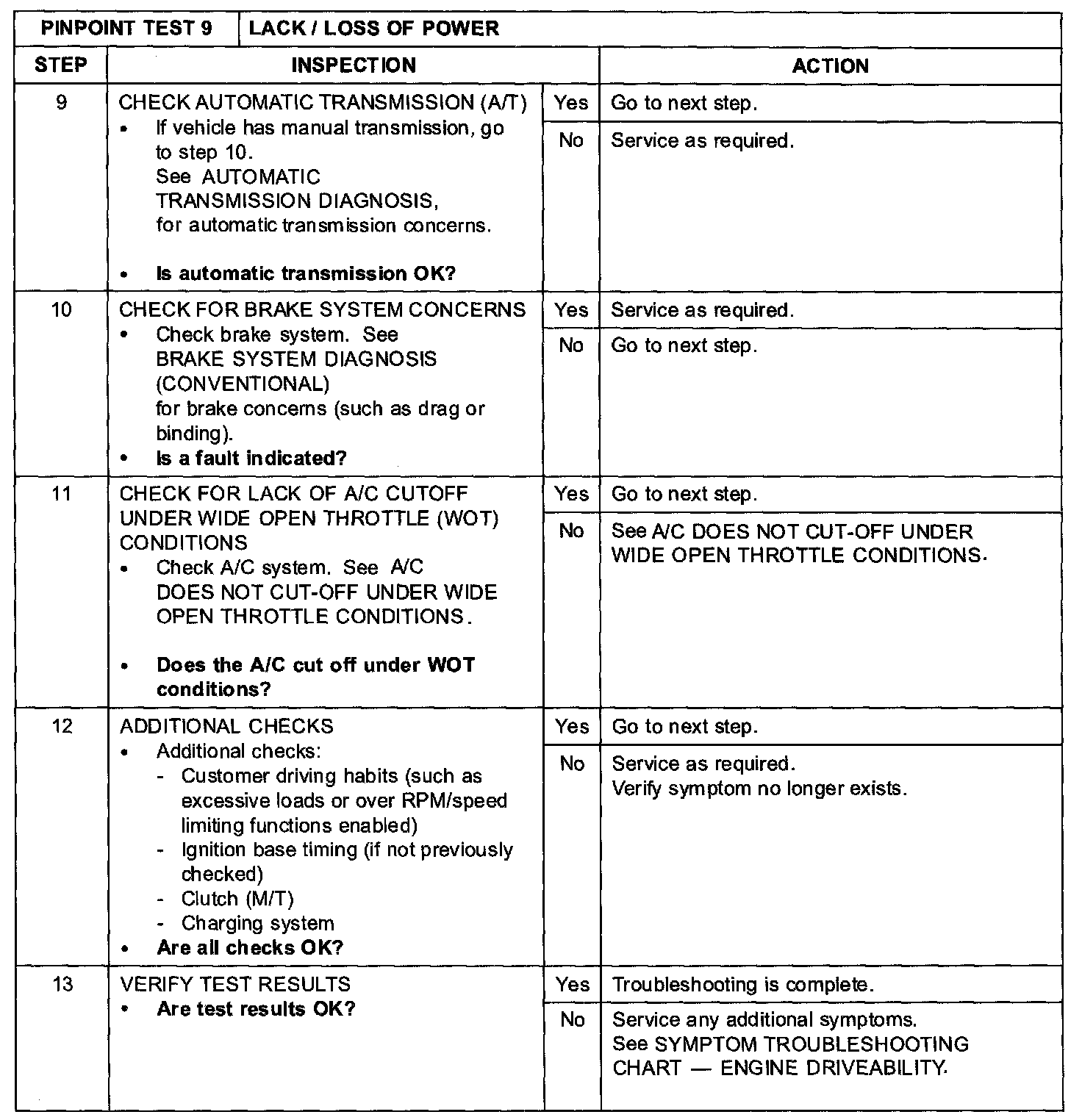

Step 9-Step 13:
