Symptom Troubleshooting Chart - Engine Driveability

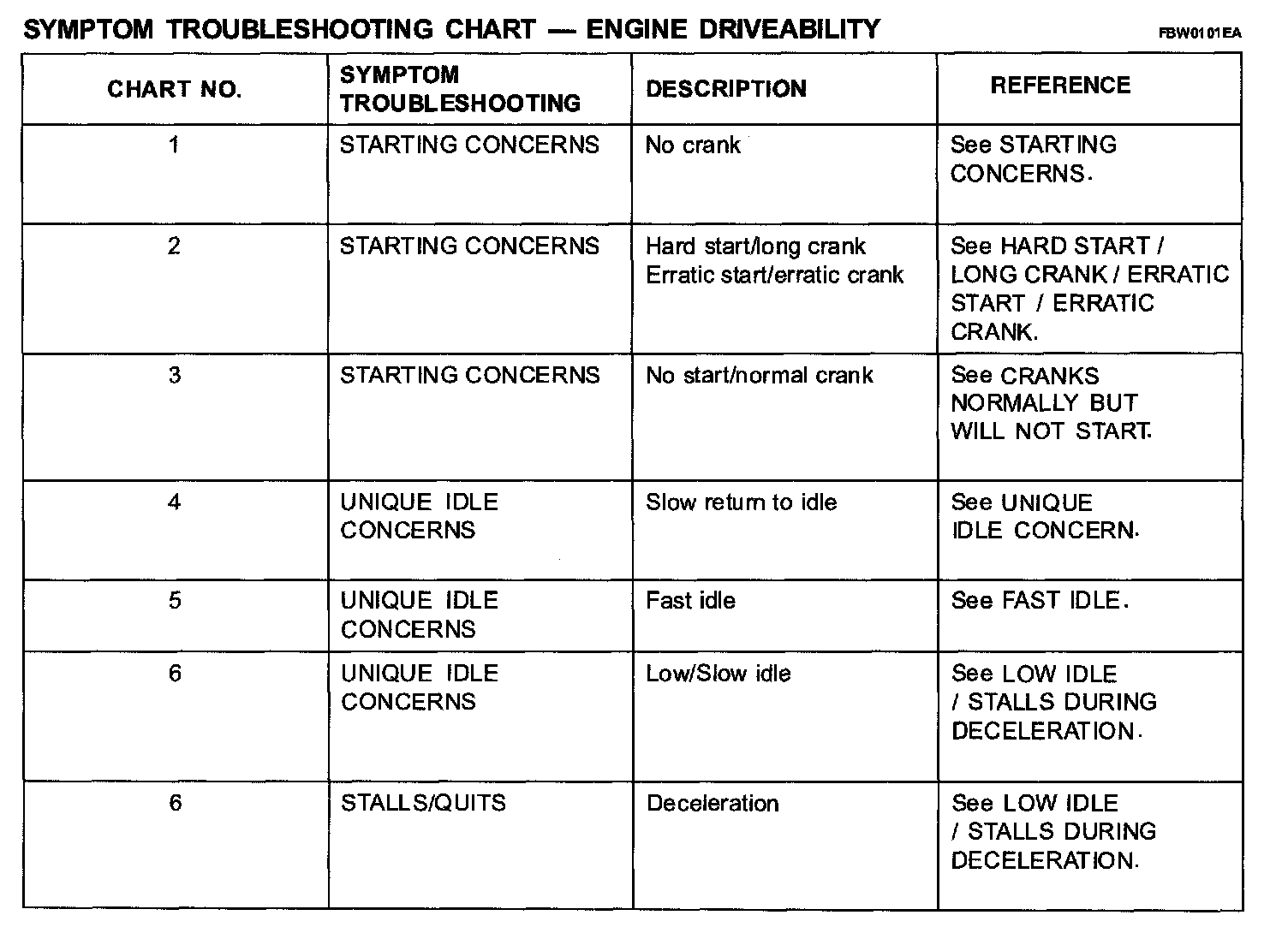

No. 1 - 6:

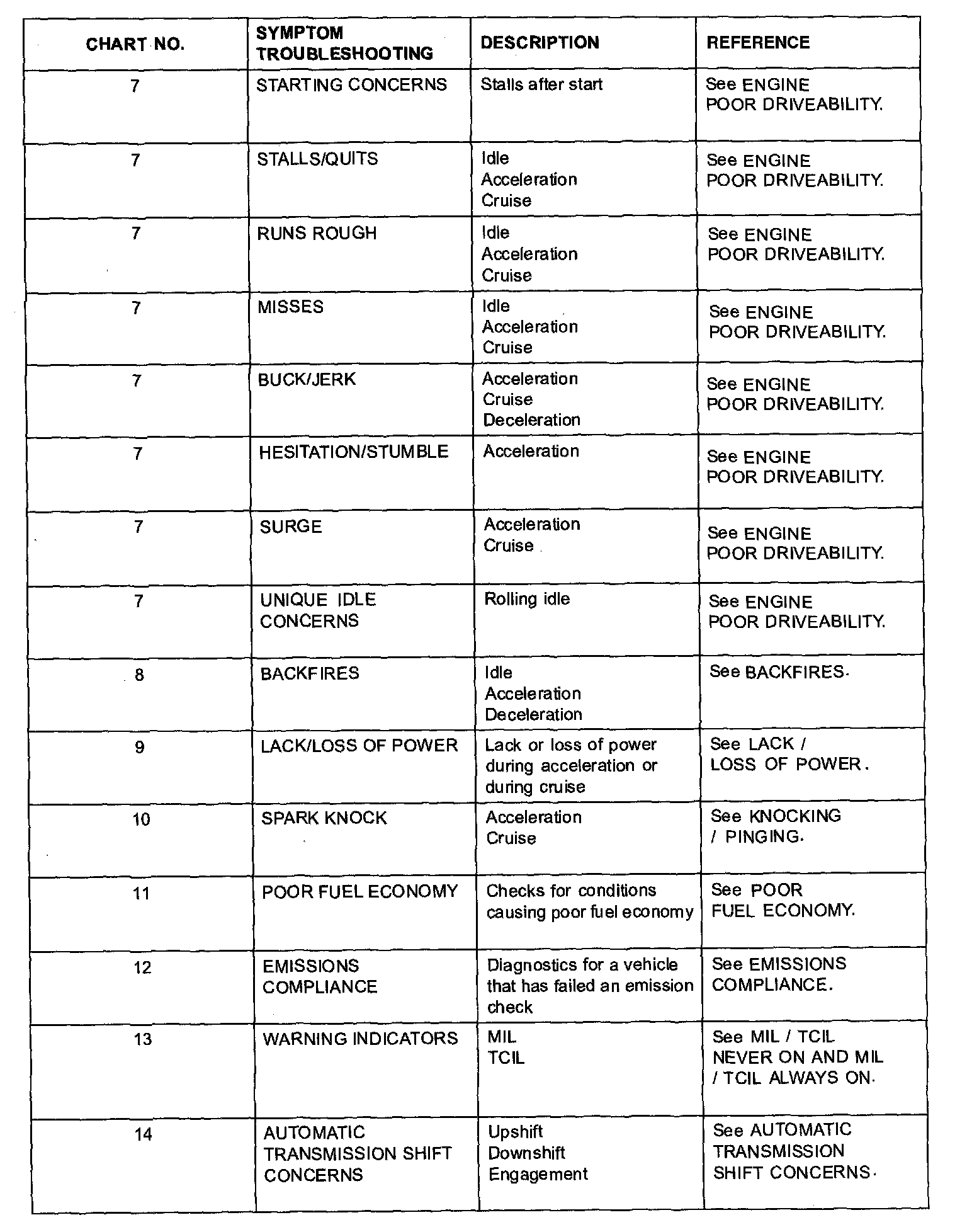

No. 7 - 14:

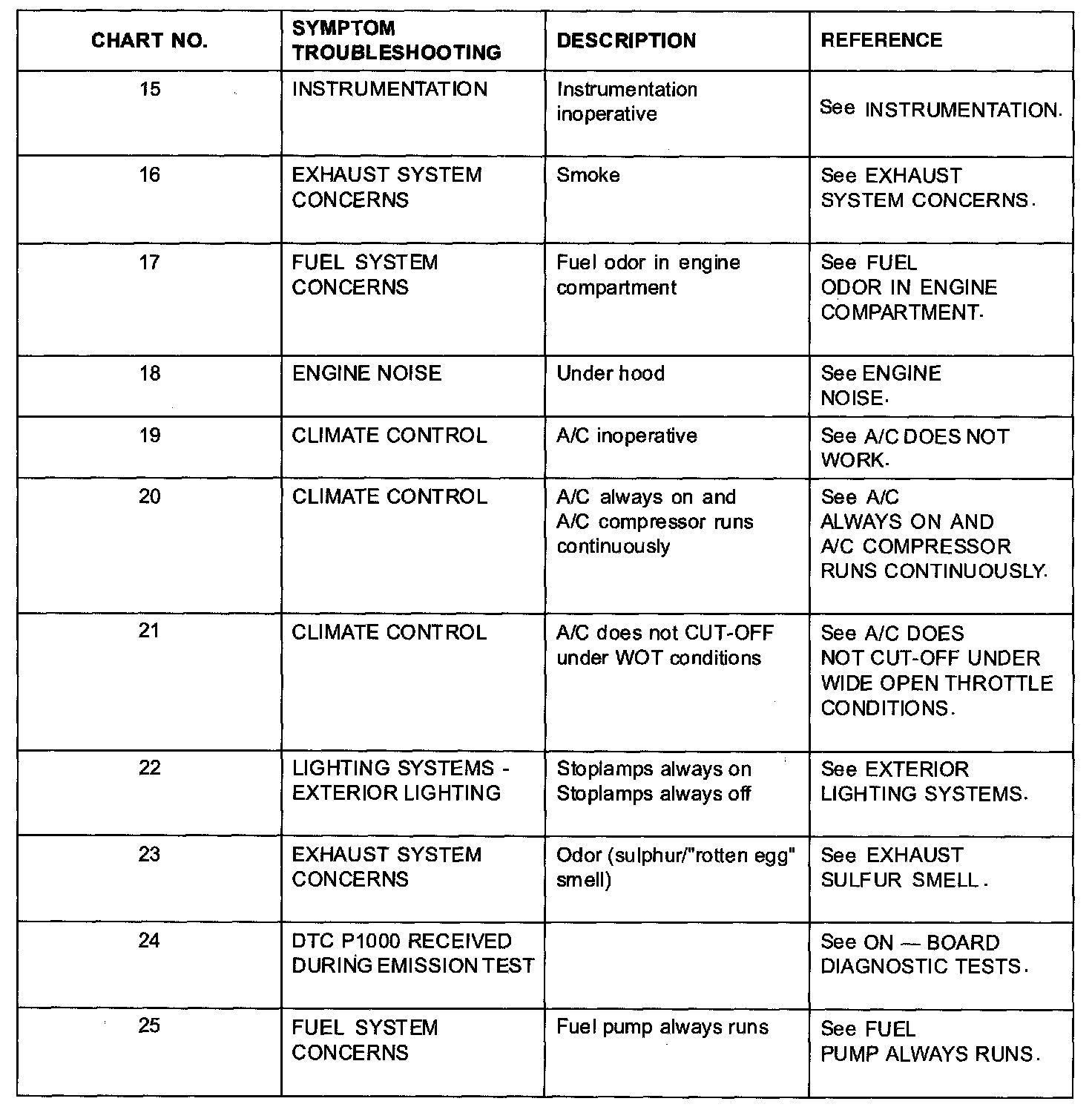

No. 15 - 25:

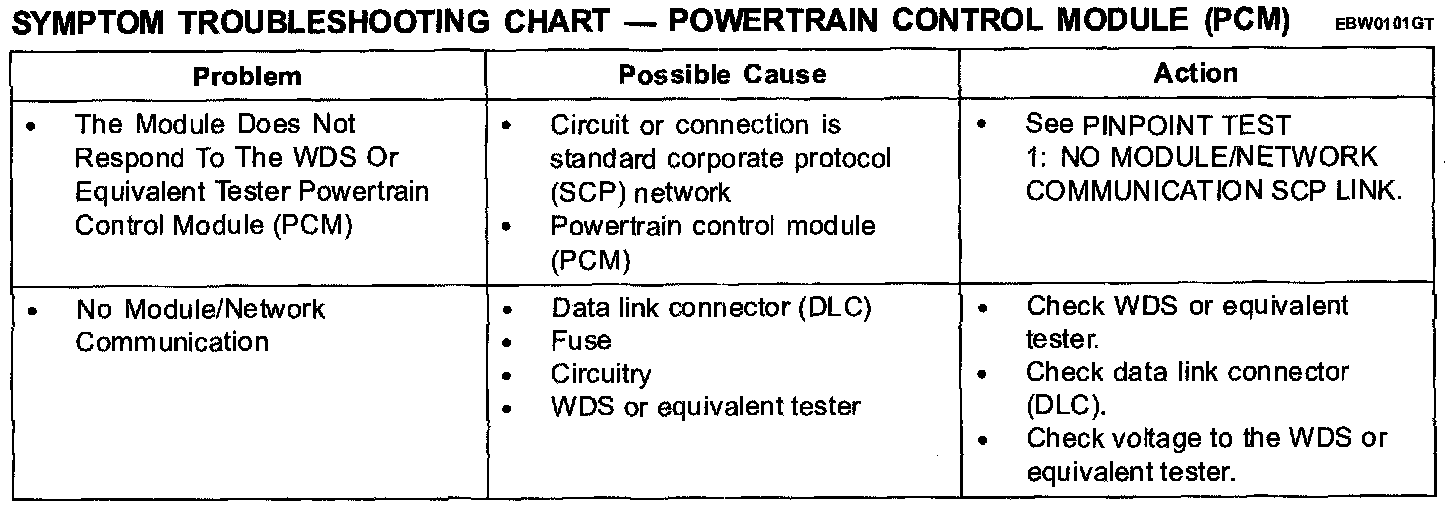

Symptom Troubleshooting Chart - Powertrain Control Module (PCM):
